A9413341 SHELL-TYPE CASES G 190, Vers. I
Przewiń

A9413341

SHELL-TYPE CASES G 190, Vers. I

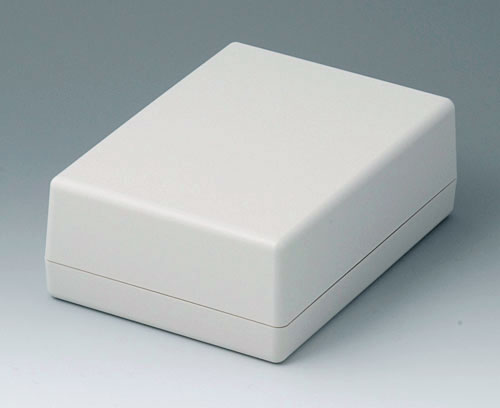

Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9413341

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "protection"

A9113150 Contact-strips V, O, G 190

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Zamknij

A9113150

Contact-strips V, O, G 190
produkt został dodany do twojej listy
Aluminium
A9113630 Sealing kit G 190

A9113630

Sealing kit G 190 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Zamknij

A9113630

Sealing kit G 190
produkt został dodany do twojej listy

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Zamknij

A9204108

Wall mounting brackets
produkt został dodany do twojej listy
PA 6
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Zamknij

B1360048

Wall suspension elements
produkt został dodany do twojej listy
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9210290

Anti-slide feet 9.5 x 3.8 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla A9413341

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
138 mm
Depth
190 mm
Height
68 mm
PCB length, base
180 mm
PCB width, base
118 mm
PCB length, top
179 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
295 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
