C6009161 SMART-BOX WIDTH 90
Przewiń

C6009161

SMART-BOX WIDTH 90

Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply

1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for C6009161

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "protection"

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2306917

Pressure equalisation element M6x0.75
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2310917

Pressure equalisation element M10x1
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zamknij

C2316147

Cable grommet
produkt został dodany do twojej listy
TPE
light grey RAL 7035
IP 67
C6100006 Security plug

C6100006

Security plug For use with lead tags.

Supply 1 plug

Zamknij

C6100006

Security plug
produkt został dodany do twojej listy
PA 6
red

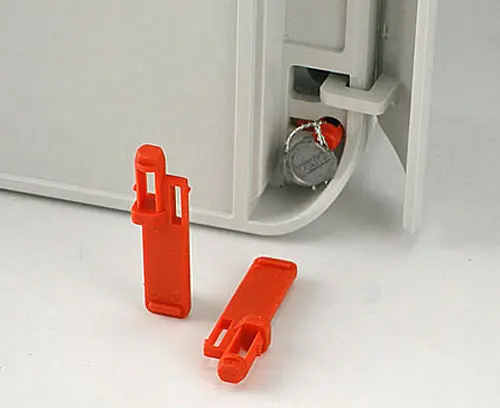

C6100016 Set of security

C6100016

Set of security For use with lead tags.

Supply 2 plugs

Zamknij

C6100016

Set of security
produkt został dodany do twojej listy
PA 6
red

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Zamknij

C2299018

Case feet
produkt został dodany do twojej listy
TPE (UL 94 HB)

Opcje dostosowywania dla C6009161

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Przykłady aplikacji
  • Dane zakupowe
Materiał
ASA+PC (UL 94 V-0)
Protection class
IP 66
Kolor
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
160 mm
Width
90 mm
Height
50 mm
PCB length, base
121 mm
PCB width, base
81 mm
PCB length, top
118 mm
PCB width, top
79 mm
Keypad length
115,2 mm
Keypad width
81,9 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
200 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
