A9167017 Belt/pocket clip
Przewiń

A9167017

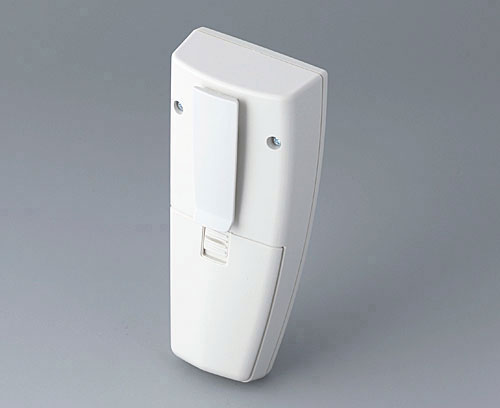

Belt/pocket clip

Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 Clip, assembly kit

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9167017

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
A9066107 SMART-CASE M, Vers. I

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066107

SMART-CASE M, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066117

SMART-CASE M, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066127 SMART-CASE M, Vers. III

A9066127

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066127

SMART-CASE M, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066137 SMART-CASE M, Vers. IV

A9066137

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066137

SMART-CASE M, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066147 SMART-CASE M, Vers. V

A9066147

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066147

SMART-CASE M, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066317 SMART-CASE M, Vers. VI

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066317

SMART-CASE M, Vers. VI
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9067107 SMART-CASE L, Vers. I

A9067107

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9067107

SMART-CASE L, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 40
A9067117 SMART-CASE L, Vers. II

A9067117

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9067117

SMART-CASE L, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40
A9067127 SMART-CASE L, Vers. III

A9067127

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067127

SMART-CASE L, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40
A9067137 SMART-CASE L, Vers. IV

A9067137

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067137

SMART-CASE L, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40
A9067147 SMART-CASE L, Vers. V

A9067147

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067147

SMART-CASE L, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40
A9068107 SMART-CASE XL, Vers. I

A9068107

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9068107

SMART-CASE XL, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
168x74,4x35,4mm
IP 40
A9068117 SMART-CASE XL, Vers. II

A9068117

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9068117

SMART-CASE XL, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
168x74,4x35,4mm
IP 65 opt., IP 40
A9068127 SMART-CASE XL, Vers. III

A9068127

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068127

SMART-CASE XL, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
168x74,4x35,4mm
IP 65 opt., IP 40
A9068137 SMART-CASE XL, Vers. IV

A9068137

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068137

SMART-CASE XL, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
168x74,4x35,4mm
IP 65 opt., IP 40
A9068147 SMART-CASE XL, Vers. V

A9068147

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068147

SMART-CASE XL, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
168x74,4x35,4mm
IP 65 opt., IP 40

Opcje dostosowywania dla A9167017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PA 6 (UL 94 HB)
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
