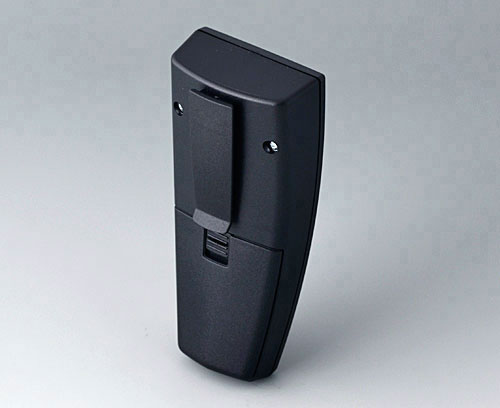

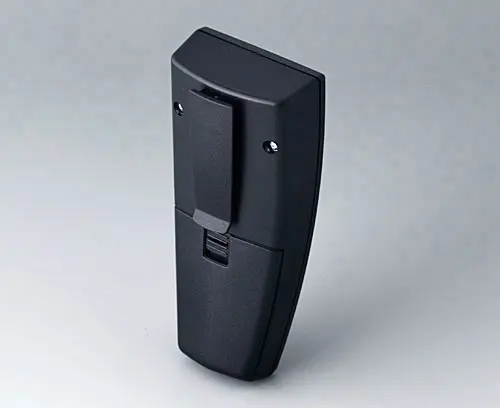

A9167019 Belt/pocket clip
Przewiń

A9167019

Belt/pocket clip

Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 Clip, assembly kit

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9167019

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
A9066109 SMART-CASE M, Vers. I

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066109

SMART-CASE M, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066119 SMART-CASE M, Vers. II

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066119

SMART-CASE M, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066129 SMART-CASE M, Vers. III

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066129

SMART-CASE M, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066139 SMART-CASE M, Vers. IV

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066139

SMART-CASE M, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066149 SMART-CASE M, Vers. V

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066149

SMART-CASE M, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066209 SMART CASE M, Vers. I

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066209

SMART CASE M, Vers. I
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066219 SMART-CASE M, Vers. II

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066219

SMART-CASE M, Vers. II
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066319 SMART-CASE M, Vers. VI

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066319

SMART-CASE M, Vers. VI
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066329 SMART-CASE M, Vers. III

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066329

SMART-CASE M, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066339 SMART-CASE M, Vers. IV

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066339

SMART-CASE M, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066349 SMART-CASE M, Vers. V

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9066349

SMART-CASE M, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066419 SMART-CASE M, Vers. VI

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Zamknij

A9066419

SMART-CASE M, Vers. VI
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9067109 SMART-CASE L, Vers. I

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9067109

SMART-CASE L, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 40
A9067119 SMART-CASE L, Vers. II

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9067119

SMART-CASE L, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067129 SMART-CASE L, Vers. III

A9067129

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067129

SMART-CASE L, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067139 SMART-CASE L, Vers. IV

A9067139

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067139

SMART-CASE L, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067149 SMART-CASE L, Vers. V

A9067149

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067149

SMART-CASE L, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067209 SMART-CASE L, Vers. I

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9067209

SMART-CASE L, Vers. I
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 40
A9067219 SMART-CASE L, Vers. II

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9067219

SMART-CASE L, Vers. II
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067329 SMART-CASE L, Vers. III

A9067329

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067329

SMART-CASE L, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067339 SMART-CASE L, Vers. IV

A9067339

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067339

SMART-CASE L, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067349 SMART-CASE L, Vers. V

A9067349

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9067349

SMART-CASE L, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9068109 SMART-CASE XL, Vers. I

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9068109

SMART-CASE XL, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 40
A9068119 SMART-CASE XL, Vers. II

A9068119

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9068119

SMART-CASE XL, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068129 SMART-CASE XL, Vers. III

A9068129

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068129

SMART-CASE XL, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068139 SMART-CASE XL, Vers. IV

A9068139

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068139

SMART-CASE XL, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068149 SMART-CASE XL, Vers. V

A9068149

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068149

SMART-CASE XL, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068209 SMART-CASE XL, Vers. I

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9068209

SMART-CASE XL, Vers. I
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 40
A9068219 SMART-CASE XL, Vers. II

A9068219

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Zamknij

A9068219

SMART-CASE XL, Vers. II
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068329 SMART-CASE XL, Vers. III

A9068329

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068329

SMART-CASE XL, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068339 SMART-CASE XL, Vers. IV

A9068339

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068339

SMART-CASE XL, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40
A9068349 SMART-CASE XL, Vers. V

A9068349

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Zamknij

A9068349

SMART-CASE XL, Vers. V
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
168x74,4x35,4mm
IP 65 opt., IP 40

Opcje dostosowywania dla A9167019

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PA 6 (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
