A9051219 SOFT-CASE M
Przewiń

A9051219

SOFT-CASE M

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version

With battery compartment for 2 x AAA, accessible from the outside

Supply

Top and bottom part, battery compartment lid, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9051219

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "intermediate ring"

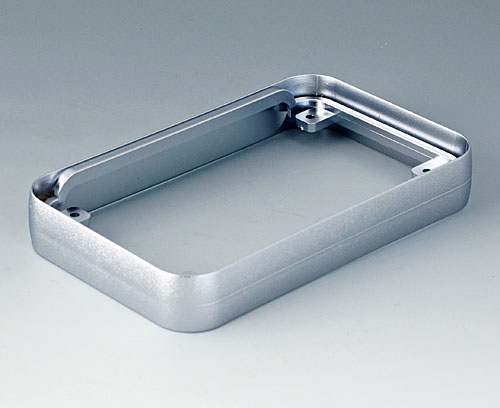

A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Zamknij

A9151011

Intermediate ring M
produkt został dodany do twojej listy
ABS (UL 94 HB)
matt chromed
68x108x16mm
A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zamknij

A9151017

Intermediate ring M
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm

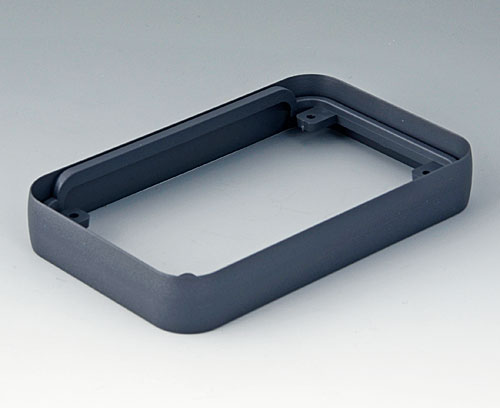

A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zamknij

A9151018

Intermediate ring M
produkt został dodany do twojej listy
ABS (UL 94 HB)
lava
68x108x16mm
A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Zamknij

A9151118

Intermediate protection ring M
produkt został dodany do twojej listy
SEBS (TPE)
volcano
68x108x16mm

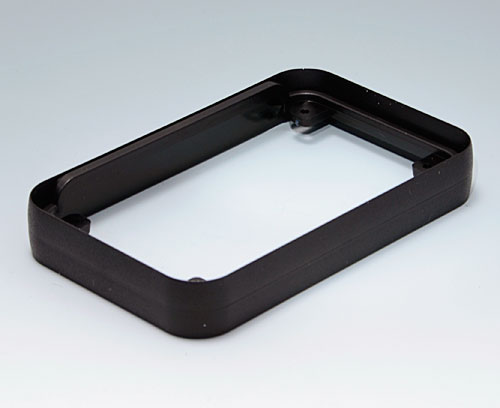

A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Zamknij

A9151219

Intermediate ring M
produkt został dodany do twojej listy
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm

Accessory "battery"

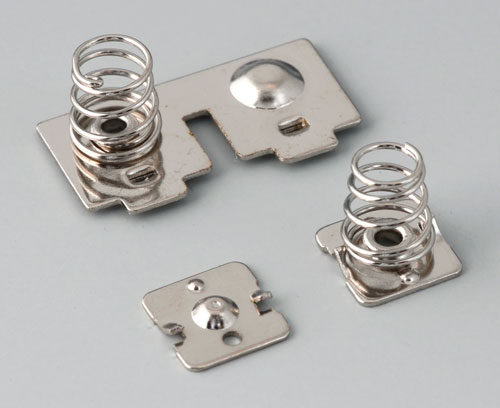

A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Zamknij

A9151010

Set of battery clips, 2 x AAA
produkt został dodany do twojej listy
Steel
nickel-plated

Accessory "wall/holder"

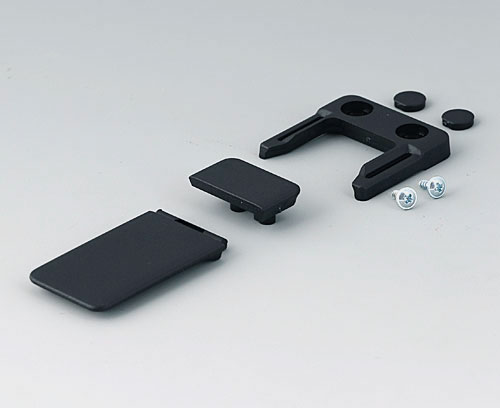

A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Zamknij

A9152049

Combi-Clip
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
45x27mm

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Zamknij

A9100001

Ring eyelet
produkt został dodany do twojej listy
PA 6
volcano
A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Zamknij

A9152049

Combi-Clip
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
45x27mm

Accessory

A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Zamknij

A9152059

Tilt foot bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Opcje dostosowywania dla A9051219

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PMMA (IR) (UL 94 HB)
Protection class
IP 40
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
65 mm
Width
105 mm
Height
19 mm
PCB length, base
26 mm
PCB width, base
96 mm
PCB length, top
56 mm
PCB width, top
96 mm
Keypad length
46,7 mm
Keypad width
70,3 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
60 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
