B1350028 Wall suspension element for Toptec 123
Przewiń

B1350028

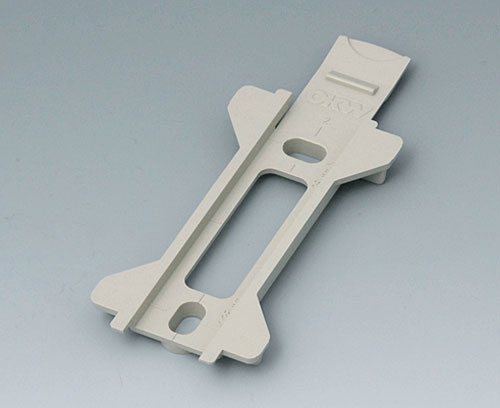

Wall suspension element for Toptec 123

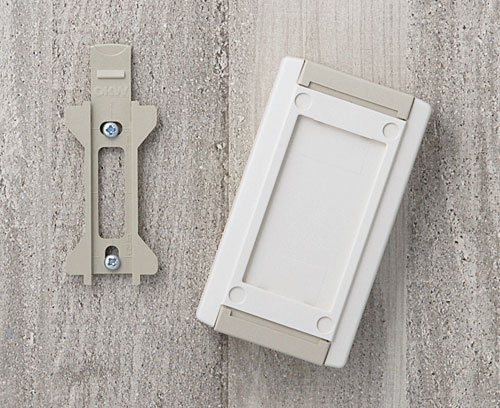

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B1350028

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
B1050365 TOPTEC 123 H, Vers. I

B1050365

TOPTEC 123 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version without ventilations slots.

Supply 1 case-top and base, 2 end panels

Zamknij

B1050365

TOPTEC 123 H, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1050465 TOPTEC 123 H, Vers. II

B1050465

TOPTEC 123 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Zamknij

B1050465

TOPTEC 123 H, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1055365 TOPTEC 123 F, Vers. I

B1055365

TOPTEC 123 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Zamknij

B1055365

TOPTEC 123 F, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40
B1055465 TOPTEC 123 F, Vers. II

B1055465

TOPTEC 123 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Zamknij

B1055465

TOPTEC 123 F, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40

Opcje dostosowywania dla B1350028

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC+ABS (UL 94 V-0)
Kolor
pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
