A9152059 Tilt foot bar
Scroll

A9152059

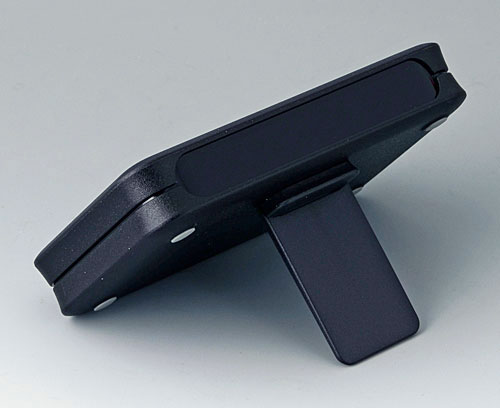

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply

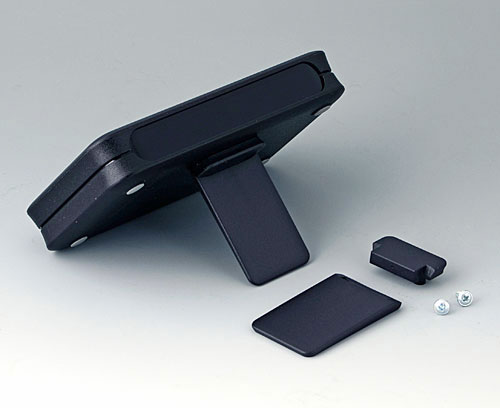

1 tilt foot bar, assembly kit

Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9152059

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

A9050209 SOFT-CASE S

A9050209

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Fechar

A9050209

SOFT-CASE S
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
51x82x14mm
IP 54 opt., IP 40
A9051209 SOFT-CASE M

A9051209

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Fechar

A9051209

SOFT-CASE M
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 54 opt., IP 40
A9051219 SOFT-CASE M

A9051219

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Fechar

A9051219

SOFT-CASE M
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
65x105x19mm
IP 40
A9052209 SOFT-CASE L

A9052209

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Fechar

A9052209

SOFT-CASE L
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 54 opt., IP 40
A9052219 SOFT-CASE L

A9052219

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Fechar

A9052219

SOFT-CASE L
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 40
A9052229 SOFT-CASE L

A9052229

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Fechar

A9052229

SOFT-CASE L
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
73x117x24mm
IP 40
A9053209 SOFT-CASE XL

A9053209

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Fechar

A9053209

SOFT-CASE XL
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40
A9053219 SOFT-CASE XL

A9053219

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Fechar

A9053219

SOFT-CASE XL
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent

Customising options for A9152059

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
