Fully automatic safety device for climbers
Scroll

Fully automatic safety device for the ascent

EPIC (Electronic Partner for Individual Climbing) is a securing system for climbers that controls lead climbing, second climbing and abseiling mechatronically via a box and remote control. It is the first device in the world that permits fully automatic risk-free climbing without a belay partner.

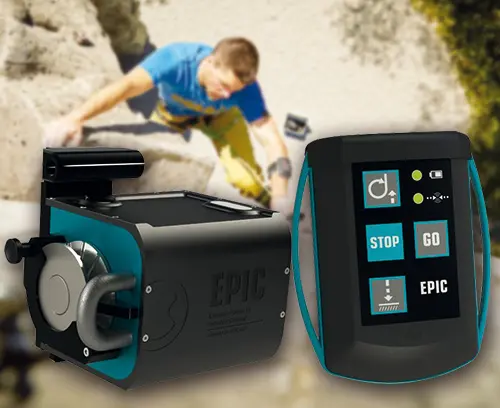

EPIC is an electronic rope securing device that can be remote-controlled with a unit worn on the arm. The safety device is about the size of a brick, easy to carry, and operated with a rechargeable battery. It is either attached to the walls with screws or click closures, or can be attached to any solid structure with a strap. The rope is threaded in when the climber starts the ascent. The EPIC electronic system contains a pulley that guides the rope and a small motor that pulls the rope behind itself. The electronic system monitors the revolutions and will recognise a fall by the increased speed. It will apply the electromechanical brake then. The climber also wears a 3-axis-acceleration sensor on the wrist. If the sensor registers a fall, the brake signal will be sent to the basis within 30 milliseconds as well. The rope brake will engage after one metre at the latest.

Cliente

AUROCO Logo

Auroco GmbH,
Munich (Germany)
