B5013229 ART-CASE S110 F
Scroll

B5013229

ART-CASE S110 F

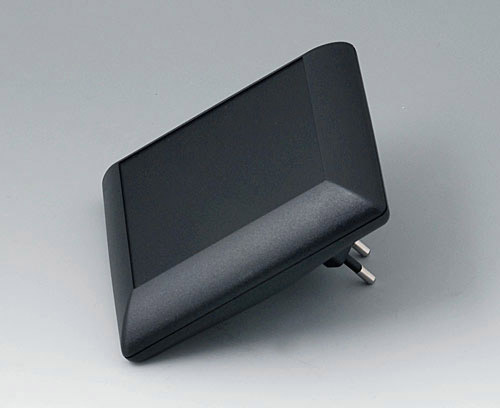

Electronic case with Euro plug section according to DIN VDE 0620 part 101. Top part with recessed area for membrane keyboards.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "inclined" with plug section

Supply

1 bottom part, 1 plug section and 1 top part S110 F, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B5013229

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Fechar

B5111201

Set of screws
Produto adicionado a sua lista

Customising options for B5013229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
PC+ABS (UL 94 V-0)
Plug section
ABS (UL 94 HB)
Bottom and top part
Protection class
IP 40
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
DIN VDE 0620 part 101
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
110 mm
Width
110 mm
Height
38 mm
PCB length, top
94 mm
PCB width, top
78 mm
Keypad length
79,5 mm
Keypad width
79,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
83 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Alemanha
