B4210228 CARRYTEC M slim version
Scroll

B4210228

CARRYTEC M slim version

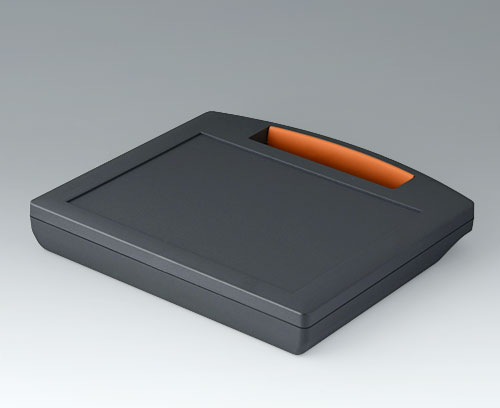

Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.

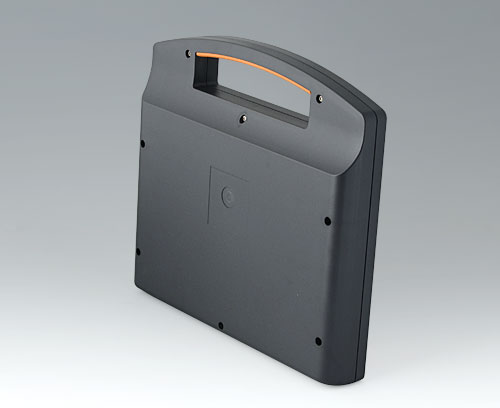

Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply

Top and bottom parts, TPE handle pad, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B4210228

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "protection"

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Fechar

B4310001

Sealing M
Produto adicionado a sua lista

Accessory "wall/holder"

B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Fechar

B4308238

Holding clamps
Produto adicionado a sua lista
PA 6
lava

Accessory "screws"

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
Produto adicionado a sua lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T10

Torx T10 screwdriver
Produto adicionado a sua lista

Customising options for B4210228

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Exemplos de Aplicação
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Enclosure
SEBS (TPE)
Handle pad
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Colour
Enclosure lava,
Handle pad orange
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
270 mm
Height
247 mm
Depth
42 mm
PCB length, base
258 mm
PCB width, base
176 mm
PCB length, top
258 mm
PCB width, top
184 mm
Keypad length
219,5 mm
Keypad width
162,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
610 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
