A5031100 Cover 31, with line
Scroll

A5031100

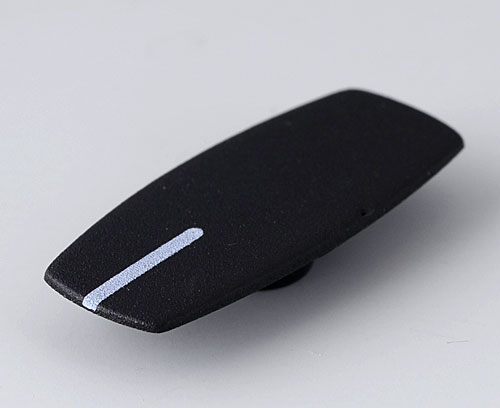

Cover 31, with line

Suitable for spindle-shaped knob 31. Cover simply to pin up. White marking.

Supply

1 cover

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A5031100

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

A2431060 SPINDLE-SHAPED KNOB 31, with line

A2431060

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Fechar

A2431060

SPINDLE-SHAPED KNOB 31, with line
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
31x16mm
Bore hole 6mm
A2431068 SPINDLE-SHAPED KNOB 31, with line

A2431068

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Fechar

A2431068

SPINDLE-SHAPED KNOB 31, with line
Produto adicionado a sua lista
ABS (UL 94 HB)
dusty grey RAL 7037
31x16mm
Bore hole 6mm

Customising options for A5031100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,4 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Alemanha
