B2823107 CONNECT S
Scroll

B2823107

CONNECT S

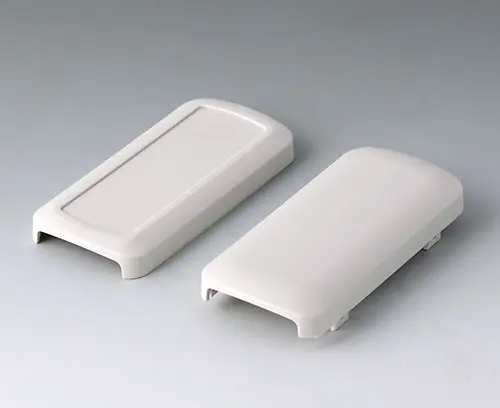

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply

1 shell convex and 1 flattened shell with recessed surface

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B2823107

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory to complete

B2911308 Cable gland kit, 3.4 - 4.2

B2911308

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911308

Cable gland kit, 3.4 - 4.2
Produto adicionado a sua lista
TPE
volcano
B2911309 Cable gland kit, 3.4 - 4.2

B2911309

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911309

Cable gland kit, 3.4 - 4.2
Produto adicionado a sua lista
TPE
black RAL 9005
B2911318 Cable gland kit, 4.2 - 5.0

B2911318

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911318

Cable gland kit, 4.2 - 5.0
Produto adicionado a sua lista
TPE
volcano
B2911319 Cable gland kit, 4.2 - 5.0

B2911319

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911319

Cable gland kit, 4.2 - 5.0
Produto adicionado a sua lista
TPE
black RAL 9005
B2911328 Cable gland kit, 5.0 - 5.9

B2911328

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911328

Cable gland kit, 5.0 - 5.9
Produto adicionado a sua lista
TPE
volcano
B2911329 Cable gland kit, 5.0 - 5.9

B2911329

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Fechar

B2911329

Cable gland kit, 5.0 - 5.9
Produto adicionado a sua lista
TPE
black RAL 9005

Accessory "wall/holder"

A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Fechar

A9167027

Holding clamp
Produto adicionado a sua lista
PA 6 (UL 94 HB)
off-white RAL 9002
B2921507 Holder S

B2921507

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Fechar

B2921507

Holder S
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista

Customising options for B2823107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
90 mm
Width
42 mm
Height
22 mm
PCB length, base
71 mm
PCB width, base
34 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
