B2931507 Holder M
Scroll

B2931507

Holder M

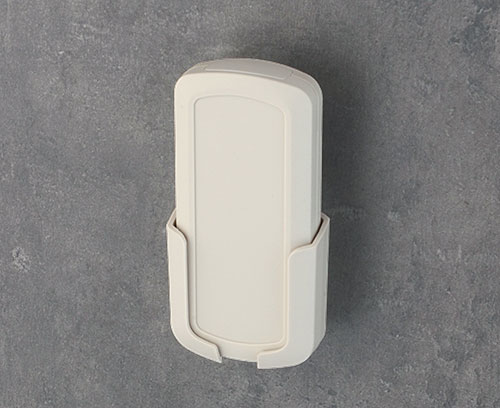

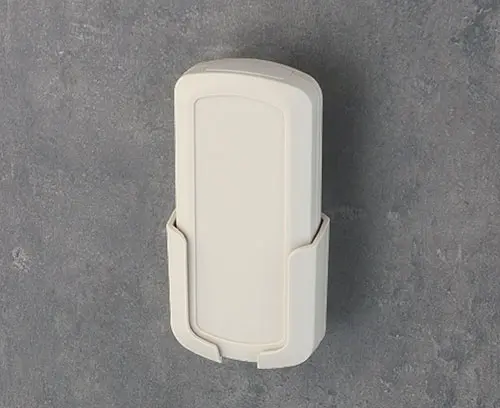

Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply

1 holder

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B2931507

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Usado para
  • Veja Opções de personalização
B2832107 CONNECT M

B2832107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Fechar

B2832107

CONNECT M
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
76x54x22mm
B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Fechar

B2833107

CONNECT M
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Fechar

B2834107

CONNECT M
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm

Customising options for B2931507

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
20 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
