B6021011 DIN-MODULAR CASE TYPE A

B6021011

DIN-MODULAR CASE TYPE A

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Componentes adequados
  • Veja Opções de personalização

Accessory to complete

B6121111 Front panel

B6121111

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Fechar

B6121111

Front panel
Produto adicionado a sua lista
Aluminium
matt anodised
67,7x31,6x1,5mm

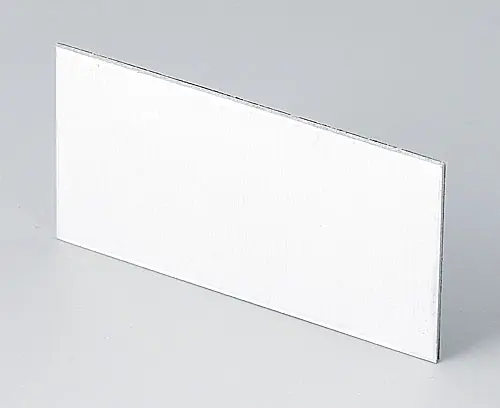

B6121112 Rear panel

B6121112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Fechar

B6121112

Rear panel
Produto adicionado a sua lista
Aluminium
matt anodised
57,6x28,6x1mm
B6121221 Front panel

B6121221

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Fechar

B6121221

Front panel
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
67,8x31,7x2mm

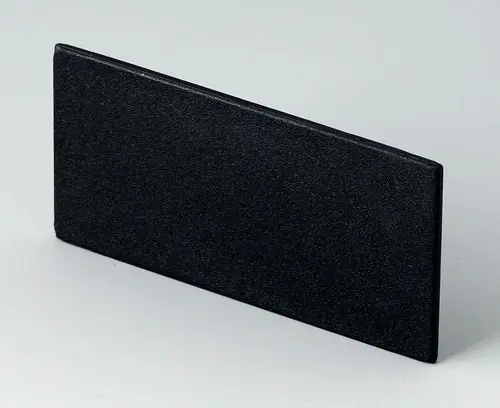

B6121222 Rear panel

B6121222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Fechar

B6121222

Rear panel
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
57,6x28,7x1,5mm

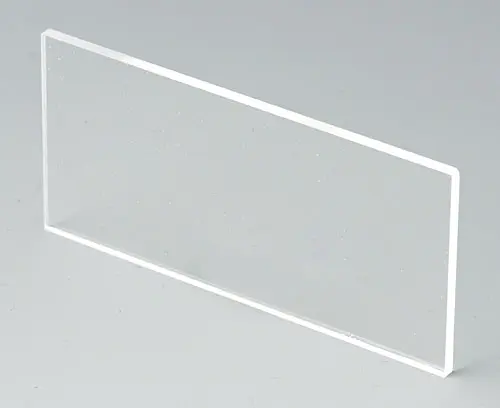

B6121331 Front panel

B6121331

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Fechar

B6121331

Front panel
Produto adicionado a sua lista
Acrylic glass
transparent
67,7x31,6x2mm

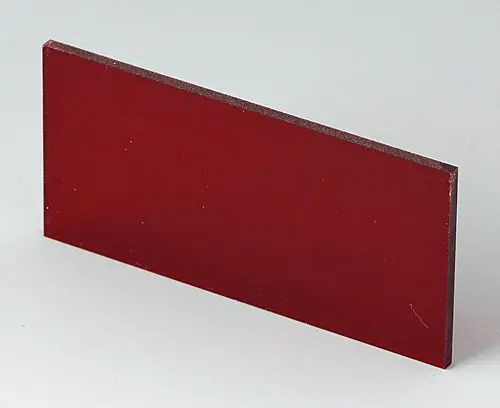

B6121341 Front panel

B6121341

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Fechar

B6121341

Front panel
Produto adicionado a sua lista
Acrylic glass
red transparent
67,7x31,6x2mm
B6121451 Front panel

B6121451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Fechar

B6121451

Front panel
Produto adicionado a sua lista
PC (IR)
67,8x31,8x2mm

Customising options for B6021011

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
black RAL 9005
Standards
Width
72 mm
Height
36 mm
Depth
57 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
38 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Itália
