A9005217 DATEC-COMPACT S
Scroll

A9005217

DATEC-COMPACT S

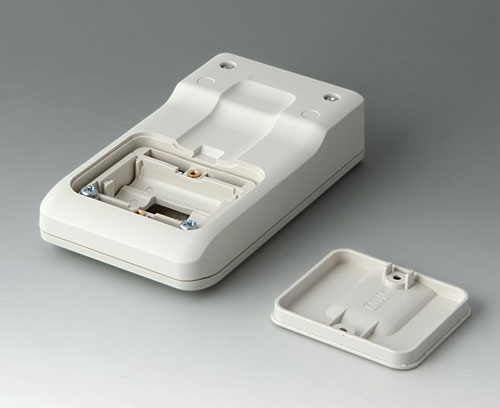

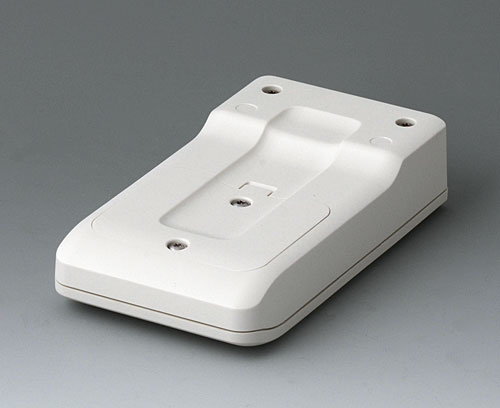

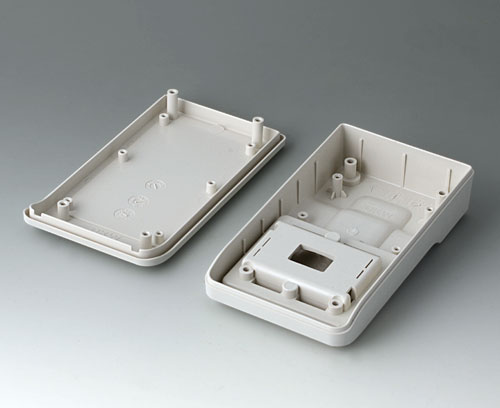

3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version

With battery compartment 3 x AAA

Supply

Top and bottom part, battery compartment lid, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9005217

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "battery"

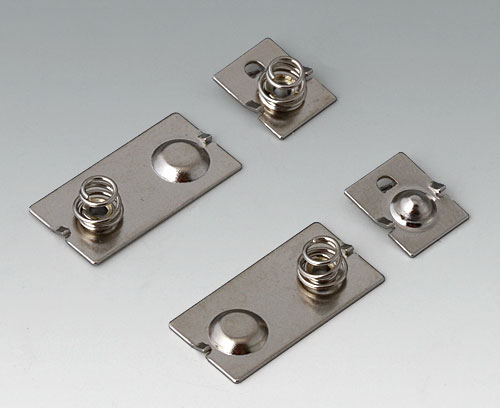

A9190024 Set of battery clips, 3 x AAA

A9190024

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Fechar

A9190024

Set of battery clips, 3 x AAA
Produto adicionado a sua lista
Steel
nickel-plated

Accessory "station"

A9105507 Station S

A9105507

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Fechar

A9105507

Station S
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9193031 Spring contact

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Fechar

A9193031

Spring contact
Produto adicionado a sua lista
gold-plated

Accessory "wall/holder"

A9105627 Holder S

A9105627

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Fechar

A9105627

Holder S
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T08

Torx T8 screwdriver
Produto adicionado a sua lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T10

Torx T10 screwdriver
Produto adicionado a sua lista

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Fechar

A9193030

Contact pin
Produto adicionado a sua lista
gold-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent

Customising options for A9005217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações

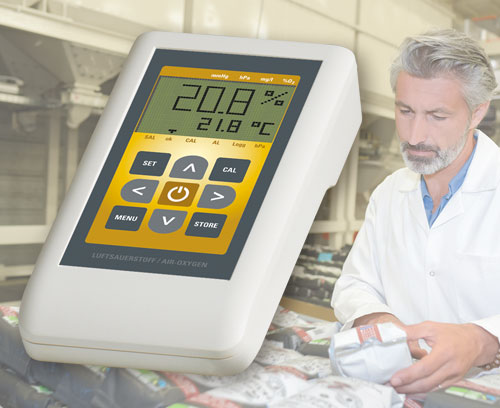

  • Exemplos de Aplicação
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 41
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
136 mm
Width
74 mm
Height
32 mm
PCB length, base
50 mm
PCB width, base
65 mm
PCB length, top
64 mm
PCB width, top
65 mm
Keypad length
102,6 mm
Keypad width
55,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
98 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
