A9175108 Protector L
Scroll

A9175108

Protector L

Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply

1 protector

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9175108

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar

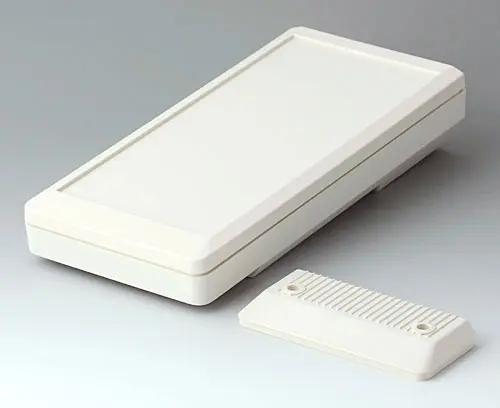

  • Usado para
A9075107 DATEC-MOBIL-BOX L, Vers. I

A9075107

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075107

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075109 DATEC-MOBIL-BOX L, Vers. I

A9075109

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075109

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.

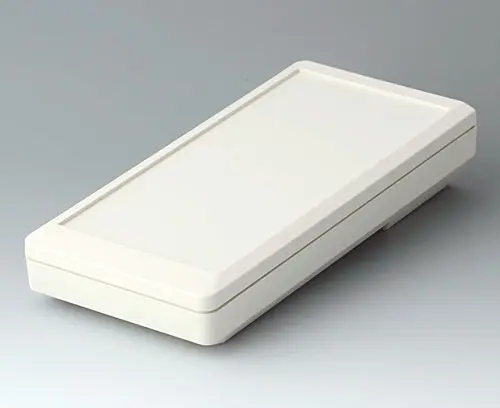

A9075117 DATEC-MOBIL-BOX L, Vers. I

A9075117

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, assembly kit

Fechar

A9075117

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075119 DATEC-MOBIL-BOX L, Vers. I

A9075119

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, assembly kit

Fechar

A9075119

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.

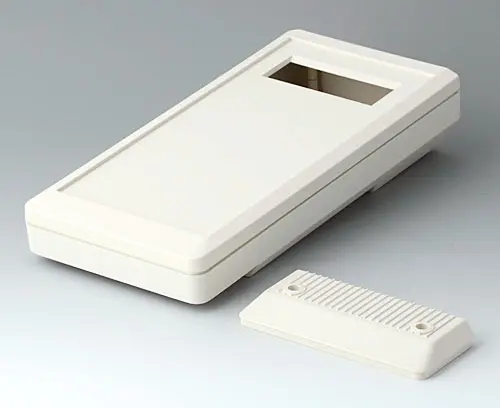

A9075207 DATEC-MOBIL-BOX L, Vers. II

A9075207

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075207

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075209

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.

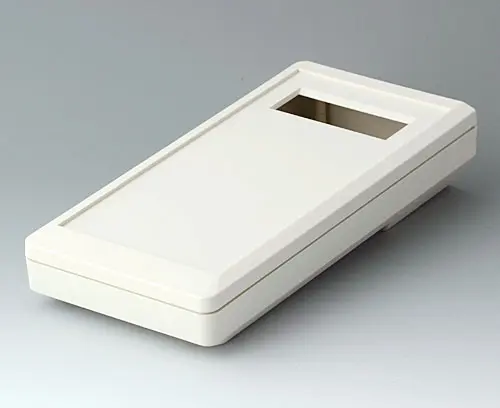

A9075217 DATEC-MOBIL-BOX L, Vers. II

A9075217

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

Fechar

A9075217

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
252x121x50mm
IP 65 opt.
A9075219 DATEC-MOBIL-BOX L, Vers. II

A9075219

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

Fechar

A9075219

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
  • Dados técnicos
  • Purchasing Data
Material
SBS (TPE)
Colour
volcano
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
160 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
