A9250909 Tilt foot bar
Scroll

A9250909

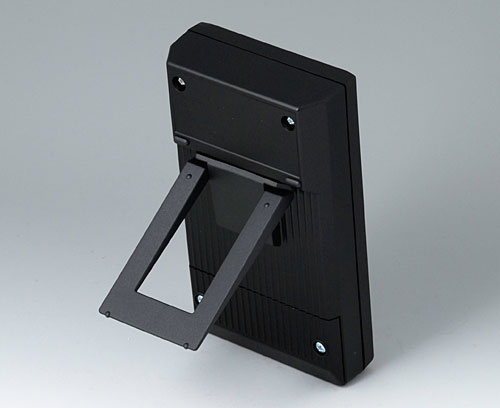

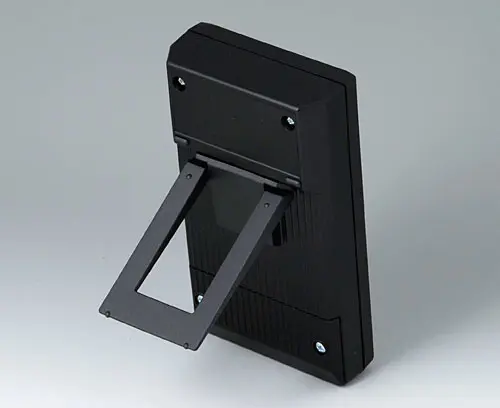

Tilt foot bar

Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply

1 tilt foot bar, assembly kit

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9250909

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

A9073109 DATEC-MOBIL-BOX S, Vers. I

A9073109

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073109

DATEC-MOBIL-BOX S, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073119 DATEC-MOBIL-BOX S, Vers. I

A9073119

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073119

DATEC-MOBIL-BOX S, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073209 DATEC-MOBIL-BOX S, Vers. II

A9073209

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073209

DATEC-MOBIL-BOX S, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073219 DATEC-MOBIL-BOX S, Vers. II

A9073219

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073219

DATEC-MOBIL-BOX S, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073309 DATEC-MOBIL-BOX S, Vers. III

A9073309

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073309

DATEC-MOBIL-BOX S, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073319 DATEC-MOBIL-BOX S, Vers. III

A9073319

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, assembly kit

Fechar

A9073319

DATEC-MOBIL-BOX S, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073409 DATEC-MOBIL-BOX S, Vers. IV

A9073409

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9073409

DATEC-MOBIL-BOX S, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073419 DATEC-MOBIL-BOX S, Vers. IV

A9073419

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, assembly kit

Fechar

A9073419

DATEC-MOBIL-BOX S, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9074109 DATEC-MOBIL-BOX M, Vers. I

A9074109

DATEC-MOBIL-BOX M, Vers. I Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074109

DATEC-MOBIL-BOX M, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9074129 DATEC-MOBIL-BOX M, Vers. I, high

A9074129

DATEC-MOBIL-BOX M, Vers. I, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074129

DATEC-MOBIL-BOX M, Vers. I, high
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x59mm
IP 65 opt.
A9074209 DATEC-MOBIL-BOX M, Vers. II

A9074209

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074209

DATEC-MOBIL-BOX M, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9074229 DATEC-MOBIL-BOX M, Vers. II, high

A9074229

DATEC-MOBIL-BOX M, Vers. II, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074229

DATEC-MOBIL-BOX M, Vers. II, high
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x59mm
IP 65 opt.
A9074309 DATEC-MOBIL-BOX M, Vers. III

A9074309

DATEC-MOBIL-BOX M, Vers. III Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for compact-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074309

DATEC-MOBIL-BOX M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9074409 DATEC-MOBIL-BOX M, Vers. IV

A9074409

DATEC-MOBIL-BOX M, Vers. IV Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9074409

DATEC-MOBIL-BOX M, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9075109 DATEC-MOBIL-BOX L, Vers. I

A9075109

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075109

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075119 DATEC-MOBIL-BOX L, Vers. I

A9075119

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, assembly kit

Fechar

A9075119

DATEC-MOBIL-BOX L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Fechar

A9075209

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075219 DATEC-MOBIL-BOX L, Vers. II

A9075219

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

Fechar

A9075219

DATEC-MOBIL-BOX L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent

Customising options for A9250909

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
