B4308238 Holding clamps
Scroll

B4308238

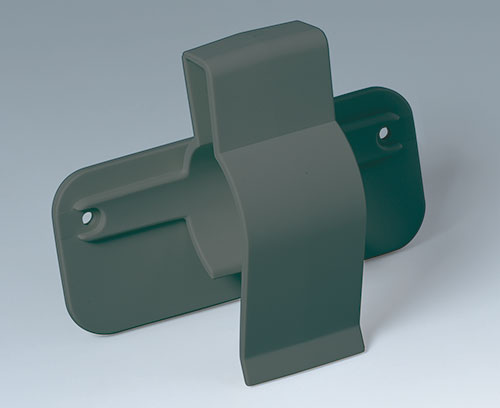

Holding clamps

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply

1 holding clamp, assembly kit

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B4308238

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Usado para
  • Veja Opções de personalização
B4208208 CARRYTEC S

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4208208

CARRYTEC S
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
lava
222x205x80mm
IP 54 opt.
B4210208 CARRYTEC M

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210208

CARRYTEC M
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.
B4210228 CARRYTEC M slim version

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4210228

CARRYTEC M slim version
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
B4213208 CARRYTEC L

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Fechar

B4213208

CARRYTEC L
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.

Customising options for B4308238

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Purchasing Data
Material
PA 6
Colour
lava
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
