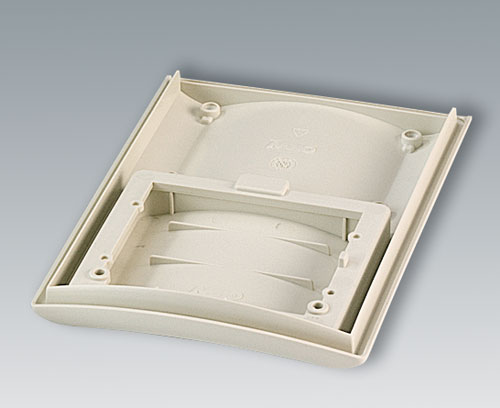

B7015107 ERGO-CASE M, high
Scroll

B7015107

ERGO-CASE M, high

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version

With high top part

Supply

1 top and 1 bottom part, battery compartment lid, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B7015107

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Fechar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Fechar

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Produto adicionado a sua lista
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Fechar

A9174002

Battery compartment, 2 x 9 V
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Fechar

A9174003

Battery compartment, 1 x 9 V
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Fechar

A9174006

Set of battery clips, 1 x 9 V
Produto adicionado a sua lista
Steel
tin-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Fechar

A9345217

Set of battery compartment, 4 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

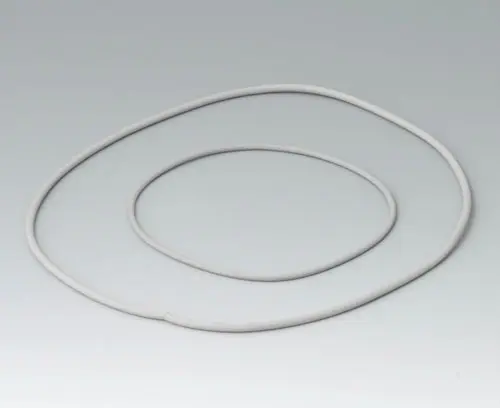

B7110001 Sealing kit M

B7110001

Sealing kit M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing kit

Fechar

B7110001

Sealing kit M
Produto adicionado a sua lista

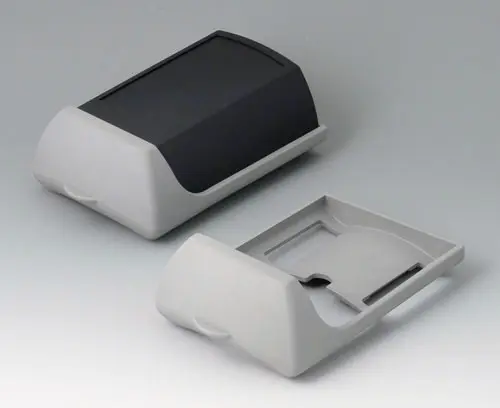

B7115108 Protector M, high

B7115108

Protector M, high Special protector for ERGO-CASE M, high. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Fechar

B7115108

Protector M, high
Produto adicionado a sua lista
TPE
volcano

Accessory "wall/holder"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Fechar

A9178007

Contacts, male
Produto adicionado a sua lista
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Fechar

B7110028

Fastening elements L / M / S
Produto adicionado a sua lista
PA 6
volcano
B7110048 Wall suspension elements S / M

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 screw

Fechar

B7110048

Wall suspension elements S / M
Produto adicionado a sua lista
PA 6
volcano

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Fechar

A9100001

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Fechar

B7110028

Fastening elements L / M / S
Produto adicionado a sua lista
PA 6
volcano

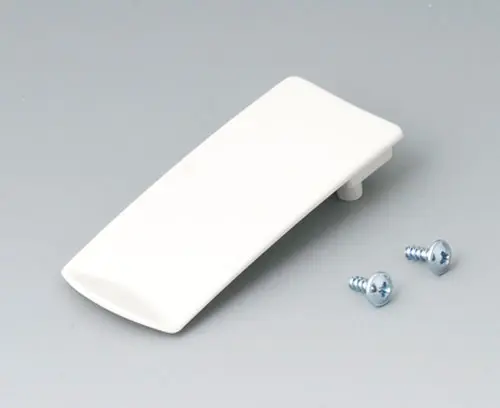

B7110107 Belt / pocket clip

B7110107

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

Fechar

B7110107

Belt / pocket clip
Produto adicionado a sua lista
PA 6
off-white RAL 9002
B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

Fechar

B7110129

Belt strap
Produto adicionado a sua lista
black
450x35mm
B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Fechar

B7110139

Belt strap
Produto adicionado a sua lista
black
1200x30mm
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Fechar

B7110149

Belt strap
Produto adicionado a sua lista
black
1500x30mm

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Fechar

A9178007

Contacts, male
Produto adicionado a sua lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Fechar

A9178008

Contacts, female
Produto adicionado a sua lista
gold-plated

Customising options for B7015107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
100 mm
Height
55 mm
PCB length, top
128 mm
PCB width, top
68 mm
Keypad length
101,8 mm
Keypad width
58,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
140 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
