A9486107 EVOTEC 250, Vers. III
Scroll

A9486107

EVOTEC 250, Vers. III

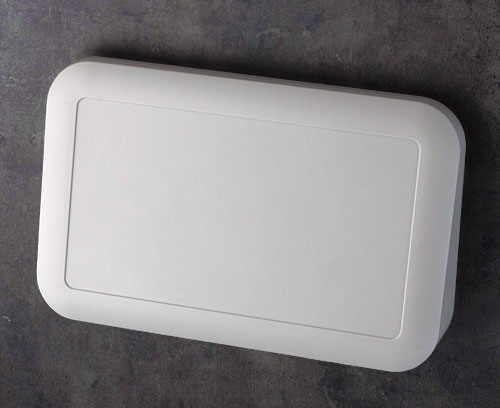

2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version

Top part "Desktop", operating area recessed by 1 mm

Supply

Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9486107

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "protection"

A9508030 Sealing 250

A9508030

Sealing 250 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Fechar

A9508030

Sealing 250
Produto adicionado a sua lista

Accessory "wall/holder"

A9506117 Wall suspension element

A9506117

Wall suspension element Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.

Supply 1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws

Fechar

A9506117

Wall suspension element
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T08

Torx T8 screwdriver
Produto adicionado a sua lista

Customising options for A9486107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
250 mm
Width
155 mm
Height
54 mm
PCB length, base
240 mm
PCB width, base
100 mm
PCB length, top
240 mm
PCB width, top
100 mm
Keypad length
205,9 mm
Keypad width
115 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
303 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
