B4042847 Base S - desk-top/wall -
Scroll

B4042847

Base S - desk-top/wall -

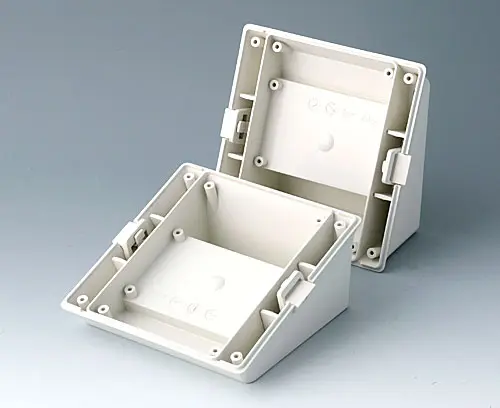

Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.

Supply

1 base, 2 clips, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B4042847

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

B4042407 Cover S

B4042407

Cover S Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Fechar

B4042407

Cover S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x14mm
B4042707 Bottom part S flat, version I

B4042707

Bottom part S flat, version I Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

Fechar

B4042707

Bottom part S flat, version I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042717 Bottom part S flat, version II

B4042717

Bottom part S flat, version II Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

Fechar

B4042717

Bottom part S flat, version II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042757 Bottom part S high, version I

B4042757

Bottom part S high, version I Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

Fechar

B4042757

Bottom part S high, version I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4042767 Bottom part S high, version II

B4042767

Bottom part S high, version II Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

Fechar

B4042767

Bottom part S high, version II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4142106 Front panel S

B4142106

Front panel S Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Fechar

B4142106

Front panel S
Produto adicionado a sua lista
Aluminium
matt anodised
186,5x131,5x2mm
B4142107 Front panel S

B4142107

Front panel S Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Fechar

B4142107

Front panel S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
190,6x135,6x14,5mm
B4142203 Glass panel S

B4142203

Glass panel S Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Fechar

B4142203

Glass panel S
Produto adicionado a sua lista
Glass
clear
190,6x135,6x16,7mm
B4142257 Bottom panel with snap-in strips S

B4142257

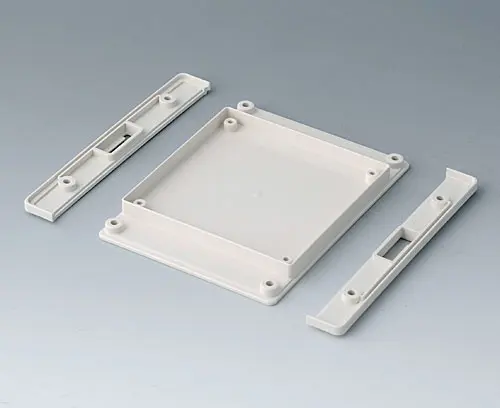

Bottom panel with snap-in strips S Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, 2 snap-in strips, assembly kit

Fechar

B4142257

Bottom panel with snap-in strips S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Fechar

B4142005

Sealing S (bottom part - front design)
Produto adicionado a sua lista
SEBS (TPE)
B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Fechar

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
Produto adicionado a sua lista
SEBS (TPE)

Customising options for B4042847

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
123 mm
Depth
123 mm
Height
53 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
121 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
