B2030007 Side panels 220, without holes
Scroll

B2030007

Side panels 220, without holes

Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply

2 side panels, set of screws

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B2030007

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

B2010007 L-shells D 220, without holes

B2010007

L-shells D 220, without holes Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Fechar

B2010007

L-shells D 220, without holes
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
B2010107 L-shells D 220, with holes for handle

B2010107

L-shells D 220, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Fechar

B2010107

L-shells D 220, with holes for handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
B2012007 L-shells E 220, without holes

B2012007

L-shells E 220, without holes Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Fechar

B2012007

L-shells E 220, without holes
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
B2012107 L-shells E 220, with holes for handle

B2012107

L-shells E 220, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Fechar

B2012107

L-shells E 220, with holes for handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
B2020005 Side trims 220, without ventilation

B2020005

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Fechar

B2020005

Side trims 220, without ventilation
Produto adicionado a sua lista
ABS
lagoon
B2020007 Side trims 220, without ventilation

B2020007

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Fechar

B2020007

Side trims 220, without ventilation
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B2021005 Side trims 220, with ventilation

B2021005

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Fechar

B2021005

Side trims 220, with ventilation
Produto adicionado a sua lista
ABS
lagoon
B2021007 Side trims 220, with ventilation

B2021007

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Fechar

B2021007

Side trims 220, with ventilation
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B2030007 Side panels 220, without holes

B2030007

Side panels 220, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Fechar

B2030007

Side panels 220, without holes
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B2135017 Connectors

B2135017

Connectors For secure connection of 2 side panels. Screwless assembly, simply pin and lock.

Supply 4 connectors

Fechar

B2135017

Connectors
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B2210005 MEDITEC D 220, without handle bar

B2210005

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Fechar

B2210005

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210007 MEDITEC D 220, without handle bar

B2210007

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Fechar

B2210007

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210015 MEDITEC D 220, without handle bar

B2210015

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Fechar

B2210015

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210017 MEDITEC D 220, without handle bar

B2210017

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

Fechar

B2210017

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210205 MEDITEC D 220, without handle bar

B2210205

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet

Fechar

B2210205

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x124mm
IP 40
B2210207 MEDITEC D 220, without handle bar

B2210207

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet

Fechar

B2210207

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x124mm
IP 40
B2210215 MEDITEC D 220, without handle bar

B2210215

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet

Fechar

B2210215

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x124mm
IP 40
B2210217 MEDITEC D 220, without handle bar

B2210217

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet

Fechar

B2210217

MEDITEC D 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
290x260x124mm
IP 40
B2212005 MEDITEC E 220, without handle bar

B2212005

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Fechar

B2212005

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212007 MEDITEC E 220, without handle bar

B2212007

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Fechar

B2212007

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212015 MEDITEC E 220, without handle bar

B2212015

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Fechar

B2212015

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212017 MEDITEC E 220, without handle bar

B2212017

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

Fechar

B2212017

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212205 MEDITEC E 220, without handle bar

B2212205

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet

Fechar

B2212205

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x124mm
IP 40
B2212207 MEDITEC E 220, without handle bar

B2212207

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet

Fechar

B2212207

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x124mm
IP 40
B2212215 MEDITEC E 220, without handle bar

B2212215

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet

Fechar

B2212215

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x124mm
IP 40
B2212217 MEDITEC E 220, without handle bar

B2212217

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet

Fechar

B2212217

MEDITEC E 220, without handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
160x260x124mm
IP 40

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Fechar

B2116007

Sloping control panel E
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

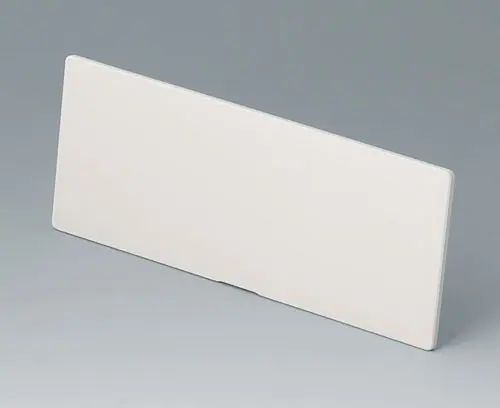

B2116307 Front / rear panel E, flat

B2116307

Front / rear panel E, flat For case without side panels.

Supply 1 front panel

Fechar

B2116307

Front / rear panel E, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
141,6x55,6x3mm
B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Fechar

B2116407

Front / rear panel Z1
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
141,6x105,6x3mm
B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

Fechar

B2116707

Infill panel E
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
142x55x5mm

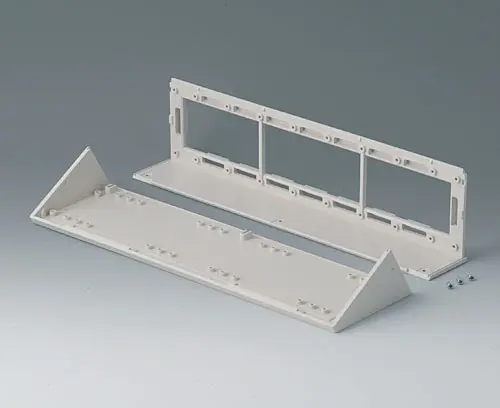

B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

Fechar

B2129007

Sloping control panel D
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

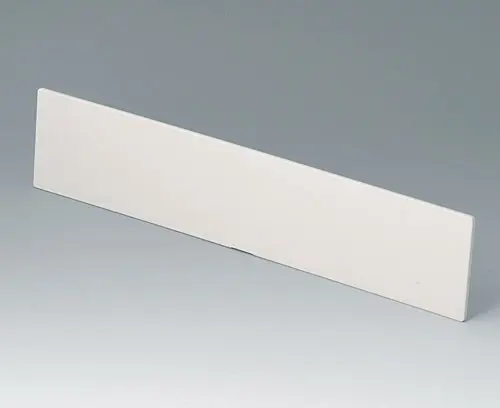

B2129307 Front / rear panel D, flat

B2129307

Front / rear panel D, flat For case without side panels.

Supply 1 front panel

Fechar

B2129307

Front / rear panel D, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
271,6x55,6x3mm

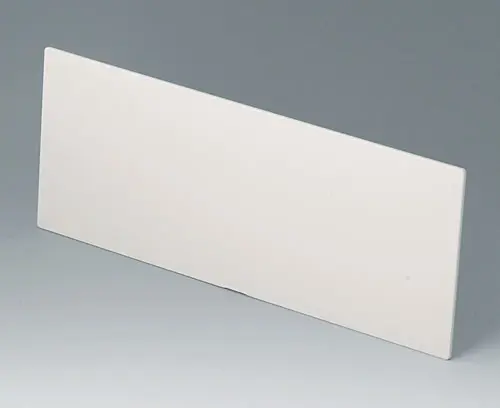

B2129407 Front / rear panel Z1

B2129407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Fechar

B2129407

Front / rear panel Z1
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
271,6x105,6x3mm
B2129707 Infill panel D

B2129707

Infill panel D When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version D

Supply 1 front cover (for locking)

Fechar

B2129707

Infill panel D
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
272x55x5mm

Accessory "wall/holder"

B2133012 Wall mounting brackets

B2133012

Wall mounting brackets Wall mounting brackets for simple external wall assembly.

Supply 4 Wall mounting brackets, screws

Fechar

B2133012

Wall mounting brackets
Produto adicionado a sua lista
PA 6
volcano

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Fechar

A9199008

Set of screws
Produto adicionado a sua lista

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Fechar

B2134012

Stacking elements
Produto adicionado a sua lista
PA 6
volcano

Customising options for B2030007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
112 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
