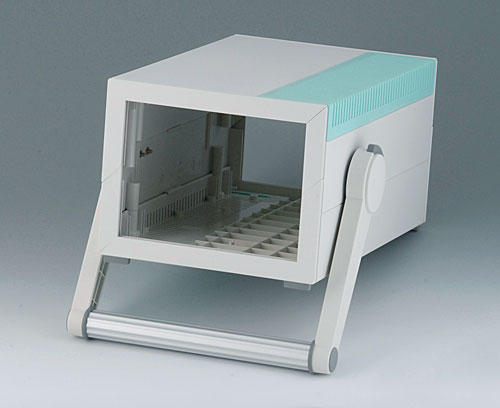

B2212305 MEDITEC E 220, with handle bar

B2212305

MEDITEC E 220, with handle bar

Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar

  • Componentes adequados
  • Veja Opções de personalização

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Fechar

B2116007

Sloping control panel E
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

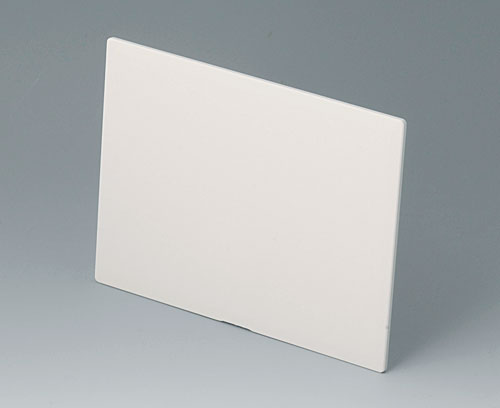

B2116407 Front / rear panel Z1
