A9305017 Wall suspension elements
Scroll

A9305017

Wall suspension elements

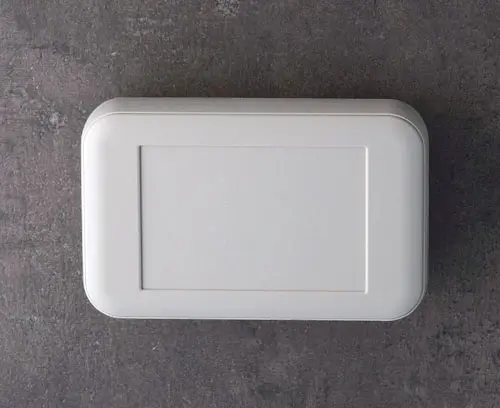

Universal wall suspension element suitable for small plastic enclosures with a flat base.

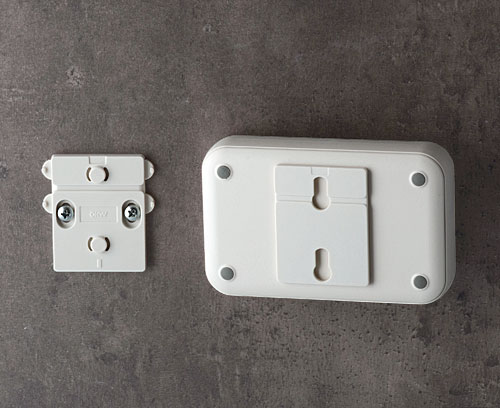

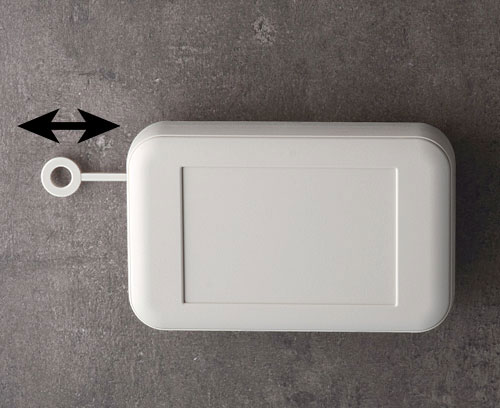

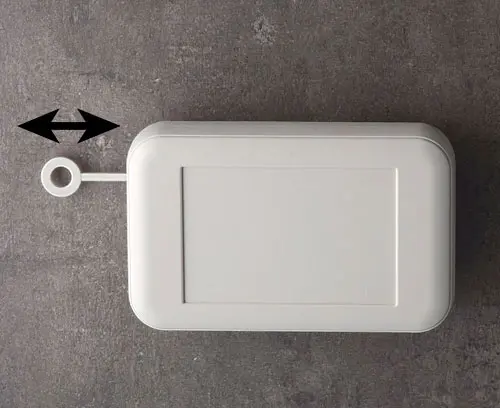

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply

1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9305017

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados

Accessory

A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

Fechar

A9305147

Adhesive foil holder
Produto adicionado a sua lista
  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
