C0161602 Case shell 160, with tongue
Scroll

C0161602

Case shell 160, with tongue

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with tongue

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para C0161602

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

C1161602 Case shell 160, with groove

C1161602

Case shell 160, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Fechar

C1161602

Case shell 160, with groove
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
160x160x30mm
C2299001 Assembly kit

C2299001

Assembly kit Each 4 screws for case assembly, and for mounting PCBs.

Supply 1 assembly kit

Fechar

C2299001

Assembly kit
Produto adicionado a sua lista

Accessory to complete

C2201601 Cover strips 160, without holes

C2201601

Cover strips 160, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2201601

Cover strips 160, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2204162 Cover strips 160

C2204162

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204162

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
silver grey RAL 7001
C2204164 Cover strips 160

C2204164

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204164

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
red RAL 3020
C2204165 Cover strips 160

C2204165

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204165

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
yellow RAL 1023
C2204166 Cover strips 160

C2204166

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204166

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
green RAL 6024
C2204167 Cover strips 160

C2204167

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204167

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
blue RAL 5017

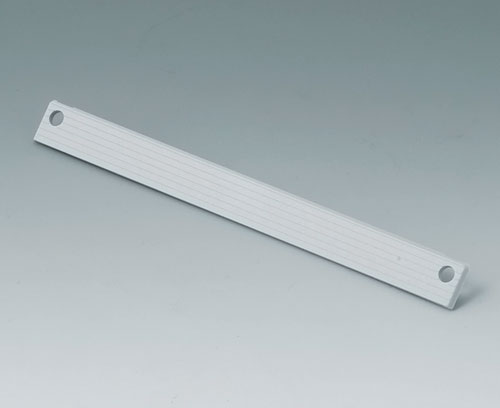

C2211601 Cover strips 160, with holes

C2211601

Cover strips 160, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2211601

Cover strips 160, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035

Accessory "protection"

C2299046 Security kit width 160

C2299046

Security kit width 160 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Fechar

C2299046

Security kit width 160
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2306917

Pressure equalisation element M6x0.75
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2310917

Pressure equalisation element M10x1
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

Accessory "wall/holder"

C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

Fechar

C2204168

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Fechar

C2299028

Wall mounting brackets
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Fechar

C2299031

Securing hinge for the cover
Produto adicionado a sua lista
PP
natural-coloured
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Fechar

C2299088

Hinge
Produto adicionado a sua lista
PA 6
light grey RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produto adicionado a sua lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produto adicionado a sua lista
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Fechar

C2299018

Case feet
Produto adicionado a sua lista
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Fechar

C2299068

PCB support
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035

Customising options for C0161602

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
PC (UL 94 HB)
Colour
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
Length
160 mm
Width
160 mm
Height
30 mm
PCB length, base
120 mm
PCB width, base
145 mm
Keypad length
122,6 mm
Keypad width
145,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
175 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
