A9109111 Front / rear panel V, O 155
Scroll

A9109111

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply

1 front panel

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9109111

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Usado para
  • Veja Opções de personalização

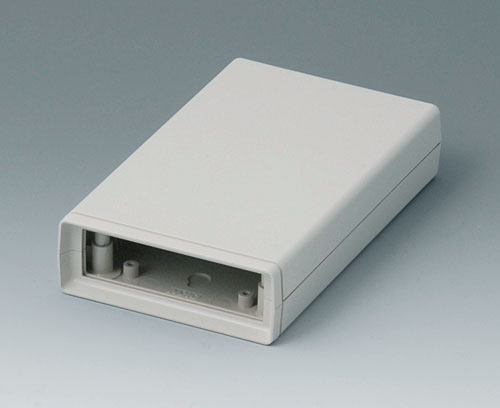

A9408330 SHELL-TYPE CASES O 155, Vers. I

A9408330

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Fechar

A9408330

SHELL-TYPE CASES O 155, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm

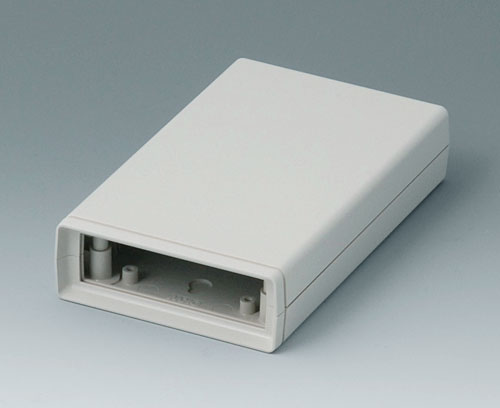

A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Fechar

A9408333

SHELL-TYPE CASES V 155, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm

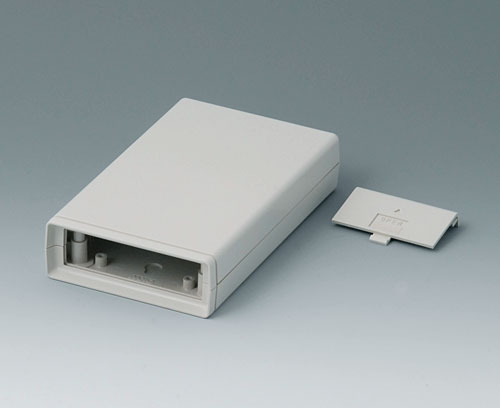

A9408336 SHELL-TYPE CASES V 155, Vers. IV

A9408336

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Fechar

A9408336

SHELL-TYPE CASES V 155, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408638 SHELL-TYPE CASES V 155, Vers. V

A9408638

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Fechar

A9408638

SHELL-TYPE CASES V 155, Vers. V
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm

Customising options for A9109111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Aluminium
Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Width
81,9 mm
Height
23,6 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Alemanha
