A9067117 SMART-CASE L, Vers. II
Scroll

A9067117

SMART-CASE L, Vers. II

Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment

Supply

Case-top and base, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9067117

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "station"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Fechar

A9166004

Set of pull-relief
Produto adicionado a sua lista
PA 6
volcano
A9167037 Station L

A9167037

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9167037

Station L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Fechar

A9193032

Spring contact
Produto adicionado a sua lista

Accessory "protection"

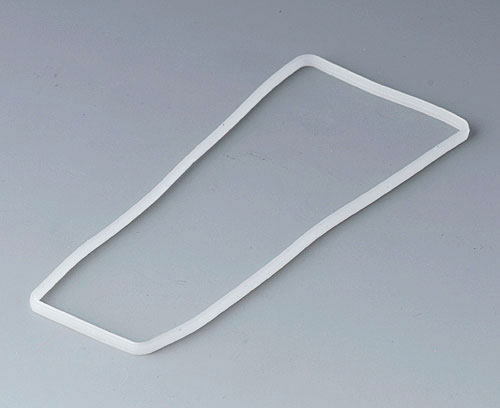

A9167002 Sealing L

A9167002

Sealing L Application: for a higher protection class. For versions II - V.

Supply 1 Sealing kit

Fechar

A9167002

Sealing L
Produto adicionado a sua lista

Accessory "wall/holder"

A9167005 Adhesive foil L

A9167005

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9167005

Adhesive foil L
Produto adicionado a sua lista
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Fechar

A9167027

Holding clamp
Produto adicionado a sua lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167307 Holder L

A9167307

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Fechar

A9167307

Holder L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Fechar

A9100002

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Fechar

A9167017

Belt/pocket clip
Produto adicionado a sua lista
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Fechar

A9193030

Contact pin
Produto adicionado a sua lista
gold-plated

Customising options for A9067117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Exemplos de Aplicação
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
140 mm
Width
62,7 mm
Height
30,5 mm
PCB length, base
89 mm
PCB width, base
51 mm
PCB length, top
117 mm
PCB width, top
51 mm
Keypad length
103,5 mm
Keypad width
51,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
66 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
