A9068109 SMART-CASE XL, Vers. I
Scroll

A9068109

SMART-CASE XL, Vers. I

Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply

Case-top and base, battery compartment lid, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9068109

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Fechar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Fechar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Fechar

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
nickel-plated

Accessory "station"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Fechar

A9166004

Set of pull-relief
Produto adicionado a sua lista
PA 6
volcano

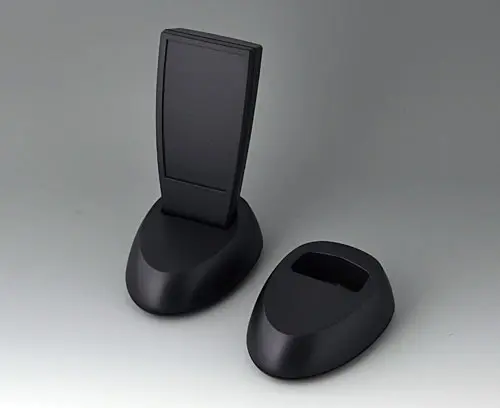

A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Fechar

A9168039

Station XL
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Fechar

A9193032

Spring contact
Produto adicionado a sua lista

Accessory "wall/holder"

A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Fechar

A9167029

Holding clamp
Produto adicionado a sua lista
PA 6 (UL 94 HB)
black RAL 9005
A9168005 Adhesive foil XL

A9168005

Adhesive foil XL For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9168005

Adhesive foil XL
Produto adicionado a sua lista

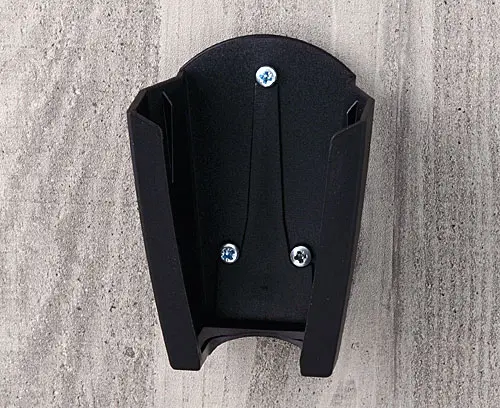

A9168309 Holder XL

A9168309

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Fechar

A9168309

Holder XL
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Fechar

A9167019

Belt/pocket clip
Produto adicionado a sua lista
PA 6 (UL 94 HB)
black RAL 9005

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Fechar

A9193030

Contact pin
Produto adicionado a sua lista
gold-plated

Customising options for A9068109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
168 mm
Width
74,4 mm
Height
35,4 mm
PCB length, base
84 mm
PCB width, base
61 mm
PCB length, top
94 mm
PCB width, top
61 mm
Keypad length
110,5 mm
Keypad width
61,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
102 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
