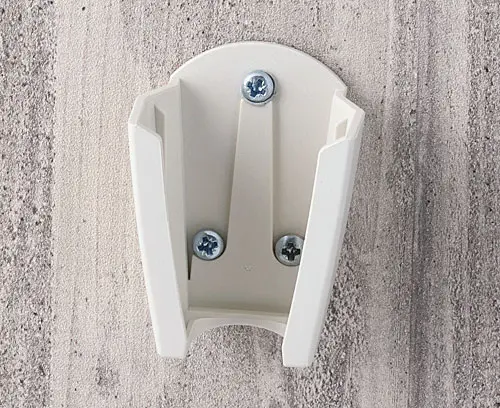

A9166307 Holder M
Scroll

A9166307

Holder M

Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply

1 holder

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9166307

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

A9066107 SMART-CASE M, Vers. I

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066107

SMART-CASE M, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066117

SMART-CASE M, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

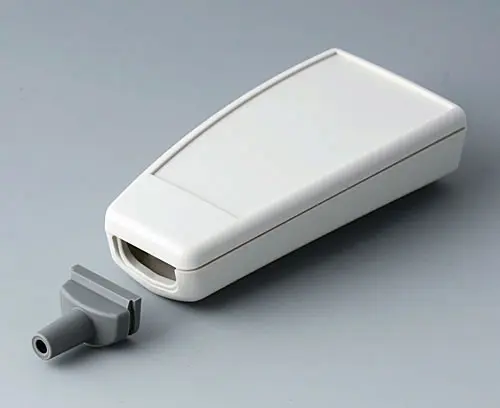

A9066127 SMART-CASE M, Vers. III

A9066127

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066127

SMART-CASE M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

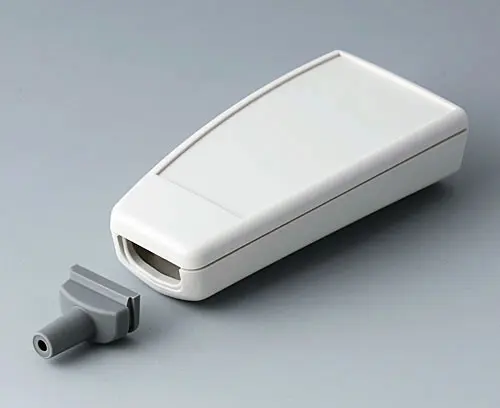

A9066137 SMART-CASE M, Vers. IV

A9066137

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066137

SMART-CASE M, Vers. IV
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

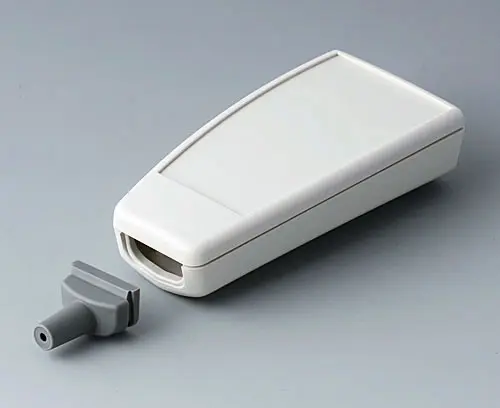

A9066147 SMART-CASE M, Vers. V

A9066147

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Fechar

A9066147

SMART-CASE M, Vers. V
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066317 SMART-CASE M, Vers. VI

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Fechar

A9066317

SMART-CASE M, Vers. VI
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

Accessory

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Fechar

A9166005

Adhesive foil M
Produto adicionado a sua lista

Customising options for A9166307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
