B4710920 Seal M
Scroll

B4710920

Seal M

Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.

Supply

1 seal

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B4710920

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Usado para

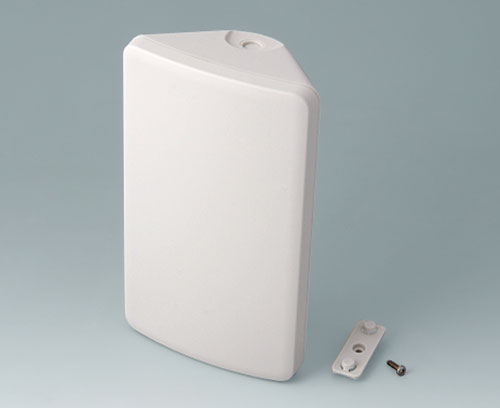

B4610107 SMART-CONTROL M, Vers. I

B4610107

SMART-CONTROL M, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Fechar

B4610107

SMART-CONTROL M, Vers. I
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40

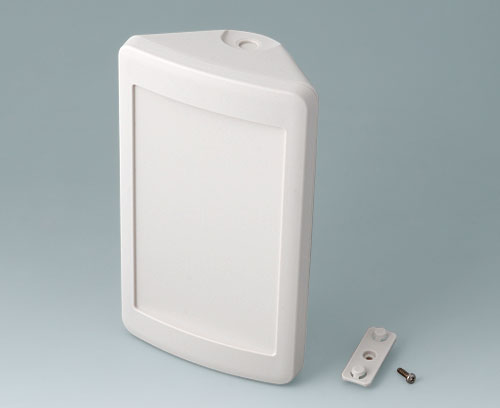

B4610207 SMART-CONTROL M, Vers. II

B4610207

SMART-CONTROL M, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Fechar

B4610207

SMART-CONTROL M, Vers. II
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40
  • Dados técnicos
  • Purchasing Data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Alemanha
