C6406107 SMART-PANEL E155
Scroll

C6406107

SMART-PANEL E155

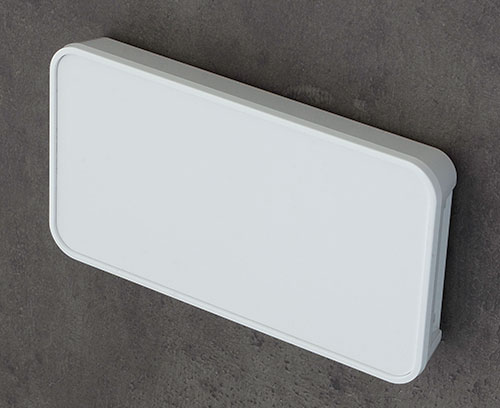

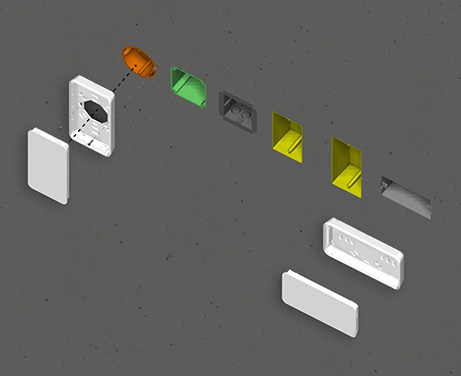

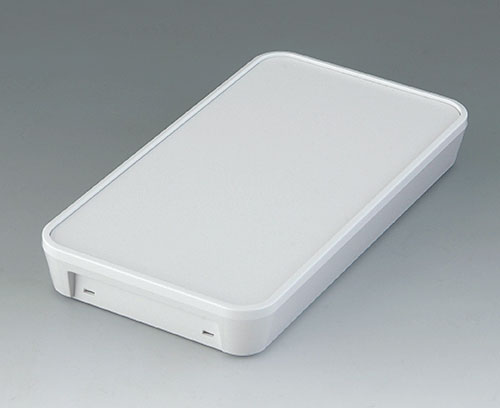

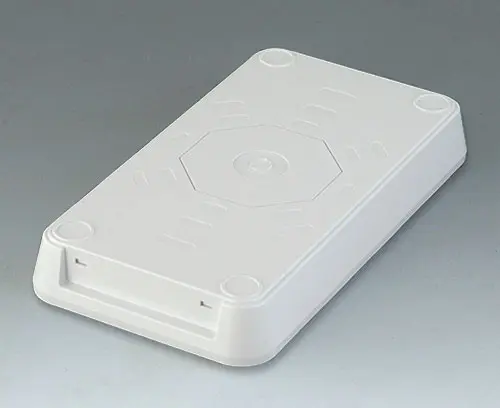

Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply

Top and bottom parts

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para C6406107

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "protection"

C6506011 Hardboard plate E155

C6506011

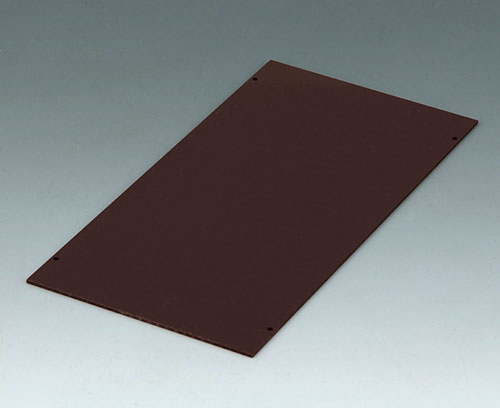

Hardboard plate E155 The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities..

Supply 1 hardboard plate

Fechar

C6506011

Hardboard plate E155
Produto adicionado a sua lista
136x67x1mm
C6506012 Adhesive foil E155

C6506012

Adhesive foil E155 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Fechar

C6506012

Adhesive foil E155
Produto adicionado a sua lista
C6506013 Glass panel E155

C6506013

Glass panel E155 Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply 1 glass panel, chemically hardened

Fechar

C6506013

Glass panel E155
Produto adicionado a sua lista
Glass
clear
149,75x78,75x1,6mm

Accessory "screws"

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel

Accessory

A9210180 Anti-slide feet 10,1 x 1.8 mm

A9210180

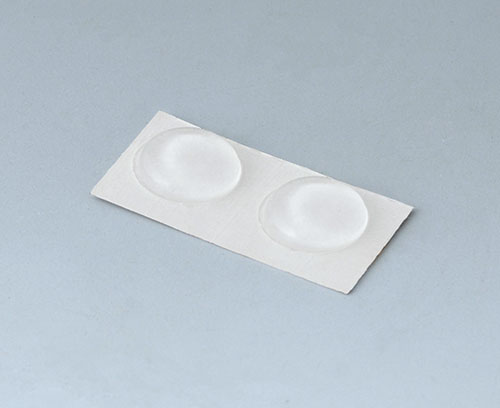

Anti-slide feet 10,1 x 1.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9210180

Anti-slide feet 10,1 x 1.8 mm
Produto adicionado a sua lista
transparent
C6502010 Opening tool set

C6502010

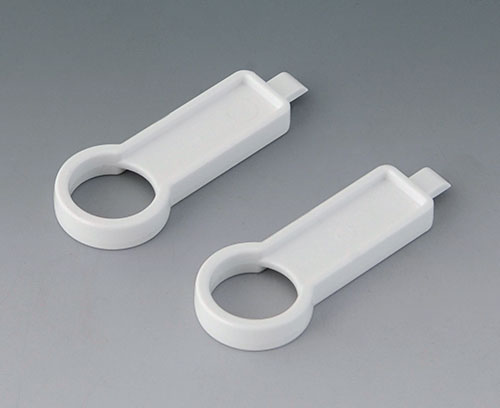

Opening tool set Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply 2 opening tools

Fechar

C6502010

Opening tool set
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016

Customising options for C6406107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações

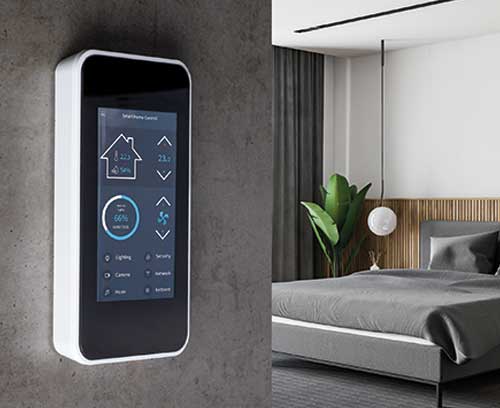

  • Exemplos de Aplicação
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 40
Colour
traffic white RAL 9016
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
155 mm
Width
84 mm
Height
21,3 mm
PCB length, base
137 mm
PCB width, base
68 mm
Keypad length
149,75 mm
Keypad width
78,75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
98 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
