B3507025 Aluminium end plate
Scroll

B3507025

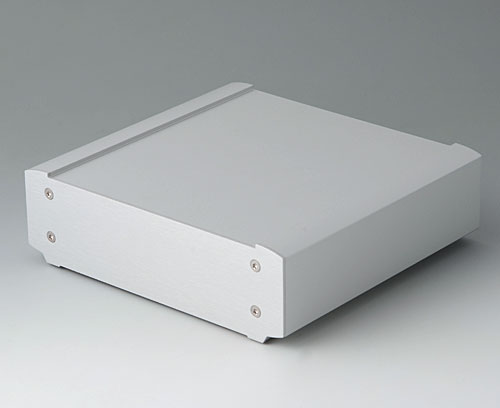

Aluminium end plate

(Order when specifying a SMART-TERMINAL enclosure from individual parts). Simple end plate for fitting to the case profile. Fitted by four screws.
Cannot to be used in conjunction with the designer seals.
Enclosure length = profile length + 4 mm (when using the end plates on both sides).

Supply

1 end plate, 4 screws

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B3507025

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory

A9209229 Anti-slide feet 8.5 x 2.2 mm

A9209229

Anti-slide feet 8.5 x 2.2 mm For SMART-TERMINAL enclosures fitted with the aluminium end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

Fechar

A9209229

Anti-slide feet 8.5 x 2.2 mm
Produto adicionado a sua lista
black

Customising options for B3507025

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Aluminium
Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
42 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Alemanha
