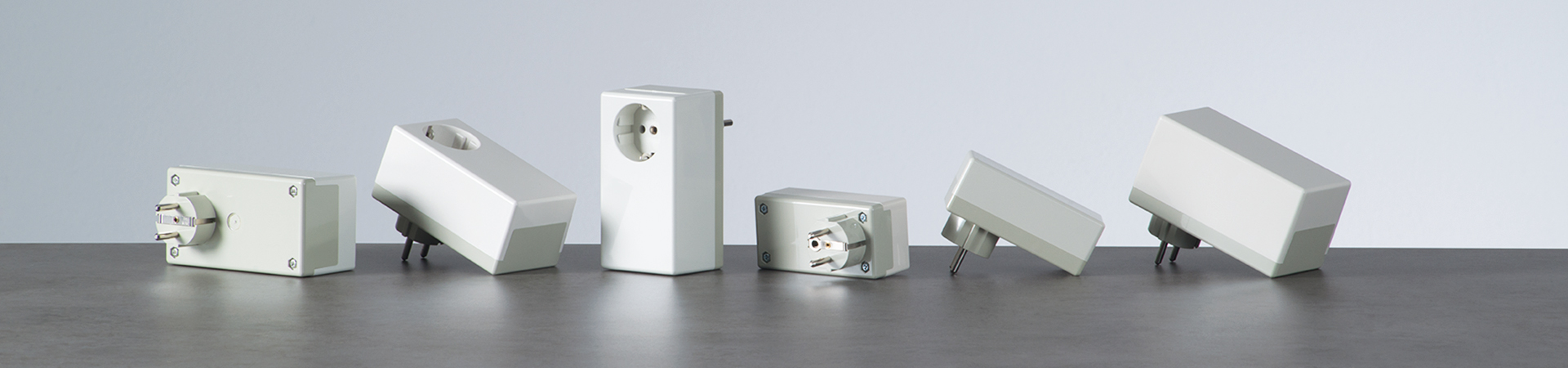

Plug Cases 连接器盒

Plug Cases 连接器盒

带集成连接器的机盒

Plug Cases 连接器盒是一款非常实用的电子产品解决方案 - 坚固耐撞耐用。

  • 阻燃材料制作 (UL 94 V-0)
  • 提供国家专型“德国”款和“法国”款
  • 德国款提供带插座型
  • 坚固耐撞耐用; 所有下盒在 125℃ 下通过球压测试
  • 内设固定柱用于固定电路板; 配套自成型螺钉 (4 颗)
  • 防护等级 < IP40

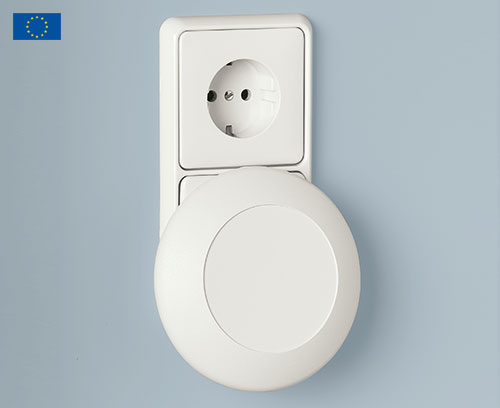

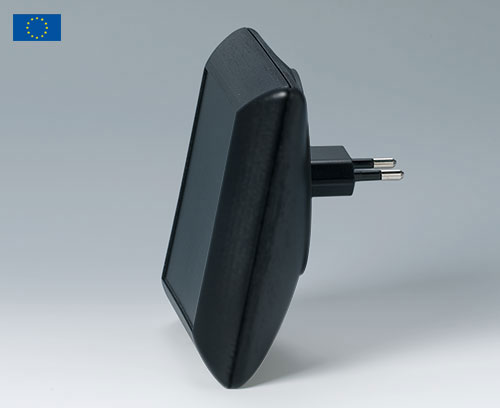

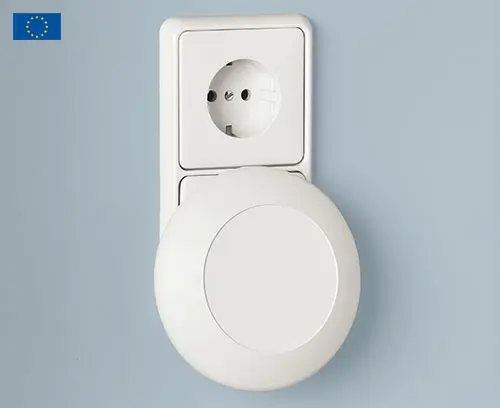

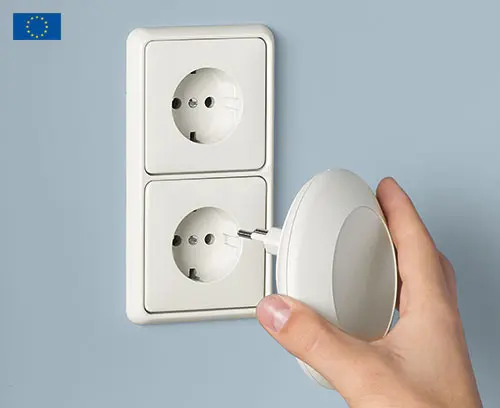

带欧式插头模块的机盒请参阅 ART-CASE 艺术状机盒

应用范围

  • 直接电源连接用插头机盒, 用于转换电压或调节其他器件的电流,例如,电路控制、分配器等
  • 选择所有项目
  • 配件
  • 按客户要求修改加工

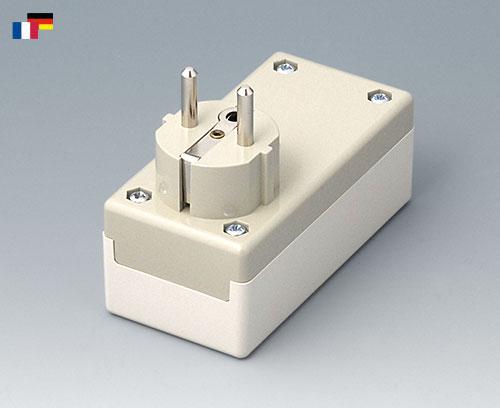

A9011665 PLUG CASE F / D, Vers. I

A9011665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

关闭

A9011665

PLUG CASE F / D, Vers. I
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
off-white RAL 9002
100x50x40mm
A9021665 PLUG CASE F / D, Vers. I

A9021665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

关闭

A9021665

PLUG CASE F / D, Vers. I
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x65mm

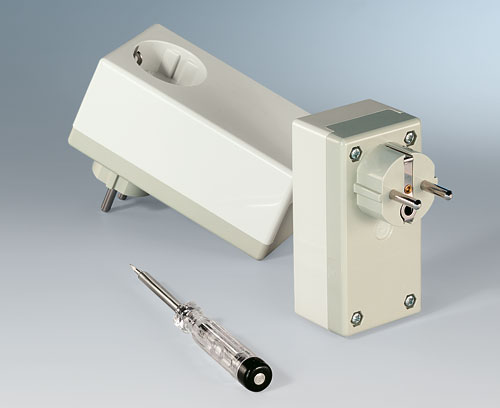

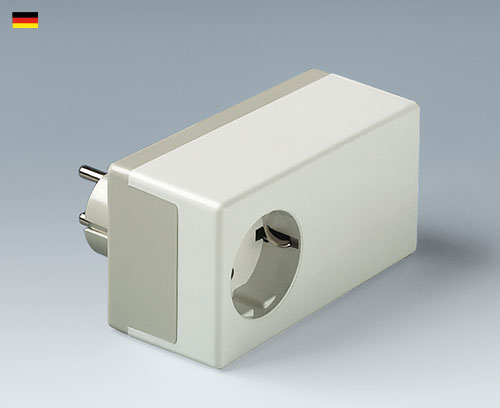

A9022465 PLUG CASE D, Vers. II

A9022465

PLUG CASE D, Vers. II Two-part plug case, German version. Fixing towers for the PCB assembly.

Version With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply 1 top part with integrated socket and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

关闭

A9022465

PLUG CASE D, Vers. II
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x55mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
产品已添加到关注清单中
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308132

Self-tapping screw 3 x 8 mm (T10)
产品已添加到关注清单中
Stainless steel

产品类型用于 Plug Cases 连接器盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
