SLIM-CASE 紧凑手持盒
Scroll

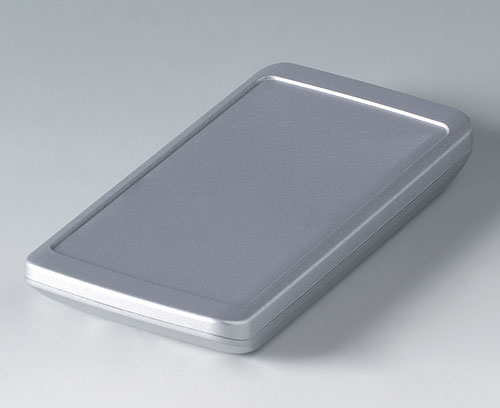

Slim-Case 长秀机盒

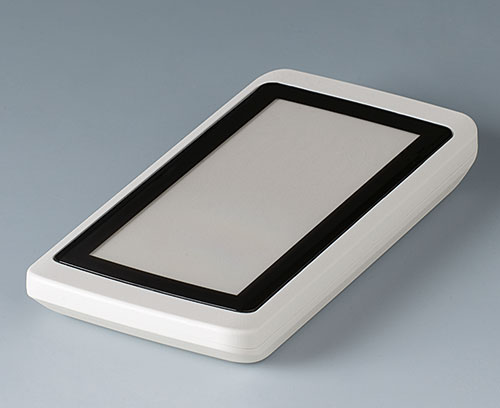

长秀设计款式的手持机盒

SLIM-CASE 长秀机盒显示了在移动机盒在外观和功能方面目前可能达到的功能。

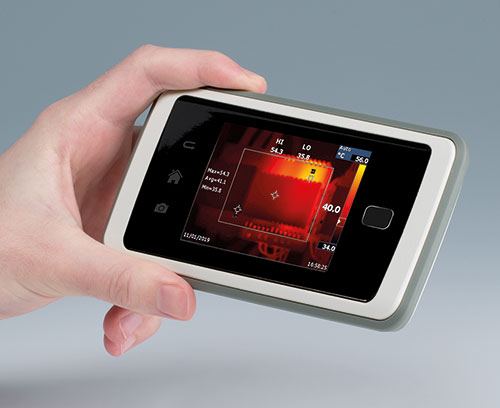

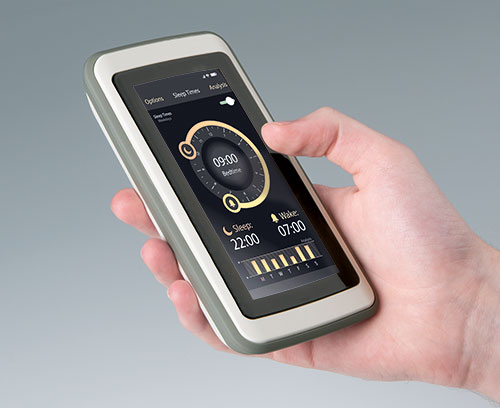

几乎无框架的设计款式使扁平电子元件和组件以及大面积显示器和最大可达 4ʺ (10 cm) 的触摸屏可以装置于其紧凑的盒体中。
尽管手持方便的机盒面积小巧，但创新的机盒系列为通用安装组件和现代化无线电标准件提供了很大的可用空间

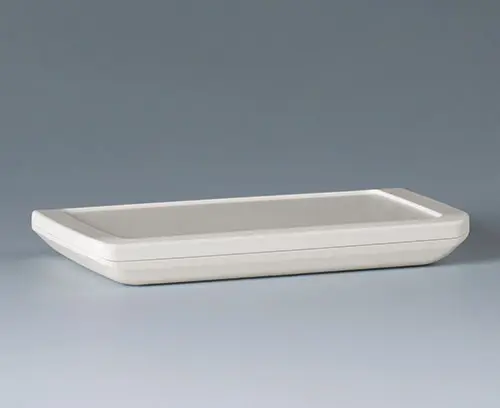

  • 侧面圆滑、结构扁平和紧凑的机盒外观极为优雅。并也能很舒适地握持于手中，并允许为必需此设计结构的功能提供可行性。
  • 三个方向的操作面板可确保安装程序和操作配置的灵活性：

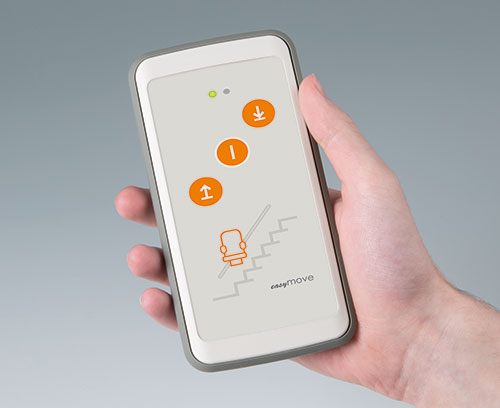

    平板式控制面

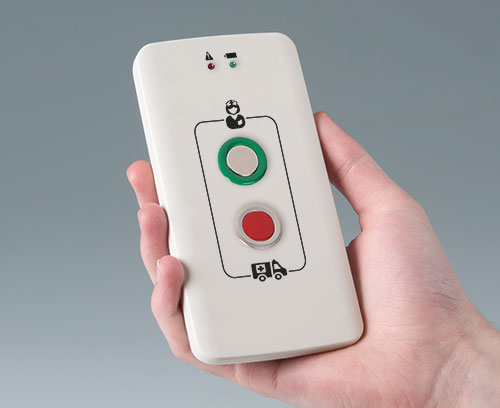

    用于各种操作和显示元件的个性化设计和布置。
    凹陷1mm 深度
     特别适合装饰膜的应用。
    凹陷 1.6mm 深度

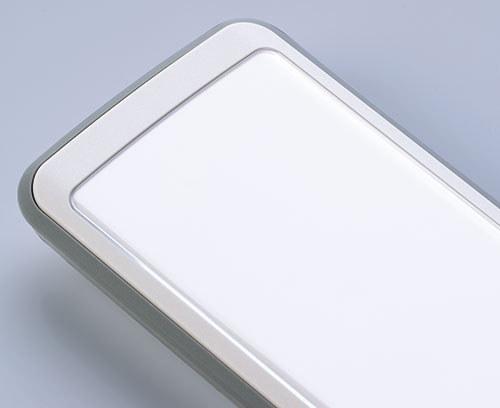

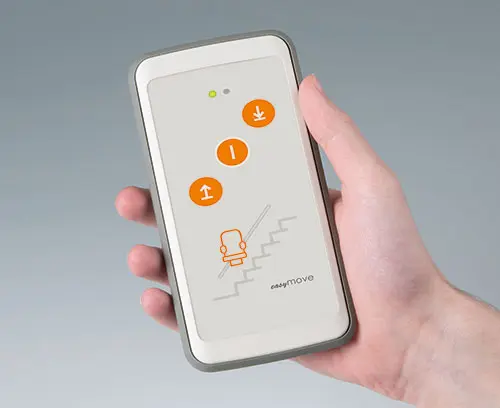

    用于安装使轮廓显真并透明的前面护板或薄膜键盘。
  • 使轮廓显真的护面板（属附件）可保护下面的显示屏。结构圆滑的长边保持了方便手持的形状。根据要求，可在背面进行图字打印、量身定制式开口以适配可见的显示屏或覆盖粘合膜。
  • 利用适当的线圈进行感应充电，并与 Qi 充电器保持近距离。内部电源的提供也可通过电路板上装有的扁平电池达成。

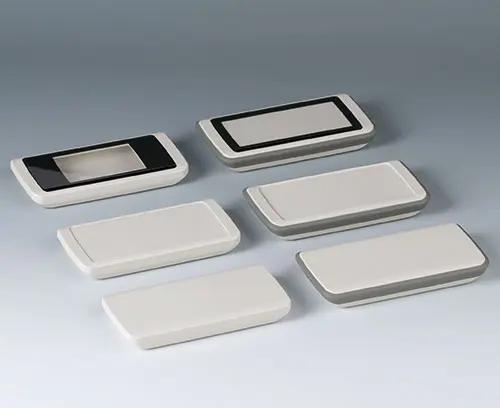

  • 带或不带 TPE 中间环。

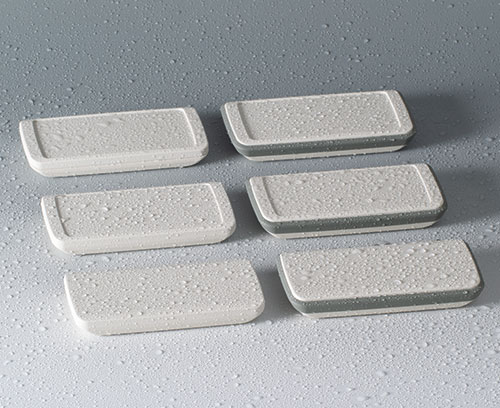

  • 防护等级高达IP 54，TPE中间环。

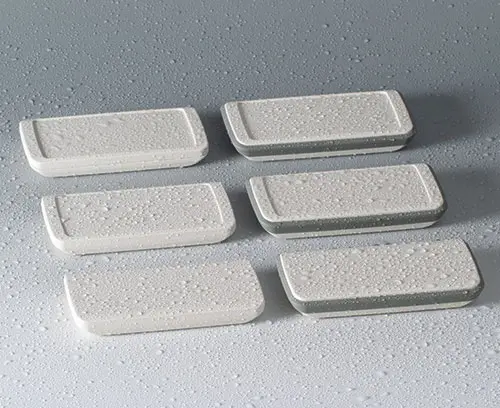

    防护等级高达IP 65，可选带密封。

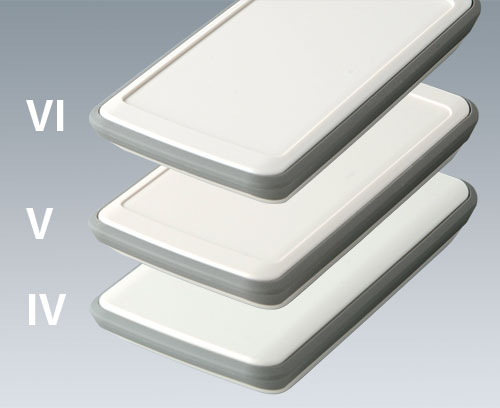

  • 使用 TPE 中间环可增加安装空间，用作为 达到 IP 54防护等级的密封圈和抗冲击保护装置。 根据要求可提供特殊颜色。
  • 机盒外壳由ASA + PC-FR（UL 94 V-0）材料制成，灰白色（色号 RAL 9002）
  • 用不锈钢螺钉和 torx 驱动器进行连接
  • 根据要求可提供进行独特处理，例如 提供预切口以利于安装操作和显示元件及界面接口等、文字打印、EMC镀铝等服务。
PDF 导出
  • 录像
  • 应用示例

应用范围

室内和室外移动式电子应用的理想选择。

  • 测量控制技术
  • 无线通信
  • IoT / IioT 物联网
  • 实验室和医疗技术
  • 医疗保健
  • 办公室应用
  • 保安技术
  • 环保技术
  • 选择所有项目
  • 配件
  • 按客户要求修改加工
B5403107 SLIM-CASE M, Vers. I

B5403107

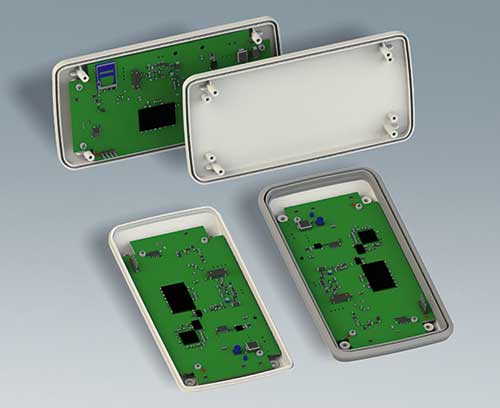

SLIM-CASE M, Vers. I 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

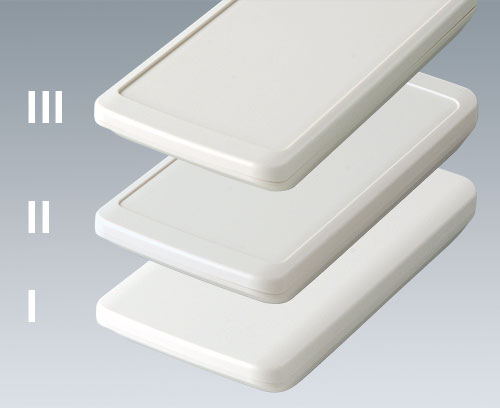

Version Flat operating panel

Supply Top and bottom part, assembly kit

关闭

B5403107

SLIM-CASE M, Vers. I
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
B5403117 SLIM-CASE M, Vers. IV

B5403117

SLIM-CASE M, Vers. IV 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and flat operating panel

Supply Top and bottom part, TPE intermediate ring, assembly kit

关闭

B5403117

SLIM-CASE M, Vers. IV
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
B5403207 SLIM-CASE M, Vers. II

B5403207

SLIM-CASE M, Vers. II 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1 mm

Supply Top and bottom part, assembly kit

关闭

B5403207

SLIM-CASE M, Vers. II
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
B5403217 SLIM-CASE M, Vers. V

B5403217

SLIM-CASE M, Vers. V 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

关闭

B5403217

SLIM-CASE M, Vers. V
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
B5403307 SLIM-CASE M, Vers. III

B5403307

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

关闭

B5403307

SLIM-CASE M, Vers. III
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
B5403317 SLIM-CASE M, Vers. VI

B5403317

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1.6 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

关闭

B5403317

SLIM-CASE M, Vers. VI
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
产品已添加到关注清单中
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T08

Torx T8 screwdriver
产品已添加到关注清单中
B5503039 Seal M

B5503039

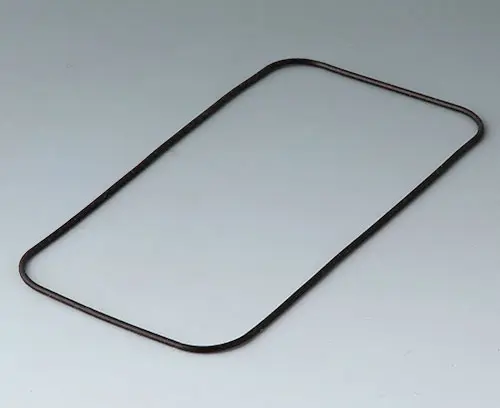

Seal M To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply 1 seal

关闭

B5503039

Seal M
产品已添加到关注清单中
Silicone
black
B5503201 Front screen M

B5503201

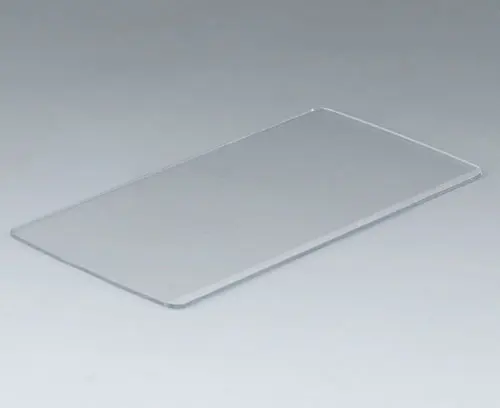

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

关闭

B5503201

Front screen M
产品已添加到关注清单中
PC
transparent
125.3x63.5x1.3mm
B5503300 Adhesive foil M

B5503300

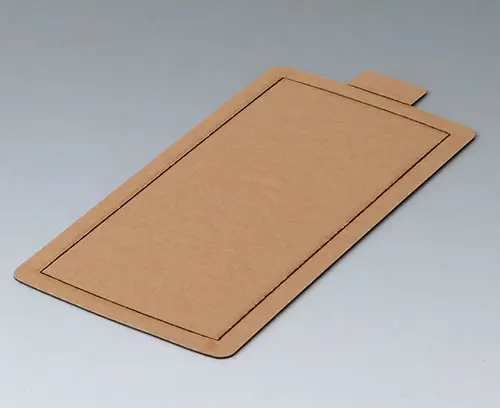

Adhesive foil M For secure mounting of the front screen on the top part.
