A2423040 SPINDLE-SHAPED KNOB 23, with line
Posunout

A2423040

SPINDLE-SHAPED KNOB 23, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.

Supply

1 spindle-shaped knob

2D PDF Zobrazení
3D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A2423040

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

System components to complete

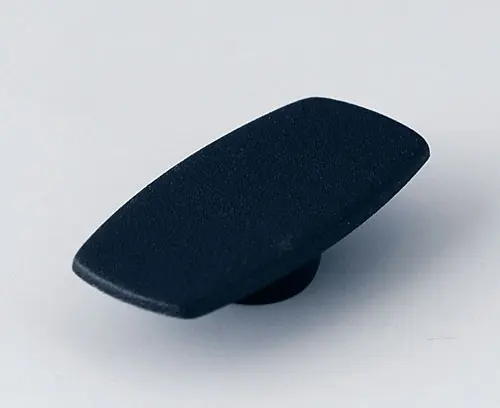

A5023000 Cover 23, without line

A5023000

Cover 23, without line Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply 1 cover

Zavřít

A5023000

Cover 23, without line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

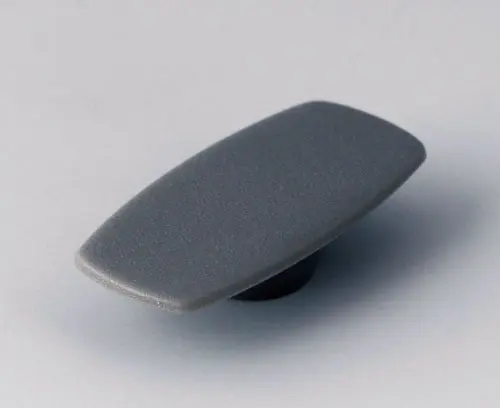

A5023008 Cover 23, without line

A5023008

Cover 23, without line Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply 1 cover

Zavřít

A5023008

Cover 23, without line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
dusty grey RAL 7037

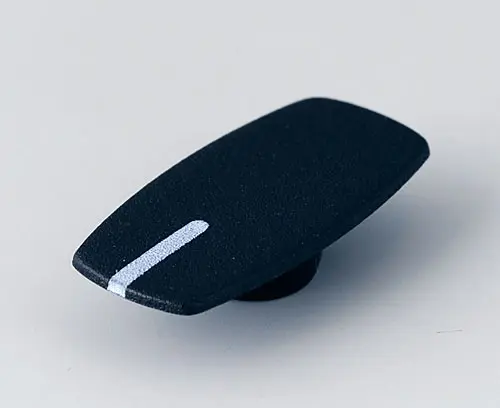

A5023100 Cover 23, with line

A5023100

Cover 23, with line Suitable for spindle-shaped knob 23. Cover simply to pin up. White marking.

Supply 1 cover

Zavřít

A5023100

Cover 23, with line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

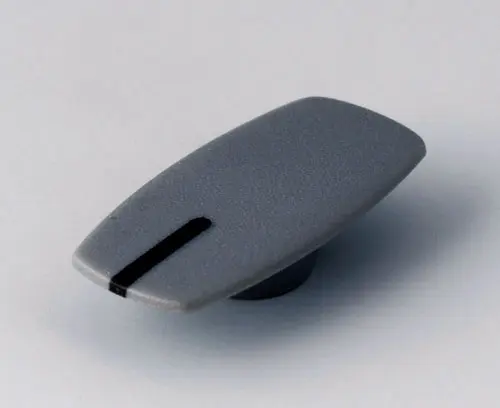

A5023108 Cover 23, with line

A5023108

Cover 23, with line Suitable for spindle-shaped knob 23. Cover simply to pin up. Black marking.

Supply 1 cover

Zavřít

A5023108

Cover 23, with line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

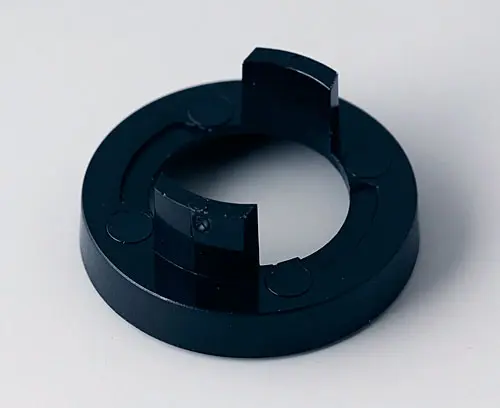

A5123000 Nut cover 23, without line

A5123000

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

Zavřít

A5123000

Nut cover 23, without line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005

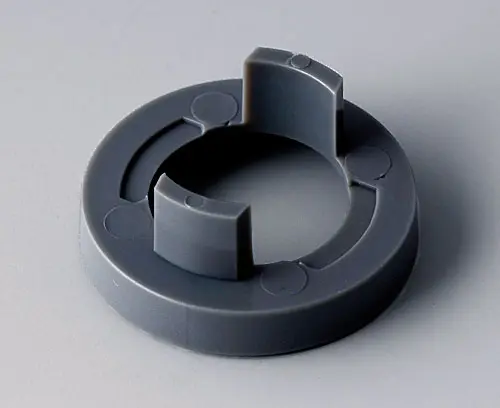

A5123008 Nut cover 23, without line

A5123008

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

Zavřít

A5123008

Nut cover 23, without line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
dusty grey RAL 7037
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zavřít

A6207009

Round nut M7 x 0.75
Produkt byl přidán do Vašeho košíku.
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zavřít

A6210009

Round nut M10 x 0.75
Produkt byl přidán do Vašeho košíku.
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zavřít

A6295009

Round nut 3/8"-32G
Produkt byl přidán do Vašeho košíku.
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Zavřít

A6300000

Spanner
Produkt byl přidán do Vašeho košíku.

Customising options for A2423040

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
23 mm
Height
16 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
