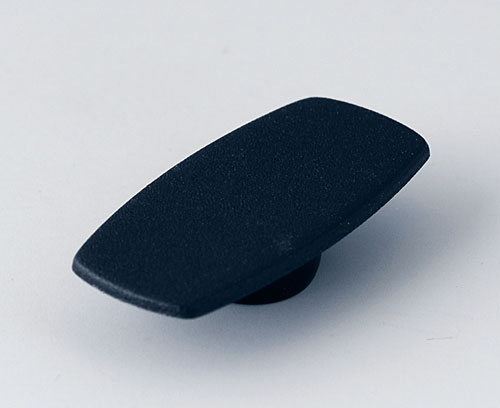

A5023000 Cover 23, without line
Posunout

A5023000

Cover 23, without line

Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply

1 cover

2D PDF Zobrazení
Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
Generovat PDF

Generovat PDF pro A5023000

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Zavřít
  • Components/Accessories
  • View Customising Options

System components to complete

A2423040 SPINDLE-SHAPED KNOB 23, with line

A2423040

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.

Supply 1 spindle-shaped knob

Zavřít

A2423040

SPINDLE-SHAPED KNOB 23, with line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
23x16mm
Otvor 4mm
A2423060 SPINDLE-SHAPED KNOB 23, with line

A2423060

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 spindle-shaped knob

Zavřít

A2423060

SPINDLE-SHAPED KNOB 23, with line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
23x16mm
Otvor 6mm
A2423068 SPINDLE-SHAPED KNOB 23, with line

A2423068

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.

Supply 1 spindle-shaped knob

Zavřít

A2423068

SPINDLE-SHAPED KNOB 23, with line
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
dusty grey RAL 7037
23x16mm
Otvor 6mm

Customising options for A5023000

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
ABS (UL 94 HB)
Barva
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,25 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
