SMART-BOX
Posunout

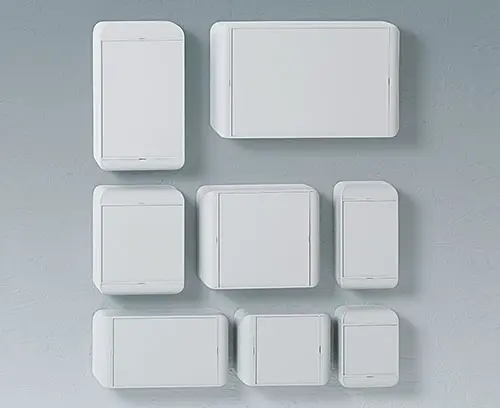

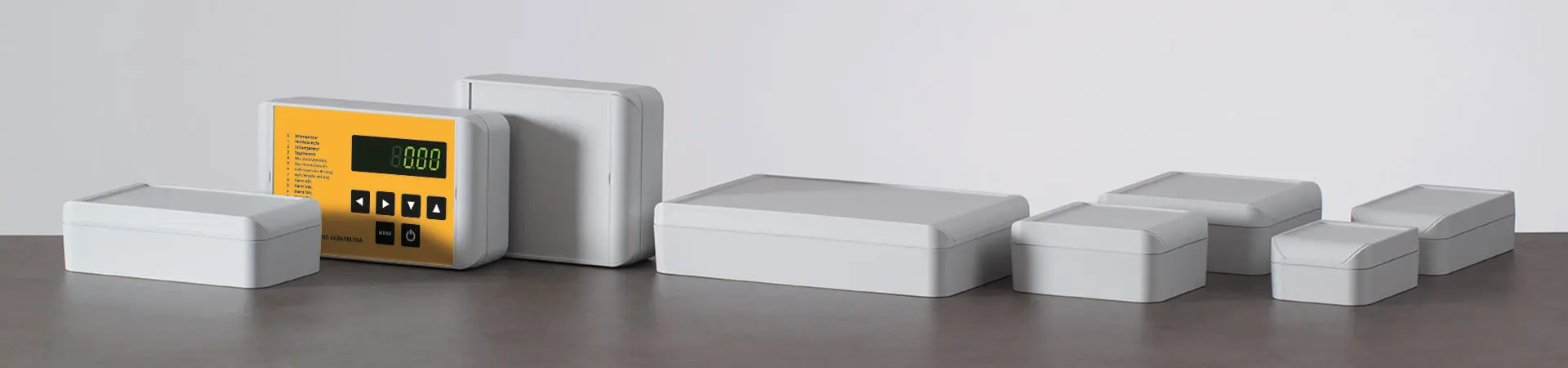

Smart-Box

Inteligentní pouzdra s IP 66

Zaoblené plochy dodávají příjemně elegantní vzhled a podtrhují reprezentativní kvality zapouzdření řady SMART-BOX.

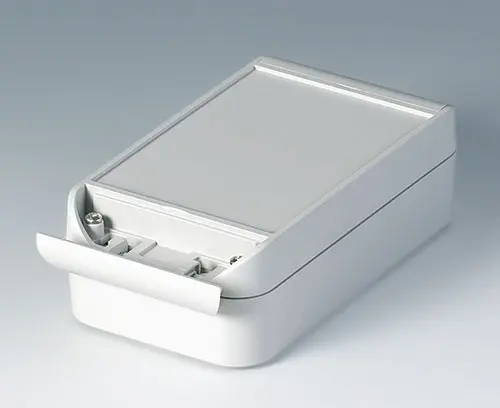

  • Přesvědčivé Design; Tvarované lišty zajišťují, že oblast šroubu je neviditelná
  • Kvalita ASA + PC (UL 94 V-0) pro vysoké nároky; také zpomalovač hoření a samozhášení

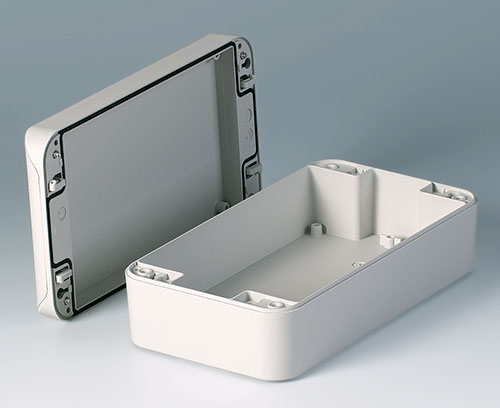

  • Vysoký stupeň ochrany IP 66 (width 90/110/130/150), IP 65 (width 170); těsnění je již vloženo do horní části
  • Kvalitní nerezové oceli skříně šrouby s vysokou odolností proti korozi - i proti agresivním médiím - přes A2 ocelové slitiny

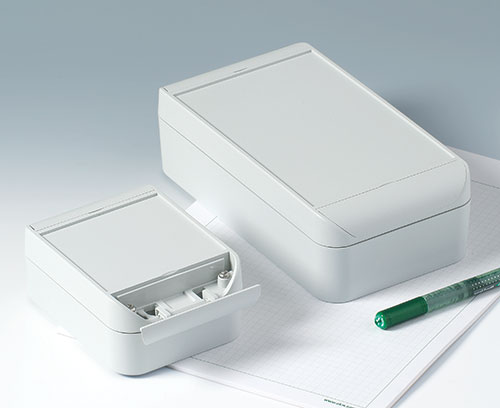

  • Lze použít jako stolní a nástěnnou skříňku

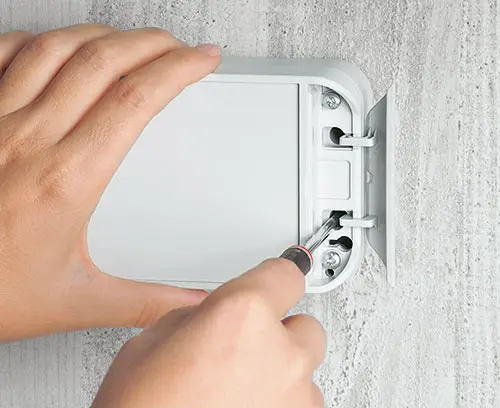

  • Skryté připevnění na stěnu pod panely

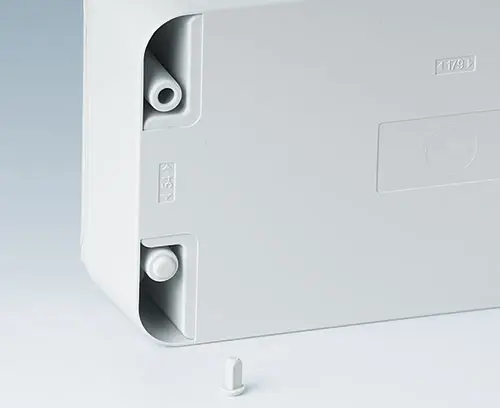

  • Bydlení nohy (příslušenství), snadno připojit, aby byla zajištěna stabilita v aplikacích tabulkových

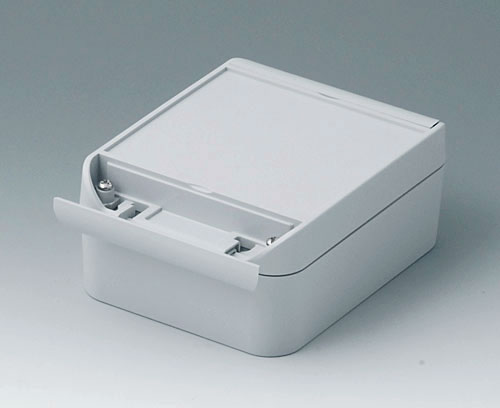

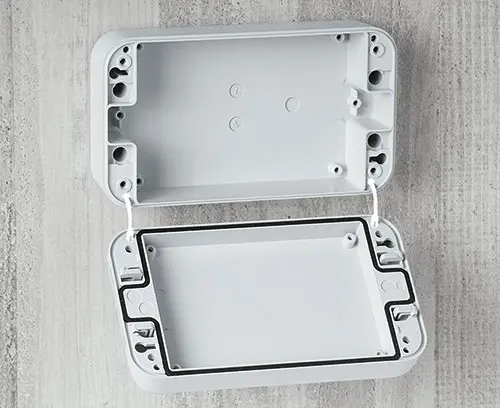

  • Zámek krytu usnadňuje veškeré montážní a servisní práce
  • Zapuštěný ovládací panel pro ochranu membránové klávesnice; další oblast štítků na spodní straně

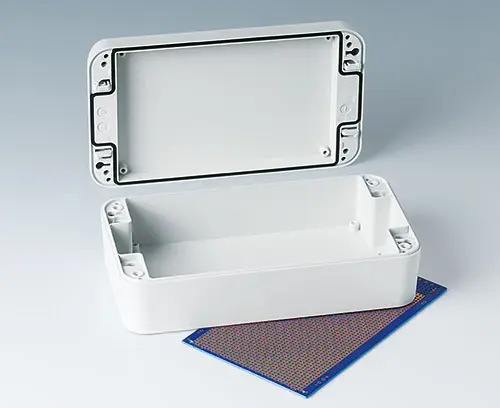

  • Upevňovací sloupky pro PCB a montážních dílů
Generovat PDF

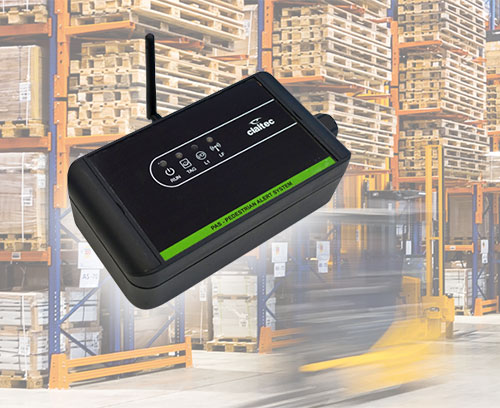

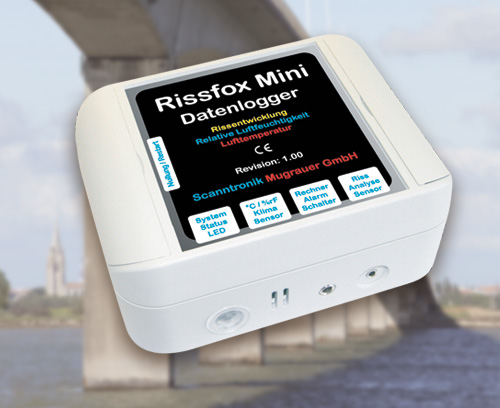

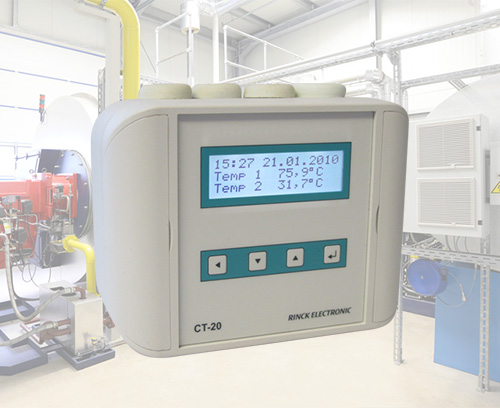

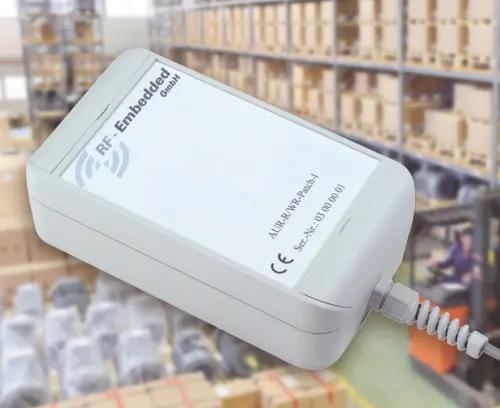

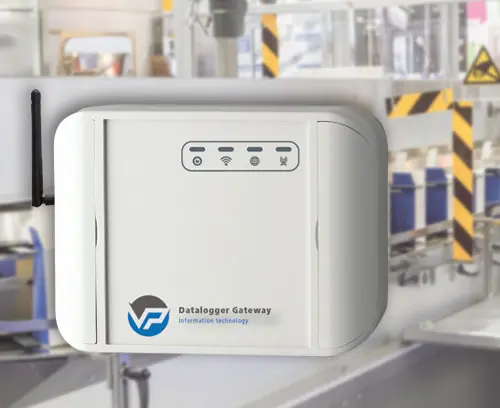

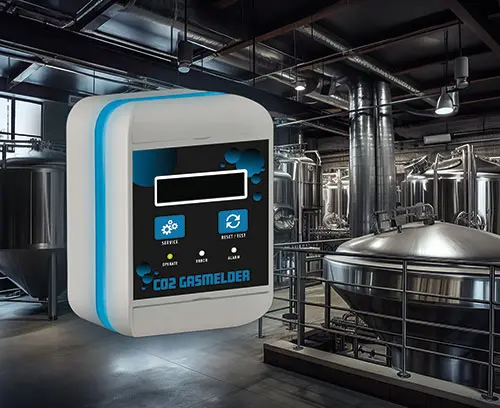

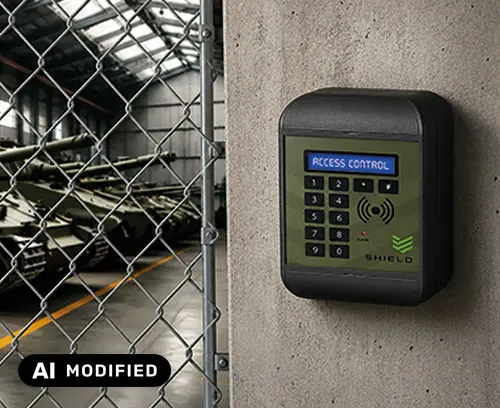

  • Příklady aplikací

Obory aplikací

Předurčeno pro elektrické a elektronické aplikace, např.

  • V topení, klimatizaci a odvětrání
  • Ovládání
  • Zabezpečení apod
  • IoT/IIoT
  • Smart Factory
  • Industry 4.0
  • Procházet celý seznam
  • Doplňky
  • Zobrazit možnosti přizpůsobení

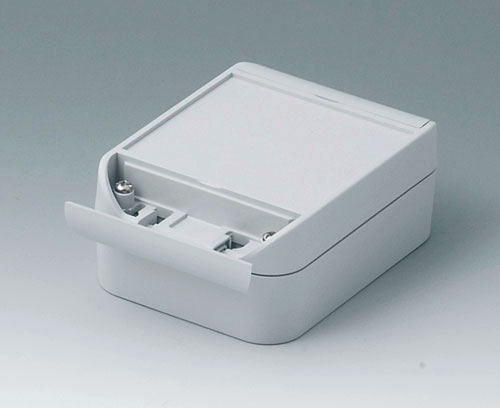

C6009121 SMART-BOX WIDTH 90

C6009121

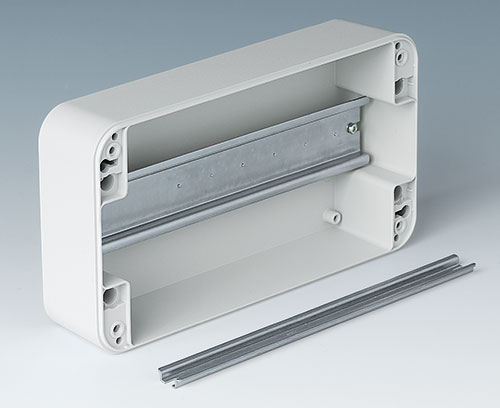

SMART-BOX WIDTH 90 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6009121

SMART-BOX WIDTH 90
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
120x90x50mm
IP 66

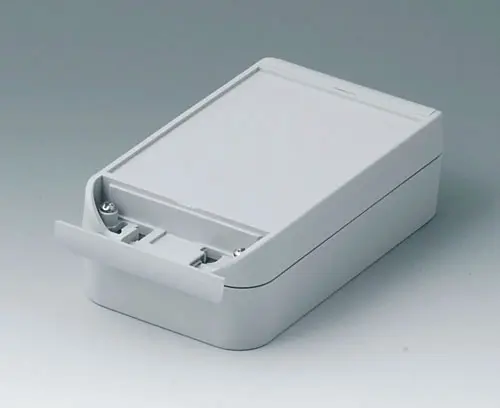

C6009161 SMART-BOX WIDTH 90

C6009161

SMART-BOX WIDTH 90 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6009161

SMART-BOX WIDTH 90
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
160x90x50mm
IP 66
C6011141 SMART-BOX WIDTH 110

C6011141

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6011141

SMART-BOX WIDTH 110
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x110x60mm
IP 66

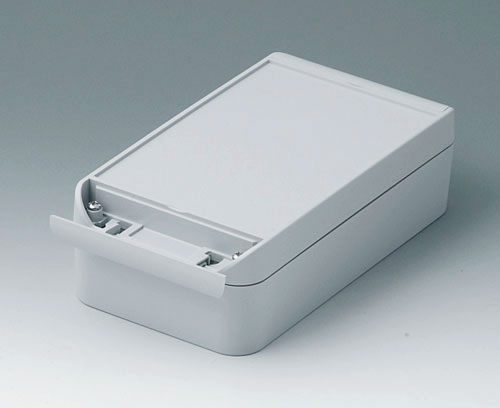

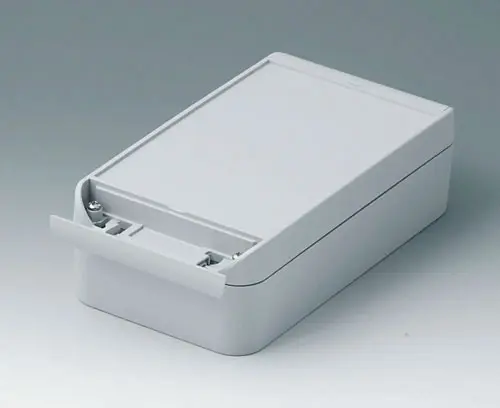

C6011201 SMART-BOX WIDTH 110

C6011201

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6011201

SMART-BOX WIDTH 110
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
200x110x60mm
IP 66
C6013161 SMART-BOX WIDTH 130

C6013161

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6013161

SMART-BOX WIDTH 130
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
160x130x60mm
IP 66

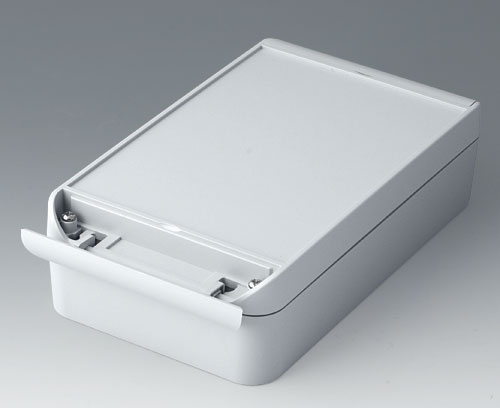

C6013221 SMART-BOX WIDTH 130

C6013221

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6013221

SMART-BOX WIDTH 130
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x130x60mm
IP 66

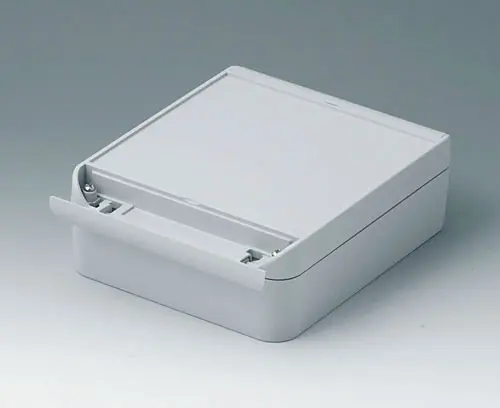

C6015181 SMART-BOX WIDTH 150

C6015181

SMART-BOX WIDTH 150 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

Zavřít

C6015181

SMART-BOX WIDTH 150
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x150x60mm
IP 66

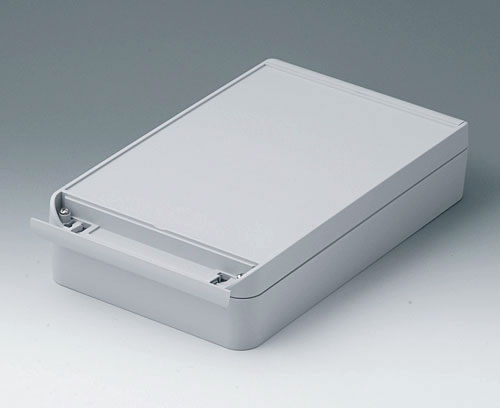

C6017281 SMART-BOX WIDTH 170

C6017281

SMART-BOX WIDTH 170 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zavřít

C6017281

SMART-BOX WIDTH 170
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
light grey RAL 7035
280x170x60mm
IP 65

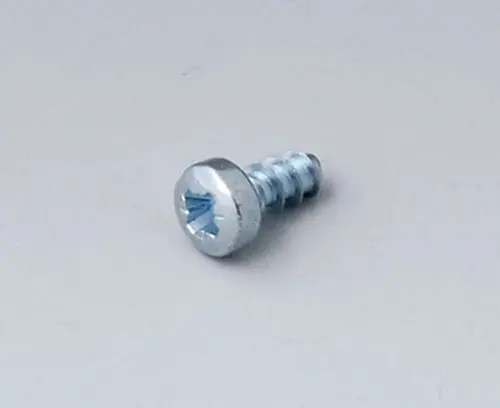

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

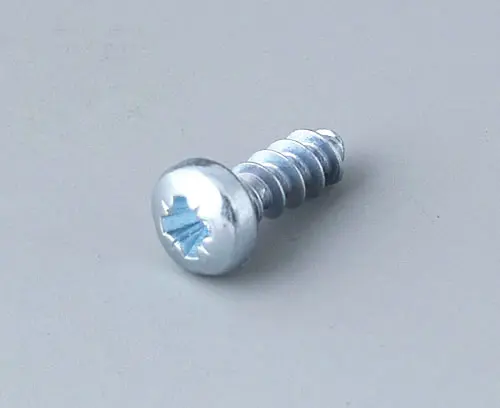

A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

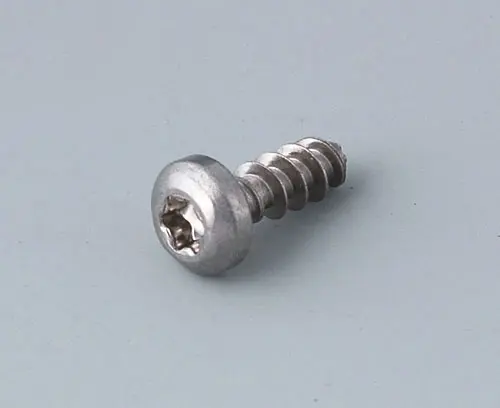

A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produkt byl přidán do Vašeho košíku.
Stainless steel
C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Zavřít

C2299018

Case feet
Produkt byl přidán do Vašeho košíku.
TPE (UL 94 HB)

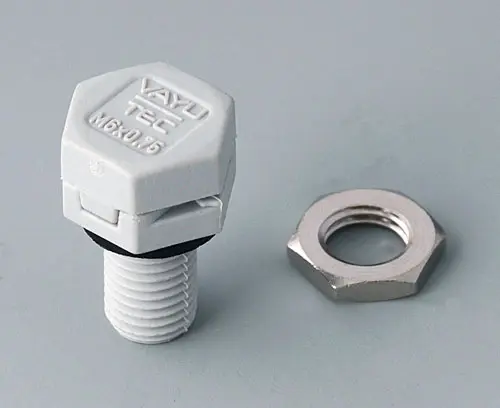

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zavřít

C2306917

Pressure equalisation element M6x0.75
Produkt byl přidán do Vašeho košíku.
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

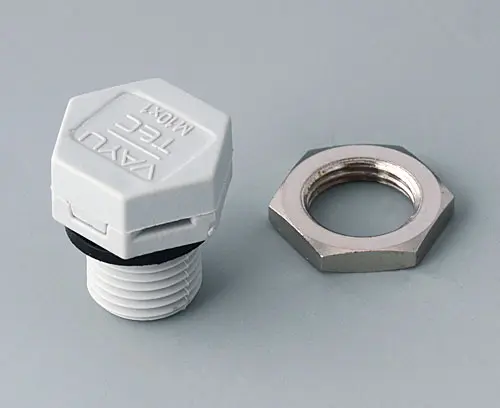

C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zavřít

C2310917

Pressure equalisation element M10x1
Produkt byl přidán do Vašeho košíku.
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

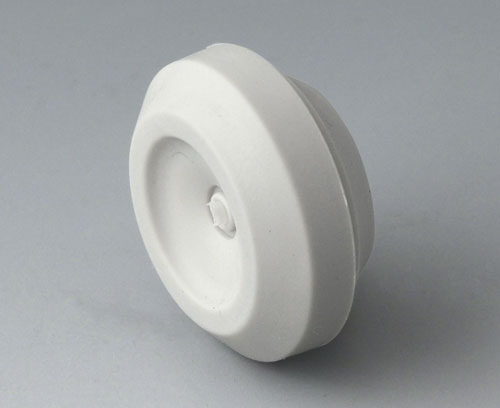

C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zavřít

C2316147

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE
light grey RAL 7035
IP 67
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zavřít

C2320137

Cable grommet
Produkt byl přidán do Vašeho košíku.
EPDM
light grey RAL 7035
IP 67

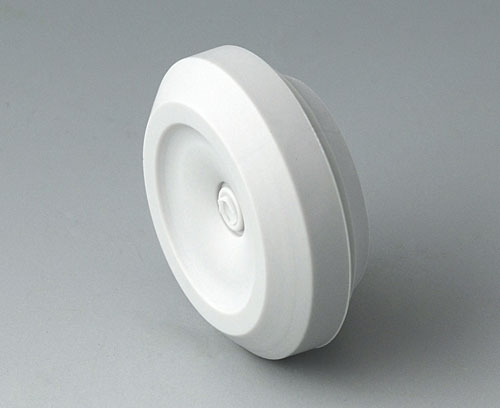

C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zavřít

C2320147

Cable grommet
Produkt byl přidán do Vašeho košíku.
TPE
light grey RAL 7035
IP 67

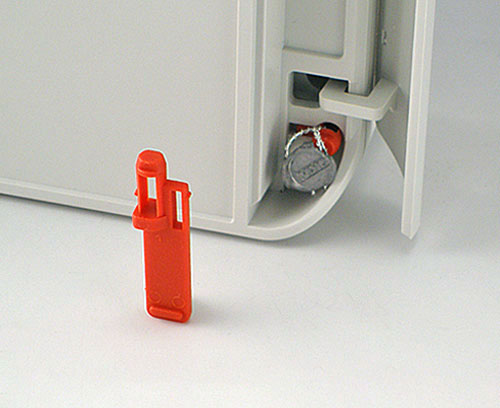

C6100006 Security plug

C6100006

Security plug For use with lead tags.

Supply 1 plug

Zavřít

C6100006

Security plug
Produkt byl přidán do Vašeho košíku.
PA 6
red

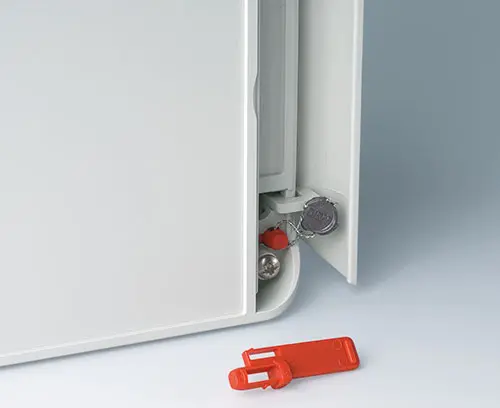

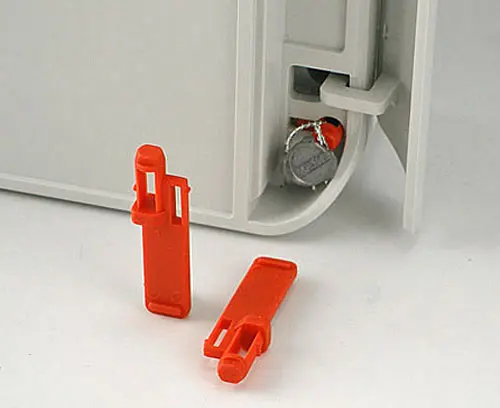

C6100016 Set of security

C6100016

Set of security For use with lead tags.

Supply 2 plugs

Zavřít

C6100016

Set of security
Produkt byl přidán do Vašeho košíku.
PA 6
red

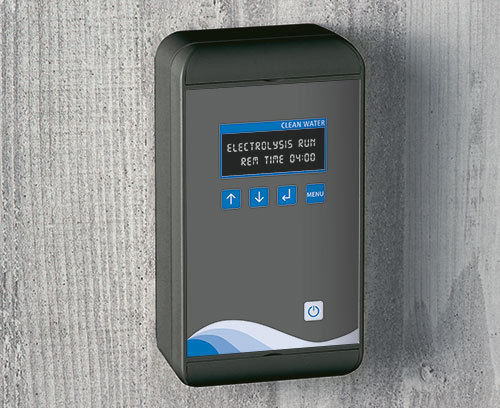

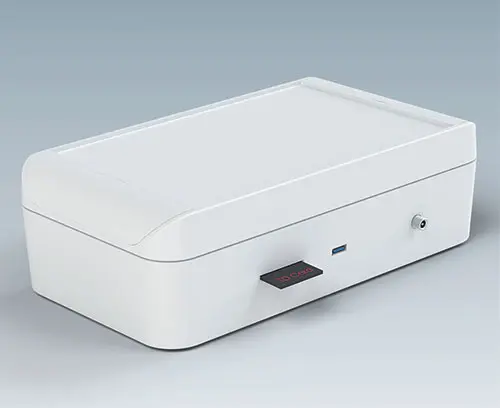

Možnosti přizpůsobení pro Smart-Box

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
