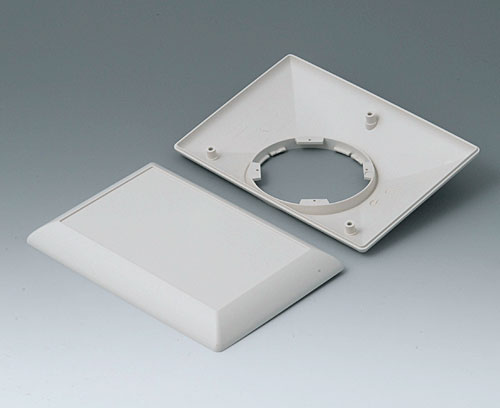

B5017207 Bottom and top part E160 F
Scroll

B5017207

Bottom and top part E160 F

Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version

Bottom part "inclined"

Supply

1 top and bottom part E160 F, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B5017207

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

System components to complete

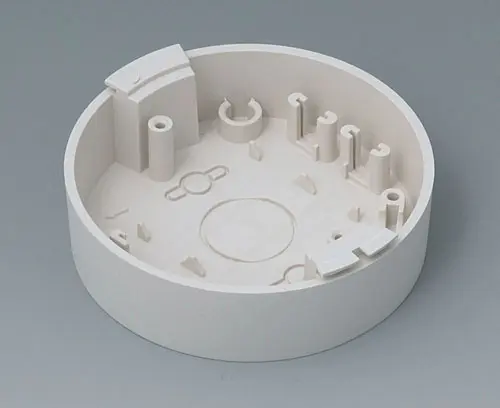

B5011117 Base

B5011117

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011117

Base
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

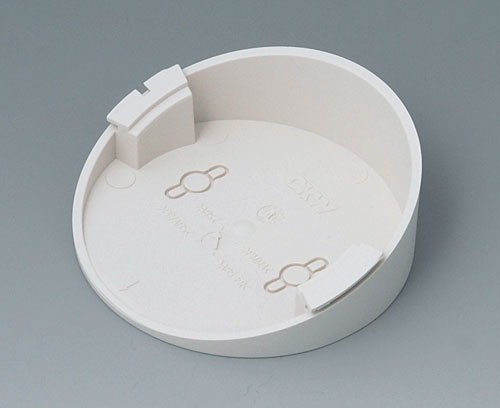

B5011217 Base 30°

B5011217

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

Close

B5011217

Base 30°
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

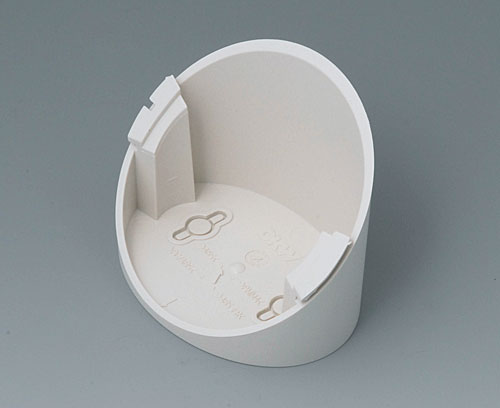

B5011317 Base 55°

B5011317

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

Close

B5011317

Base 55°
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

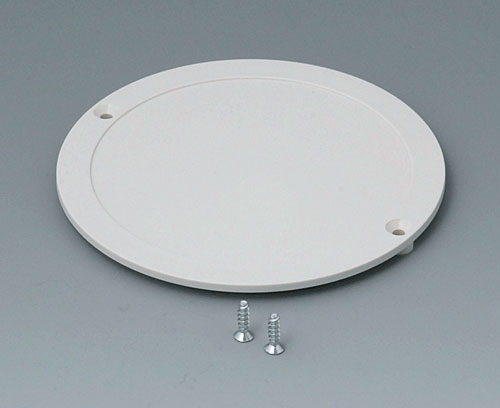

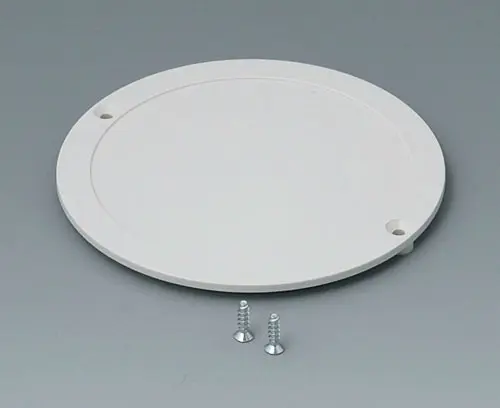

B5011847 Lid

B5011847

Lid Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply 1 lid, assembly kit

Close

B5011847

Lid
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

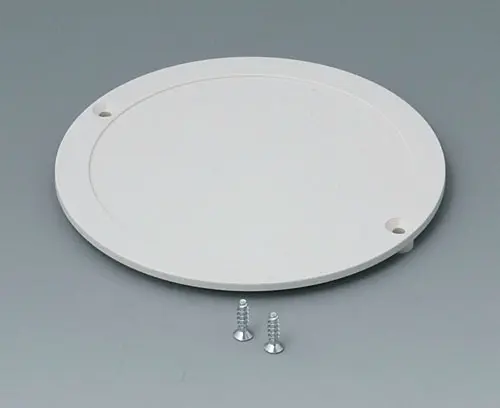

B5011857 Battery compartment lid

B5011857

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Close

B5011857

Battery compartment lid
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "battery"

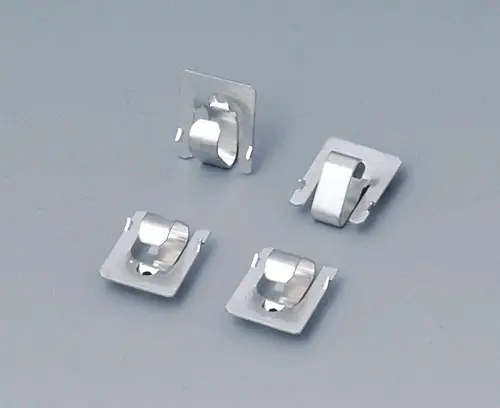

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Close

A9166001

Set of battery clips, 2 x AAA
product added to your basket
Steel
tin-plated

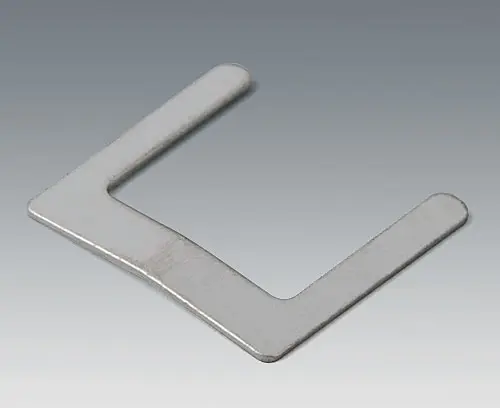

A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Close

A9166002

Battery contact, 2 x AAA
product added to your basket
Steel
tin-plated

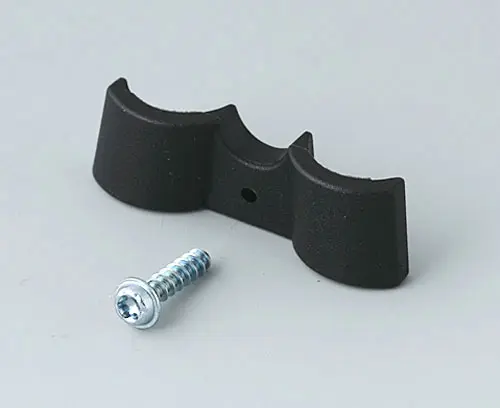

A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Close

A9166003

Battery holder, 2 x AAA
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005

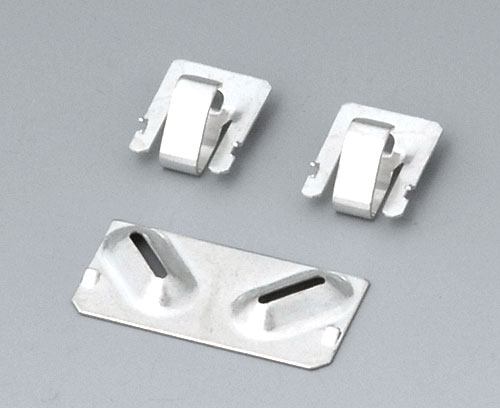

A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
product added to your basket
Steel
tin-plated

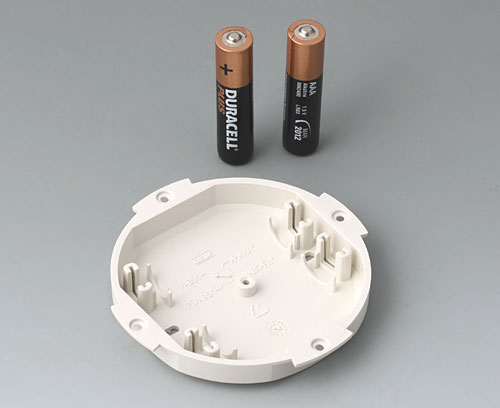

B5111107 Battery compartment, 2 x AAA

B5111107

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

Close

B5111107

Battery compartment, 2 x AAA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

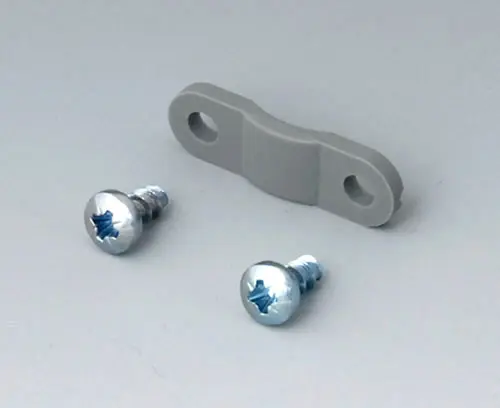

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Close

A9199005

Strain relief
product added to your basket
PA 6
volcano

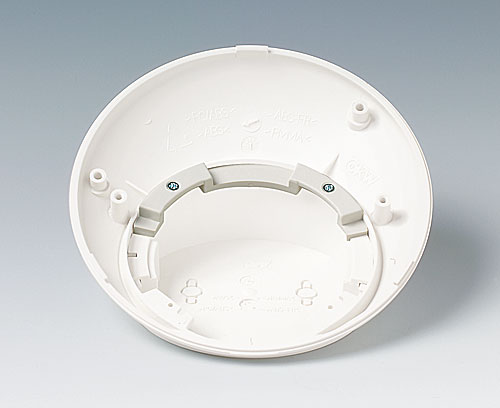

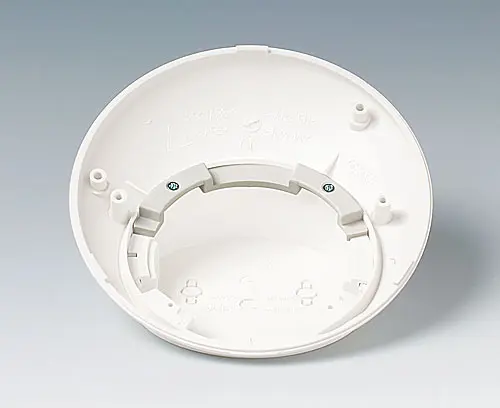

B5111707 Anti-rotation device

B5111707

Anti-rotation device To prevent the base from being removed.

Supply Anti-rotation device, incl. screws

Close

B5111707

Anti-rotation device
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "wall/holder"

B5111307 Wall mounting set

B5111307

Wall mounting set Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screw

Close

B5111307

Wall mounting set
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "screws"

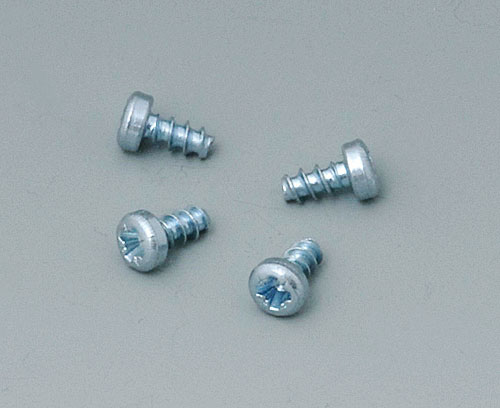

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Close

B5111201

Set of screws
product added to your basket

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

Customising options for B5017207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

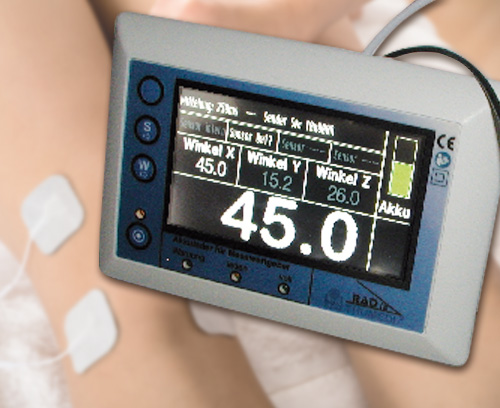

  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
160 mm
Width
110 mm
Height
38 mm
PCB length, top
144 mm
PCB width, top
78 mm
Keypad length
129 mm
Keypad width
79 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
95 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
