B6134111 Front panel
Scroll

B6134111

Front panel

Front panel for DIN-MODULAR CASE 96 x 96.

Supply

1 front panel

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6134111

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options

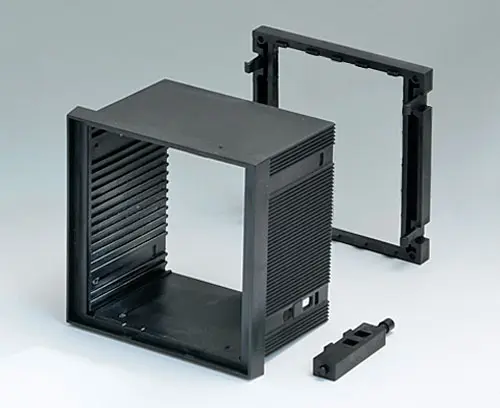

B6034011 DIN-MODULAR CASE TYPE A, Vers. I

B6034011

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6034011

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
96x96x57mm

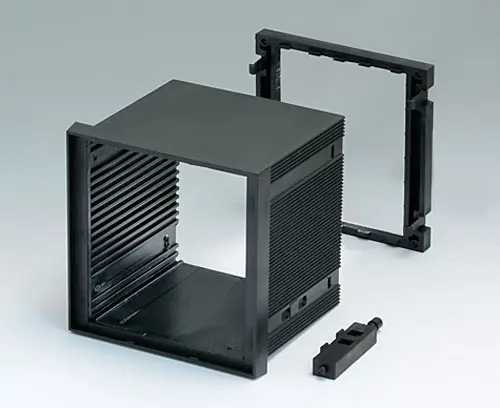

B6034021 DIN-MODULAR CASE TYPE A, Vers. I

B6034021

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6034021

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
96x96x75mm
B6034031 DIN-MODULAR CASE TYPE A, Vers. I

B6034031

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6034031

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
96x96x100mm
B6034062 DIN-MODULAR CASE TYPE A, Vers. II

B6034062

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6034062

DIN-MODULAR CASE TYPE A, Vers. II
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
96x96x124mm

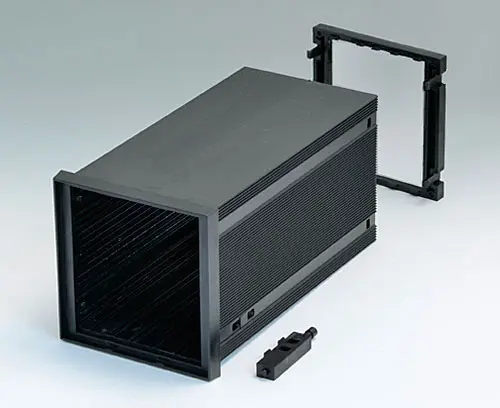

B6034102 DIN-MODULAR CASE TYPE A, Vers. II

B6034102

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6034102

DIN-MODULAR CASE TYPE A, Vers. II
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
96x96x179mm

Customising options for B6134111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Aluminium
Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Width
90.6 mm
Height
90.6 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
22 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Italy
