A9226227 Wall suspension element
Scroll

A9226227

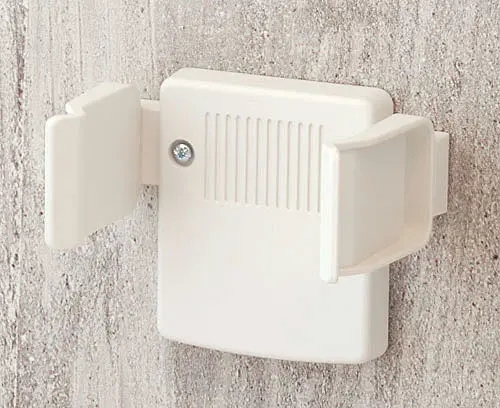

Wall suspension element

Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply

2 claps, 2 bars, 1 holder

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9226227

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
A9074107 DATEC-MOBIL-BOX M, Vers. I

A9074107

DATEC-MOBIL-BOX M, Vers. I Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074107

DATEC-MOBIL-BOX M, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
195x101x44mm
IP 65 opt.
A9074207 DATEC-MOBIL-BOX M, Vers. II

A9074207

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074207

DATEC-MOBIL-BOX M, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
195x101x44mm
IP 65 opt.
A9074307 DATEC-MOBIL-BOX M, Vers. III

A9074307

DATEC-MOBIL-BOX M, Vers. III Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for compact-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074307

DATEC-MOBIL-BOX M, Vers. III
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
195x101x44mm
IP 65 opt.
A9074407 DATEC-MOBIL-BOX M, Vers. IV

A9074407

DATEC-MOBIL-BOX M, Vers. IV Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074407

DATEC-MOBIL-BOX M, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
195x101x44mm
IP 65 opt.
A9077107 DATEC-CONTROL S, Vers. I

A9077107

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077107

DATEC-CONTROL S, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.
A9077207 DATEC-CONTROL S, Vers. II

A9077207

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077207

DATEC-CONTROL S, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.

Customising options for A9226227

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
40 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
