A9011065 FLAT-PACK CASES 100 H, Vers. I
Scroll

A9011065

FLAT-PACK CASES 100 H, Vers. I

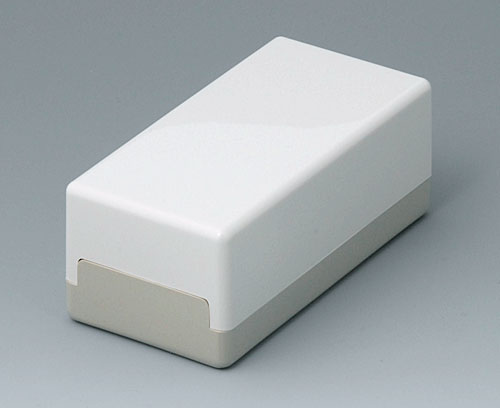

Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version

Without handle bar

Supply

1 top and base part, assembly kit and 4 screws for the mounting of PCBs

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9011065

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

A9120000 Assembly kit for wall mounting

A9120000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts
