Robust SOLID-BOX – the perfect choice for electronic displays in industrial environments

Robust SOLID-BOX – the perfect choice for electronic displays in industrial environments

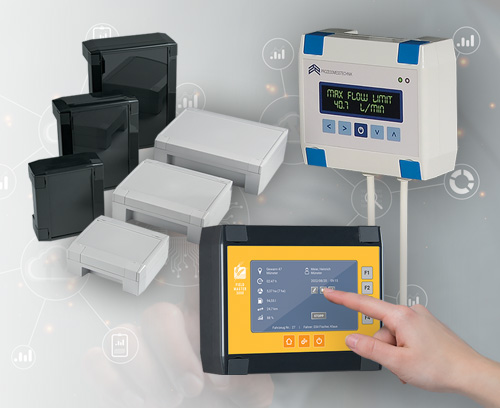

SOLID-BOX, with its robust construction and sleek design, is the perfect solution for safeguarding sensitive touchscreens and control panels in harsh environments. Featuring IK08 impact protection and a high IP66/67 protection rating, the name of this display housing perfectly captures its essence: an absolutely solid enclosure for demanding environments. The choice of material further underscores its durability: the OKW product range is made from high-quality, flame-retardant PC+ABS-FR with improved heat resistance (Vicat/B 120 = 110°C). Additionally, the material is UL registered (94 V-0 from 1.5 mm) and has passed glow-wire testing (GWFI) at 960°C for 2.0 mm thickness. Available from stock in three sizes (135 x 115 x 50 mm, 180 x 145 x 60 mm, 225 x 175 x 70 mm) and two standard colours (light grey/RAL 7035 and anthracite grey/RAL 7016), the SOLID-BOX is versatile enough for a wide range of applications.

The SOLID-BOX offers plenty of space for components inside and also has a large, recessed control panel on the top. Pre-moulded mounts for VESA brackets (version 145 for VESA with 75 x 75 mm, version 175 for 100 x 100 mm) also enable simple wall mounting for the larger versions. With the optional housing feet (accessory), it can also be used as a table-top application with a secure stand.

The OKW housing stands out in many areas with its sophisticated design. For instance, contour-flush design panels are used to conceal the captive, rust-proof Torx screws and ensure a clean and professional appearance. Additionally, recessed surfaces in the lower part enable the protected installation of interfaces, plugs and switches.

Touchscreens, electronic displays, and control panels require enclosures that provide protection and enhance the user experience. The SOLID-BOX meets these high standards with its ergonomic design and superior craftsmanship. Whether used as an interface device, operating interface, or HMI application, this robust yet elegant enclosure fulfils all the demands of modern electronics packaging in industrial environments and protected outdoor areas.

Link website SOLID-BOX
