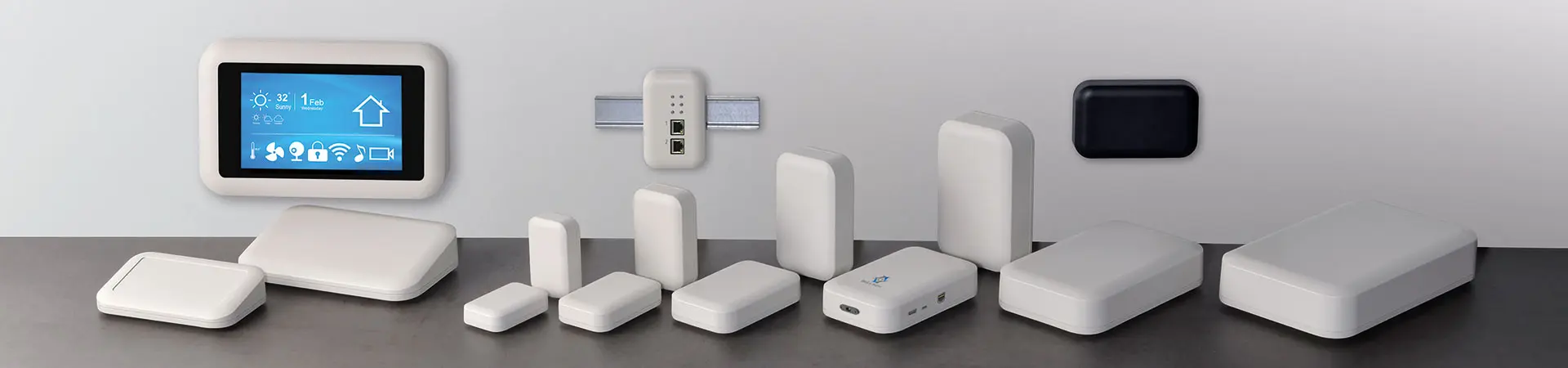

Evotec

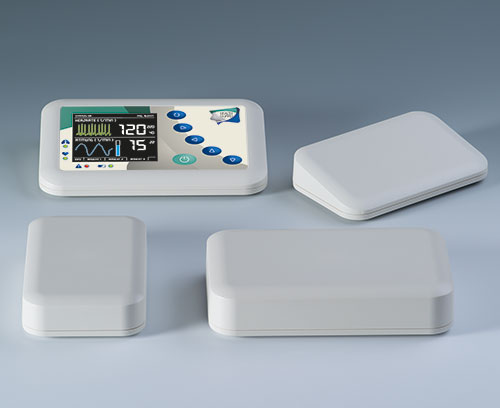

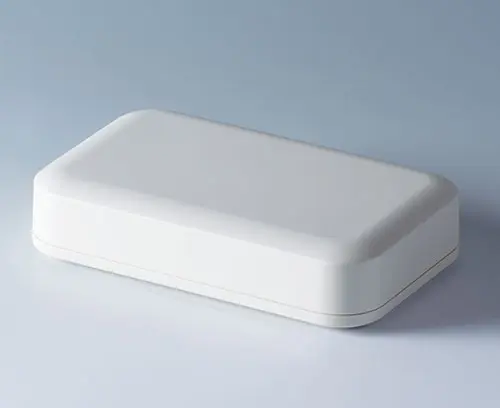

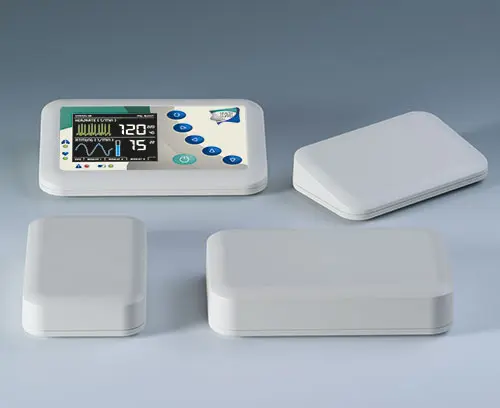

Designer table-top plastic enclosures

With its robust construction and attractive design the EVOTEC enclosures range is ideal for tough working environments. Different operating faces offer enormous scope for your design.

  • soft contours provide an elegant appearance

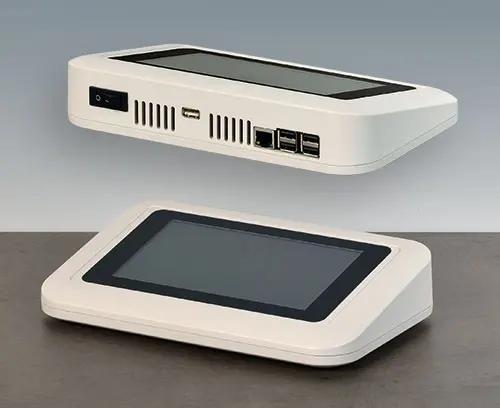

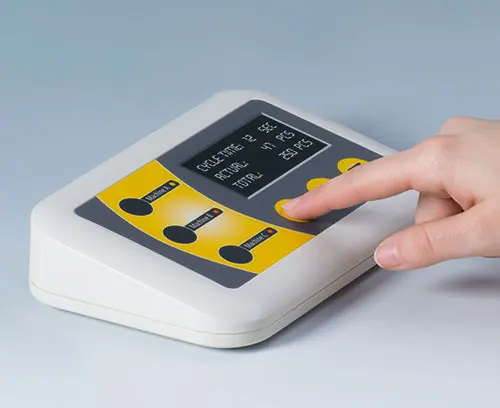

  • choose between two versions: with a flat top part and desktop versions with the operating area ergonomically inclined by 12°

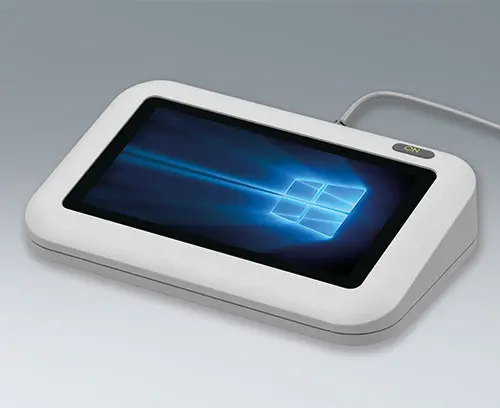

  • large operating area in the top panel for switches, pushbuttons and touch displays

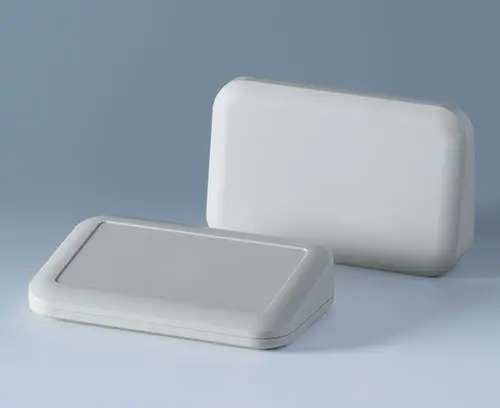

  • desktop version with smooth top or with a recessed area for protecting a membrane keypad or decor foil

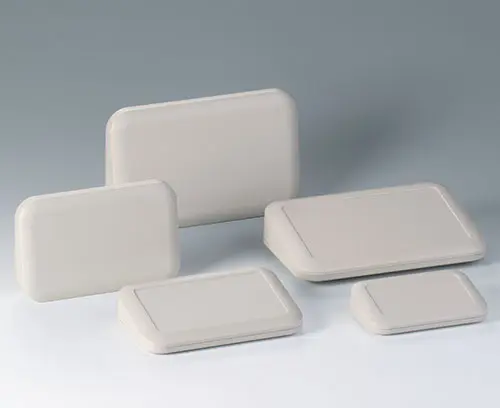

  • Evotec sizes

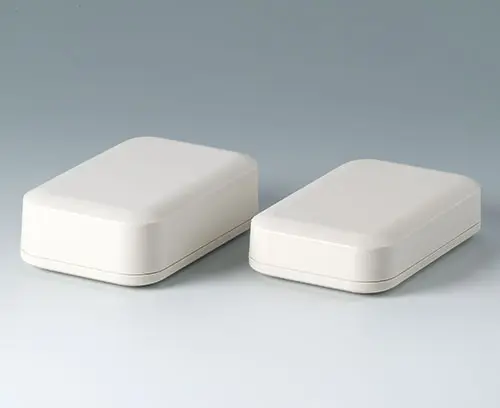

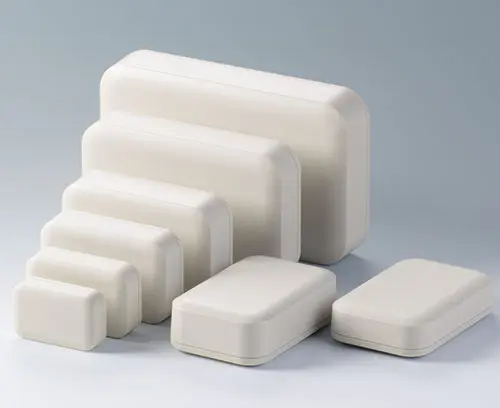

    with flat top part: sizes 80, 100, 125, 150, 200 and 250
    desktop versions: sizes 150, 200 and 250

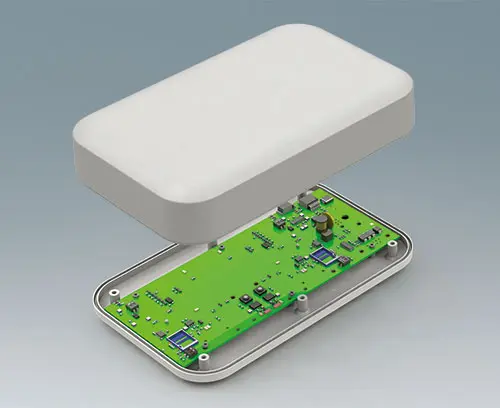

  • screw pillars provided in the top and bottom parts for fitting PCBs
  • moulded in high-quality UV-stable ASA+PC-FR plastic in off-white (RAL 9002) as standard
  • tough design with a high degree of stability

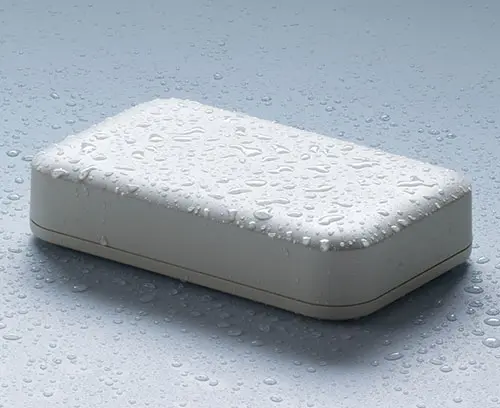

  • seal for protection class IP 65 available as an accessory
  • rubber feet ensure stable positioning on desktops and flat surfaces
  • cases assembled with Torx drive stainless steel screws
Generate PDF
  • Video
  • Application Examples

Application fields

  • Measurement and control engineering
  • Control technology

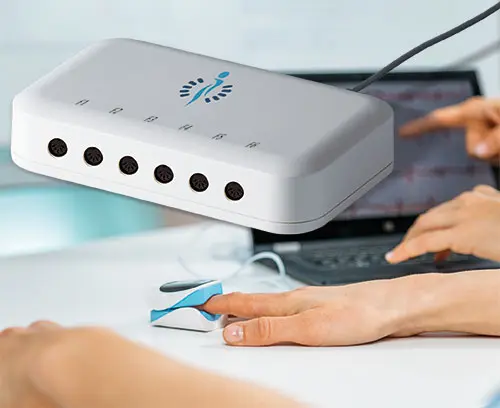

  • Medical and laboratory technology
  • Environmental technology
  • Information technology
  • IoT/IIoT
  • Gateways
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your basket
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your basket
A9500030 Sealing 80

A9500030

Sealing 80 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9500030

Sealing 80
product added to your basket
A9502030 Sealing 100

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9502030

Sealing 100
product added to your basket
A9503030 Sealing 125

A9503030

Sealing 125 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9503030

Sealing 125
product added to your basket
A9504030 Sealing 150

A9504030

Sealing 150 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9504030

Sealing 150
product added to your basket

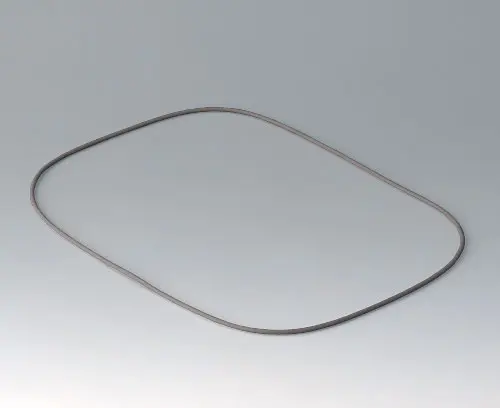

A9506030 Sealing 200

A9506030

Sealing 200 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9506030

Sealing 200
product added to your basket

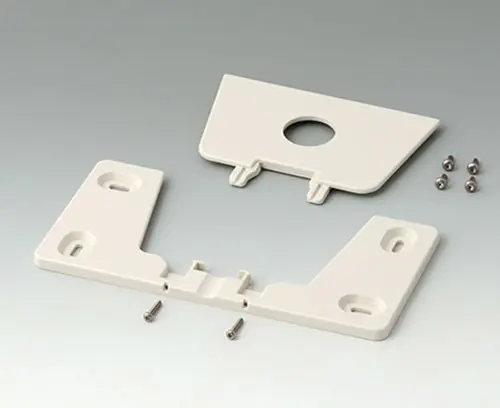

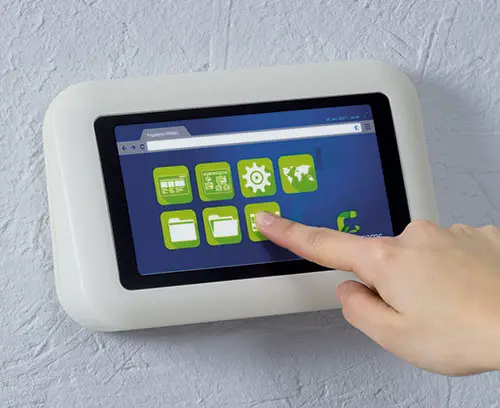

A9506117 Wall suspension element

A9506117

Wall suspension element Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.

Supply 1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws

Close

A9506117

Wall suspension element
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002

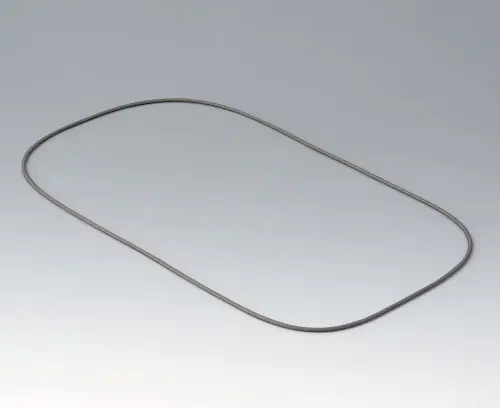

A9508030 Sealing 250

A9508030

Sealing 250 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9508030

Sealing 250
product added to your basket

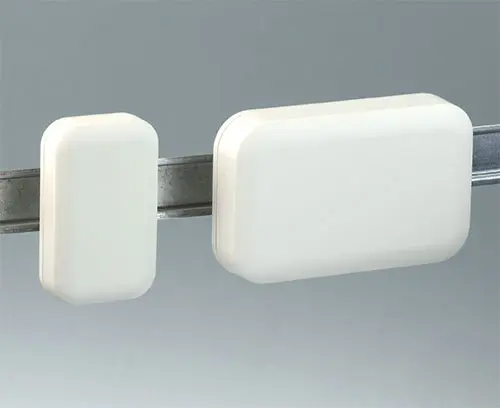

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Close

B1300017

Fastening element for DIN-Rails
product added to your basket
PA 6
off-white RAL 9002

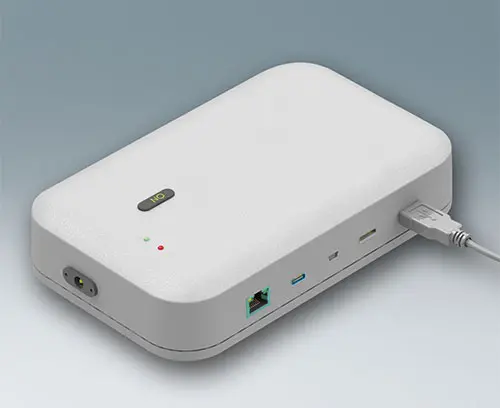

Customising options for Evotec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
