A9406344 SHELL-TYPE CASES V 110, Vers. II
Scroll

A9406344

SHELL-TYPE CASES V 110, Vers. II

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment for 1 x 9 V flat battery (PP3)

Supply

1 top and base part, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9406344

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory to complete

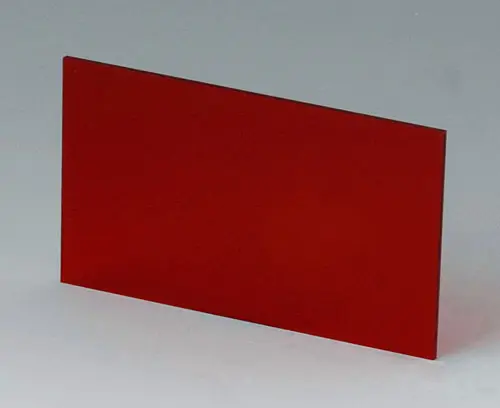

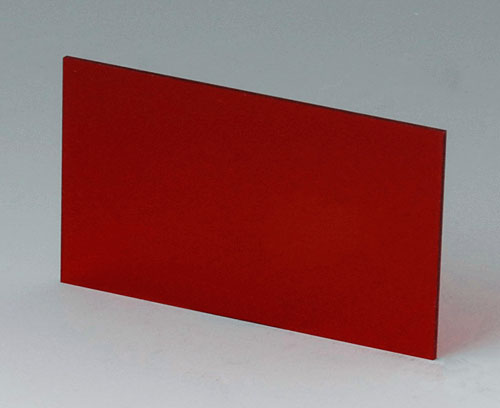

A9106123 Front / rear panel V 110

A9106123

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

Close

A9106123

Front / rear panel V 110
product added to your basket
Acrylic glass
red transparent
59.3x37x1mm

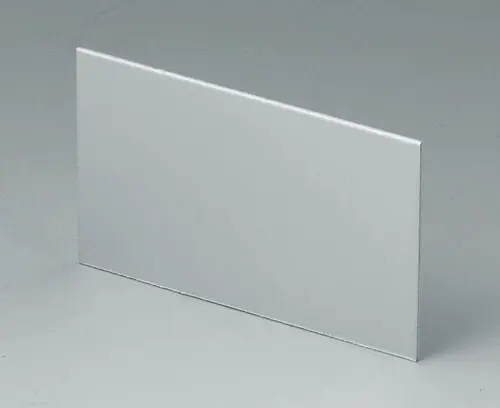

A9107121 Front / rear panel V 110

A9107121

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

Close

A9107121

Front / rear panel V 110
product added to your basket
Aluminium
matt anodised
59.3x37x1mm

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your basket

Accessory "protection"

A9106095 Contact-strips V, G 110

A9106095

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9106095

Contact-strips V, G 110
product added to your basket
Aluminium

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

Customising options for A9406344

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
72 mm
Depth
114 mm
Height
45 mm
PCB length, base
69 mm
PCB width, base
54 mm
PCB length, top
98 mm
PCB width, top
54 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
89 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
