A4140007 Cover 40, without line
Scroll

A4140007

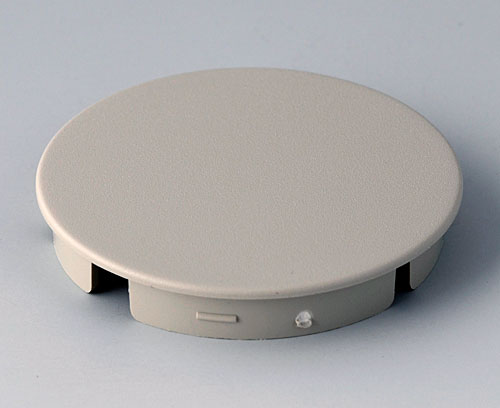

Cover 40, without line

Suitable for round knobs 40. Cover simply to pin up.

Supply

1 cover

Plano 2D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A4140007

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

System components to complete

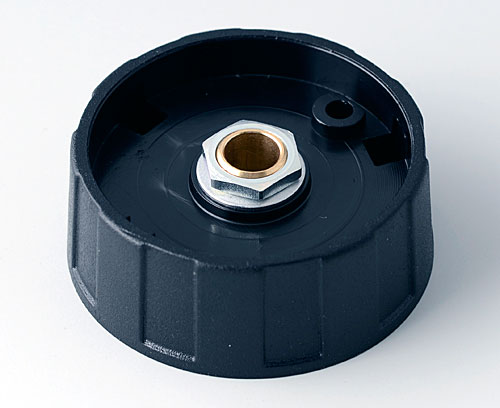

A2540060 ROUND KNOB 40, without line

A2540060

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Cerrar

A2540060

ROUND KNOB 40, without line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Orificio de eje 6mm
A2540068 ROUND KNOB 40, without line

A2540068

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Cerrar

A2540068

ROUND KNOB 40, without line
Producto añadido a su lista
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Orificio de eje 6mm
A2540080 ROUND KNOB 40, without line

A2540080

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,8 Nm, function = 1,8 Nm.

Supply 1 round knob

Cerrar

A2540080

ROUND KNOB 40, without line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Orificio de eje 8mm
A2640060 ROUND KNOB 40, with line

A2640060

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Cerrar

A2640060

ROUND KNOB 40, with line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Orificio de eje 6mm
A2640068 ROUND KNOB 40, with line

A2640068

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Cerrar

A2640068

ROUND KNOB 40, with line
Producto añadido a su lista
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Orificio de eje 6mm

Customising options for A4140007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1,7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
