A9404333 SHELL-TYPE CASES V 85, Vers. I
Scroll

A9404333

SHELL-TYPE CASES V 85, Vers. I

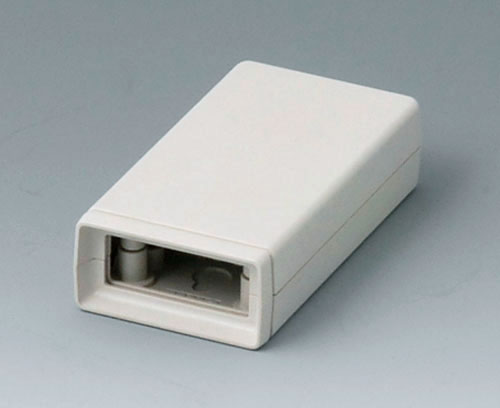

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9404333

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory to complete

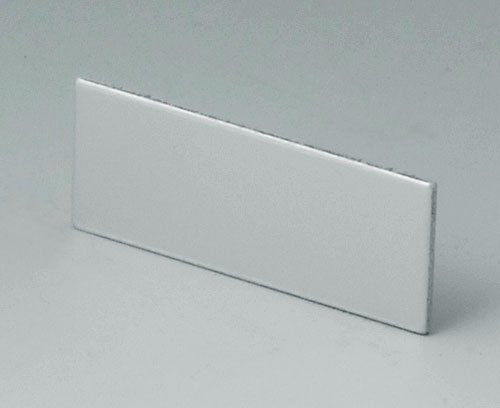

A9104111 Front / rear panel V 85

A9104111

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Cerrar

A9104111

Front / rear panel V 85
Producto añadido a su lista
Aluminium
matt anodised
36x14,6x1mm

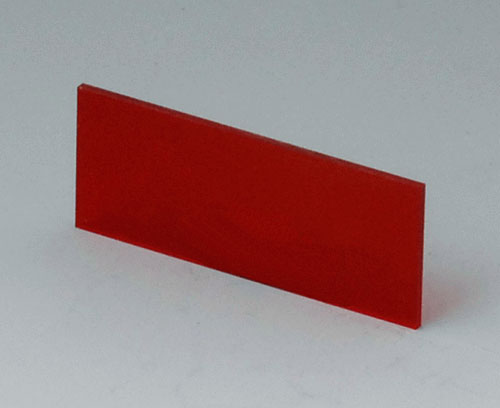

A9104113 Front / rear panel V 85

A9104113

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Cerrar

A9104113

Front / rear panel V 85
Producto añadido a su lista
Acrylic glass
red transparent
36x14,6x1mm

Accessory "protection"

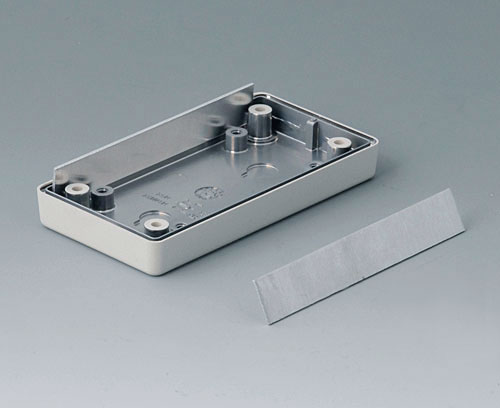

A9104073 Contact-strips V, G 85

A9104073

Contact-strips V, G 85 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Cerrar

A9104073

Contact-strips V, G 85
Producto añadido a su lista
Aluminium

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Cerrar

A9100001

Ring eyelet
Producto añadido a su lista
PA 6
volcano

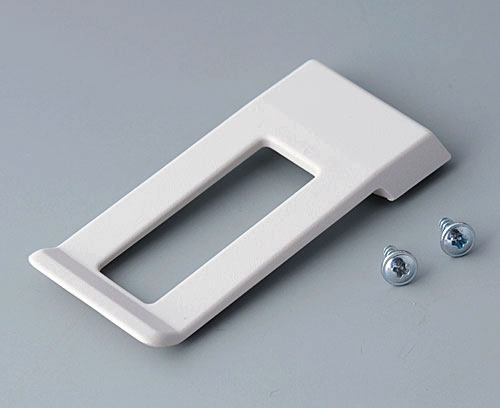

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Cerrar

A9172107

Belt/Pocket clip
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent

Customising options for A9404333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
45 mm
Depth
85 mm
Height
22 mm
PCB length, base
71 mm
PCB width, base
38 mm
PCB length, top
71 mm
PCB width, top
38 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
