Fijación y soporte de pared
Scroll

Fijación y soporte de pared

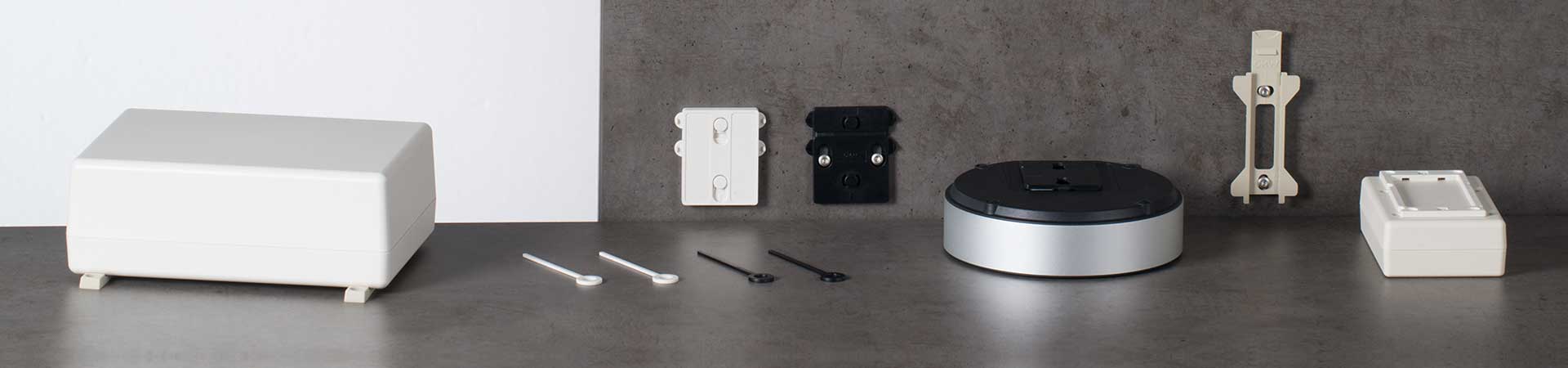

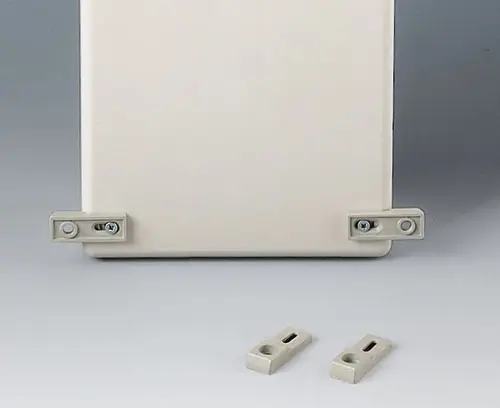

Juegos de anclajes a pared universales u orejetas de fijación externas para las cajas pequeñas de plástico.

Crear PDF
  • Selección de todos los artículos
  • Modificaciones específicas del cliente
A9204108 Wall mounting brackets

A9204108

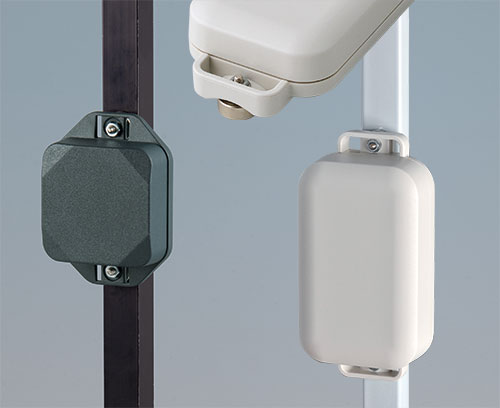

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Cerrar

A9204108

Wall mounting brackets
Producto añadido a su lista
PA 6
pebble grey RAL 7032

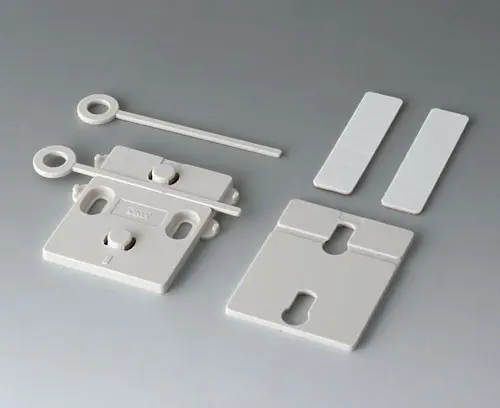

A9305017 Wall suspension elements

A9305017

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Cerrar

A9305017

Wall suspension elements
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002

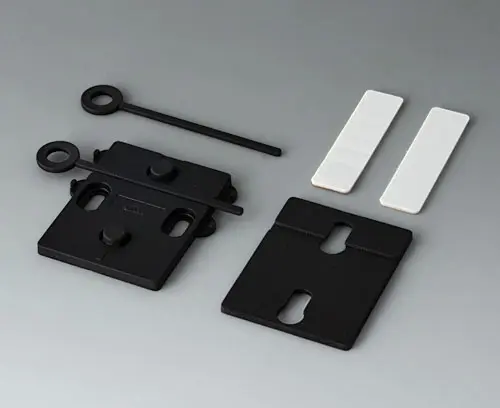

A9305019 Wall suspension elements

A9305019

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Cerrar

A9305019

Wall suspension elements
Producto añadido a su lista
ASA+PC (UL 94 V-0)
black RAL 9005

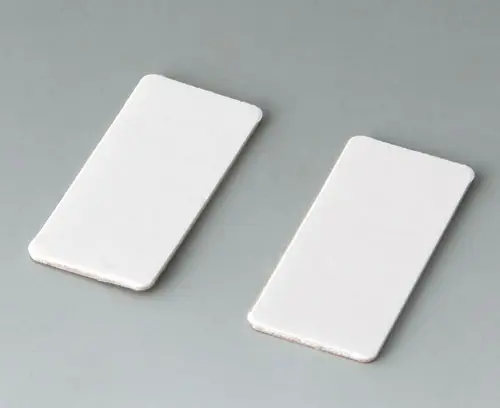

A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

Cerrar

A9305147

Adhesive foil holder
Producto añadido a su lista
B1350048 Wall suspension elements

B1350048

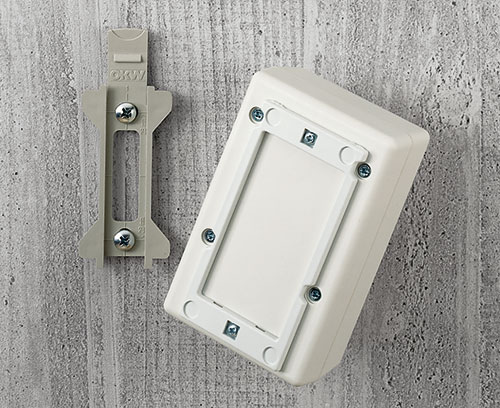

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Cerrar

B1350048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Cerrar

B1360048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032

Opciones de productos para Fijación y soporte de pared

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
