B4213107 CARRYTEC L
Scroll

B4213107

CARRYTEC L

Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply

Top and bottom parts, TPE handle pad, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B4213107

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "battery"

A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Cerrar

A9338117

Battery compartment kit, 5 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

Accessory "station"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178007

Contacts, male
Producto añadido a su lista
gold-plated

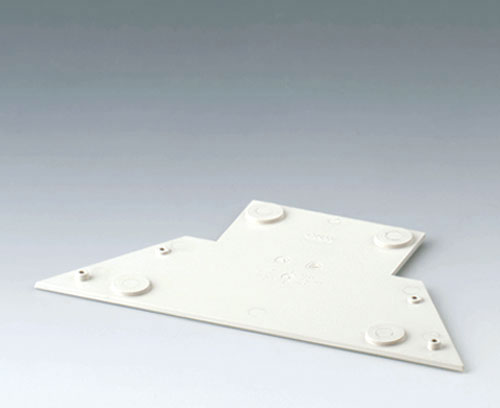

B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Cerrar

B4308127

Base plate for station
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
B4313117 Station L

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Cerrar

B4313117

Station L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
B4313147 Adapter for Station L

B4313147

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Cerrar

B4313147

Adapter for Station L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

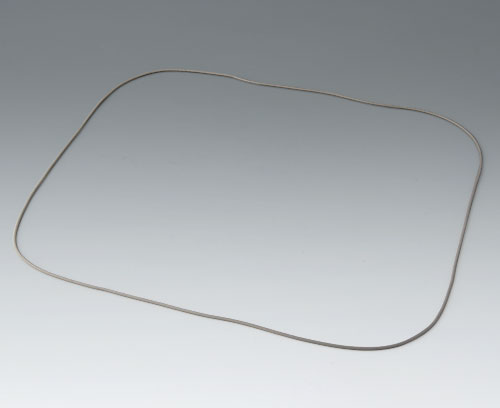

B4313001 Sealing L

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

Cerrar

B4313001

Sealing L
Producto añadido a su lista

Accessory "wall/holder"

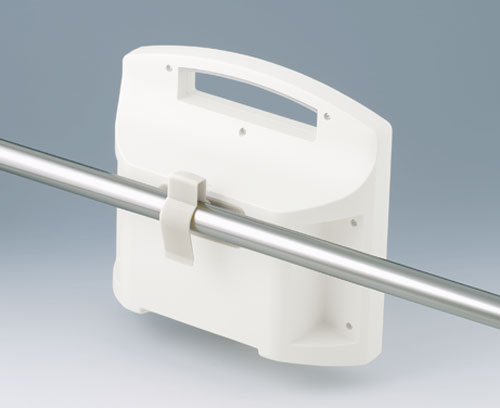

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Cerrar

B4308237

Holding clamps
Producto añadido a su lista
PA 6
off-white RAL 9002

Accessory "screws"

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
Producto añadido a su lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178007

Contacts, male
Producto añadido a su lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178008

Contacts, female
Producto añadido a su lista
gold-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Cerrar

A9193042

Mounting plates for contacts
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Cerrar

A9193044

Contacting kit, 6-pin
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

Customising options for B4213107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Ejemplos de aplicación
  • Purchasing Data
Material
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Handle pad
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Color
Enclosure off-white RAL 9002,
Handle pad volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
348 mm
Height
303 mm
Depth
117 mm
PCB length, base
310 mm
PCB width, base
213 mm
PCB length, top
305 mm
PCB width, top
216 mm
Keypad length
284,5 mm
Keypad width
209,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1121 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
