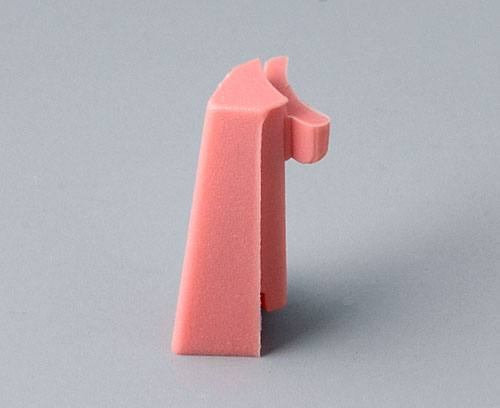

A3316003 Peak 16
Scroll

A3316003

Peak 16

Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply

1 marking element "Peak"

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A3316003

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados

System components to complete

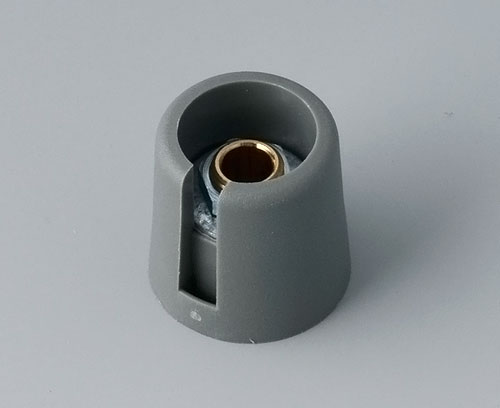

A3016048 COM-KNOBS 16, with recess

A3016048

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016048

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
volcano
16x16mm
Orificio de eje 4mm
A3016049 COM-KNOBS 16, with recess

A3016049

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016049

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
nero
16x16mm
Orificio de eje 4mm

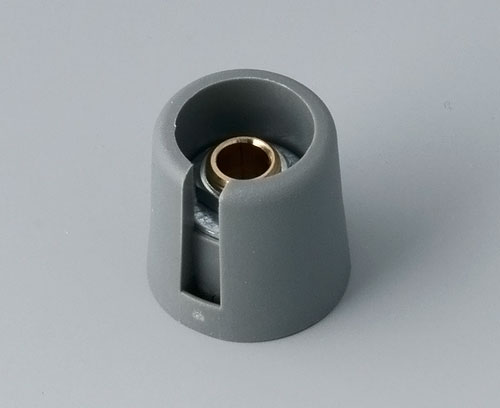

A3016068 COM-KNOBS 16, with recess

A3016068

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016068

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
volcano
16x16mm
Orificio de eje 6mm
A3016069 COM-KNOBS 16, with recess

A3016069

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016069

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
nero
16x16mm
Orificio de eje 6mm
A3016638 COM-KNOBS 16, with recess

A3016638

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016638

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
volcano
16x16mm
Orificio de eje 1/4″
A3016639 COM-KNOBS 16, with recess

A3016639

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Cerrar

A3016639

COM-KNOBS 16, with recess
Producto añadido a su lista
PA 6
nero
16x16mm
Orificio de eje 1/4″
  • Datos técnicos
  • Purchasing Data
Material
PA 6
Color
coral
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0,23 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
