A9077109 DATEC-CONTROL S, Vers. I
Scroll

A9077109

DATEC-CONTROL S, Vers. I

Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version

With closed operating area, recess: 1.7 mm deep

Supply

Top and base part, battery compartment lid, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9077109

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9177310

Battery compartment, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Cerrar

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "station"

A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Cerrar

A9177139

Station S
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178007

Contacts, male
Producto añadido a su lista
gold-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Cerrar

A9199005

Strain relief
Producto añadido a su lista
PA 6
volcano

Accessory "protection"

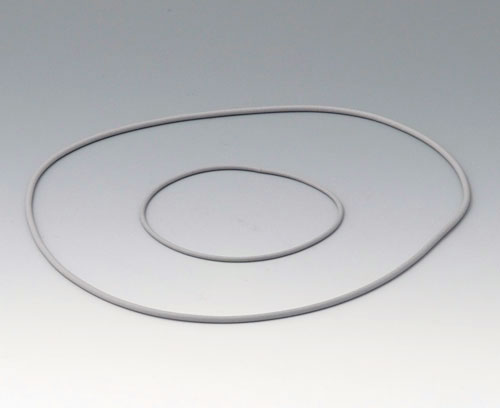

A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

Cerrar

A9177006

Sealing kit S
Producto añadido a su lista
A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Cerrar

A9177008

Protector S
Producto añadido a su lista
SBS (TPE)
volcano

Accessory "wall/holder"

A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226229

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

Accessory

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Cerrar

A9178008

Contacts, female
Producto añadido a su lista
gold-plated

Customising options for A9077109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos

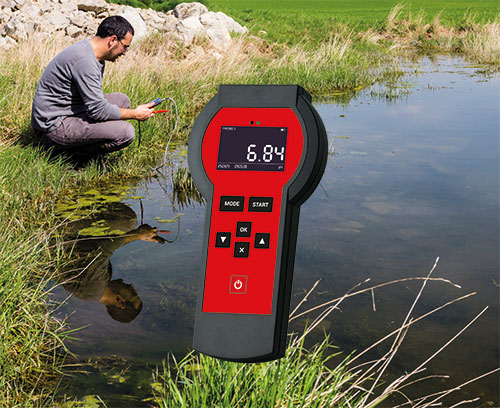

  • Ejemplos de aplicación
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
228 mm
Width
117 mm
Height
47 mm
PCB length, base
214 mm
PCB width, base
62 mm
PCB length, top
213 mm
PCB width, top
60 mm
Keypad length
169,5 mm
Keypad width
59,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
206 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
